Professional Semi Automatic Bottle Label Applicator 220V / 50HZ

Basic Information
Place of Origin: GUANGZHOU ,CHINA
Brand Name: TZ
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: wooden standard packing
Delivery Time: 7-55 work days.
Payment Terms: L/C, T/T, Western Union
Application: Beverage, Medical, Chemical Type: Bottle Labeling Machine
Driven Type: Electric Power: 100W
Voltage: 220V / 50HZ Weight: About 35kg
High Light:

semi auto labeling machine

,

flat bottle labeling machine

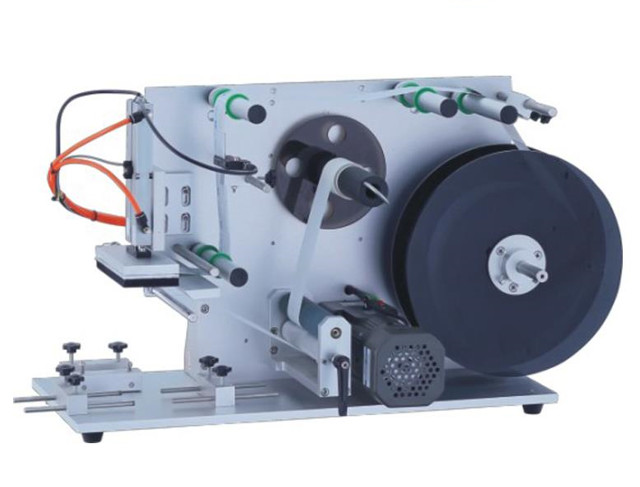

Semi-automatic plane surface labeler



Working principle

The core working principle:

the sensor detects that the product is in place or the foot sends out the product in-position signal, the suction head of the suction label drops the label and overwrites the label, and then returns to the original position to adsorb the next label, waiting for the next labeling signal, a label The attach action is completed.

Operation process: put the product -> determine the position (equipment detection control or manual control) -> labeling and labeling (automatic realization of the equipment) -> remove the labeled product.

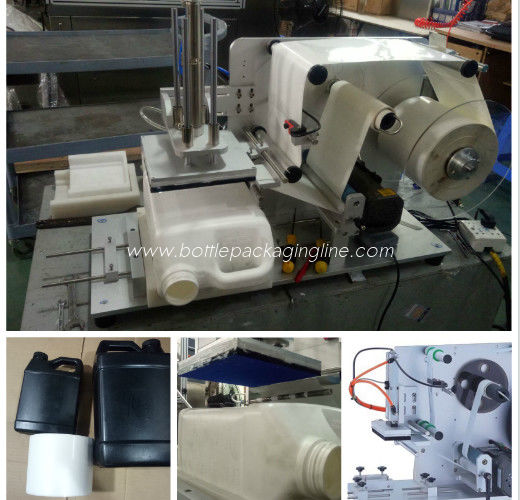

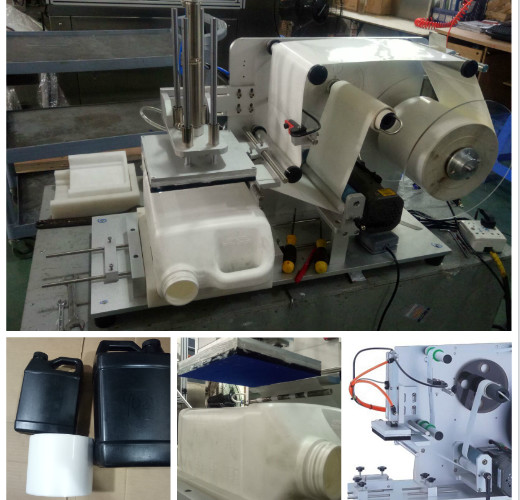

Semi-automatic plane surface labeler

Scope of application

Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.

Applicable products: Products that require labeling on flat, curved, circumferential, concave, convex or other surfaces.

Application industry: widely used in cosmetics, food, toys, daily chemicals, electronics, medicine and other industries.

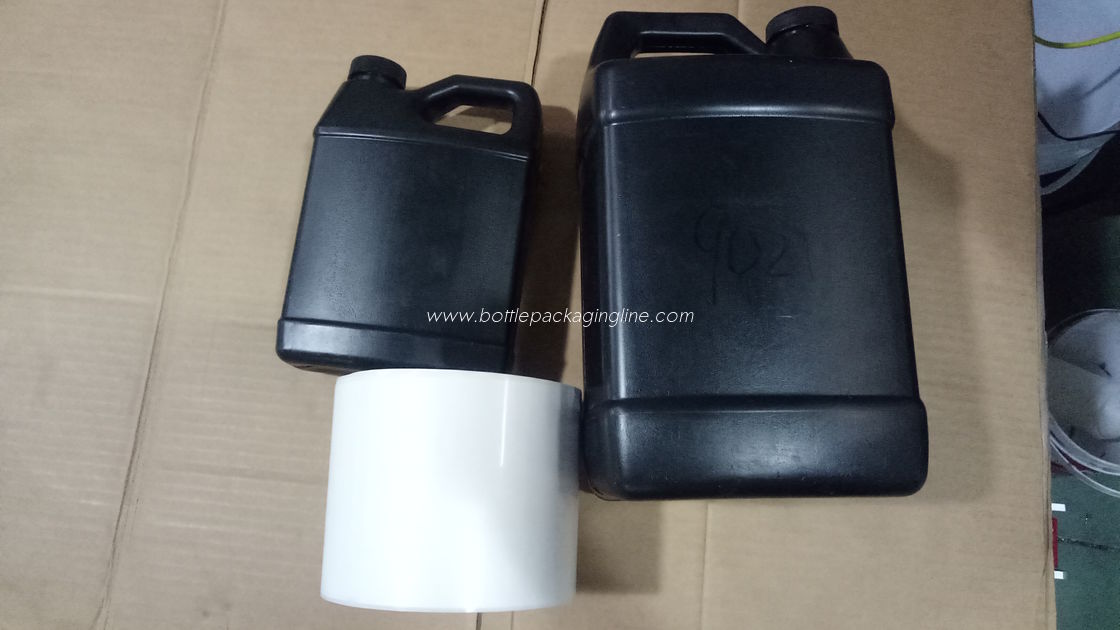

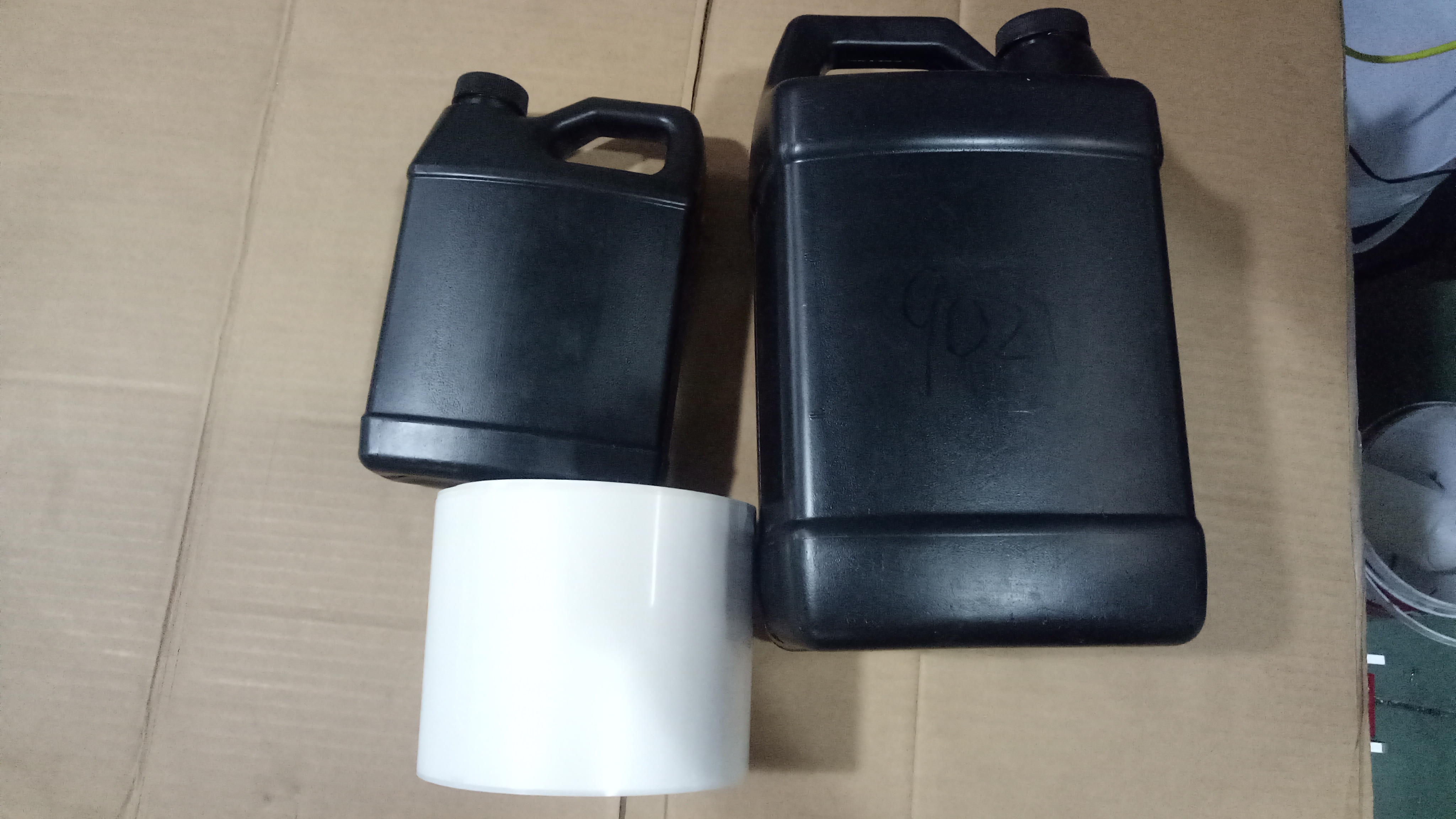

Application examples: shampoo flat bottle labeling, packaging labeling, bottle caps, plastic shell labeling, etc.



Semi-automatic plane surface labeler, It is powerful and can be used for labeling of plane, arc surface and concave plane of various work pieces, and can be used for labeling irregular work pieces;

Sticking standard is true, high stability, using PLC+ subdivided stepper motor to drive the standard, and sending the standard; the discharging mechanism is equipped with the brake function to ensure the tightness of the label, ensuring accurate label detection; the labeling and detouring mechanism prevents the label Left and right offset;

Durable and durable, the circuit is arranged separately from the gas path, and the gas path is equipped with a purifying device to prevent the moisture of the air from invading the electrical appliance and prolonging the life of the equipment; the whole machine is made of high-grade aluminum alloy and stainless steel, and the quality is firm;

Easy adjustment, high and low stroke adjustable function, different height product labeling, no need to change the fixture repeatedly;

Beautiful appearance, using the bottom computer white electric box, with stainless steel and high-grade aluminum alloy, beautiful appearance, upgrade equipment grade;



Technical Parameters:

Applicable product range: width 25 ~ 200 (mm), height 30 ~ 150 (mm), length 25 ~ 160 (mm)

Applicable label range: Square: width 20 ~ 60 (mm), length 20 ~ 150 (mm)

Round: Diameter: 20-60 (mm)

Production capacity: 10 to 40 pieces (depending on the label size and manual operation speed)

Rated voltage: 220V/50Hz

Machine power: 100W

Dimensions: approximately 900 × 450 × 600 (mm)

Gas source: 0.5-0.8MPa

Machine weight: 35Kg
