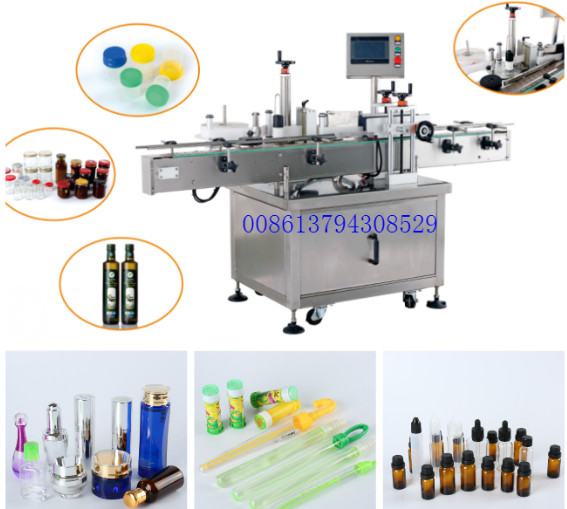

Full Automatic Sticker Labelling Machine 60-100 Bottle / Min Capacity

Basic Information
Place of Origin: GUANGZHOU ,CHINA
Brand Name: TZ
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: wooden standard packing
Delivery Time: 7-55 work days.
Payment Terms: L/C, T/T, Western Union
Application: Beverage, Medical, Chemical Type: Automatic Sticker Labeling Machine.
Driven Type: Electric Feature: Convenient Operation
Warranty: 1 Year Packaging Type: Bottles Packaging Material: Glass, Metal, Plastic Condition: New
High Light:

sticker pasting machine

,

automatic bottle label applicator

Automatic Sticker Labeling Machine.



Automatic Sticker Labeling Machine, widely used in various specifications of circumferential surface labeling, taper round bottle labeling, such as cosmetics, food, medicine, daily chemicals, toys, hardware, plastics and other industries. For example, beverage bottles, wine bottles, sauce bottles, oil bottles, can achieve full-circumference/half-week labeling, double-label labeling on the front and back of the circumference, and the spacing of the front labels can be adjusted freely.





Parameters of Automatic Sticker Labeling Machine.



Item Data
Operating direction Left or Right
Labeling Accuracy ±1.0 mm (subject to the roughness of the plane)
Capacity (bottle/min) 60-100
The application of bottle Outer diameter 13-90mm
The application of label Height 15-150mm Length 15-290mm
The inner diameter of label volume(mm) 76mm
The outer diameter of label volume(mm) 280mm (max)
The power of motor (w) 1100W
Voltage AC220V 50/60HZ Single phase
Weight 330Kg
bottle plastic bottle / PET bottle / glass bottle / can



Product introduction of self-adhesive sticker labeling machine

1, Automatic adhesive labeling machine applicable to labeling round bottles of various sizes in food, medicine, daily chemical and other light industries.



2, Features of double side sticker labeling machine

Machine-wide adoption of a mature technology PLC control system, so that the whole stable, high-speed

Operating system using touch-screen control, simple, practical, efficient Upgraded disc label station design, can label conical flask Screw adjustment to suppress body movements accurately Synchronization chain mechanism to ensure smooth and precise calibration Labeling transparent label does not bubble, labeling self-adhesive label does not wrinkle widely used, with one machine and adaptable.
