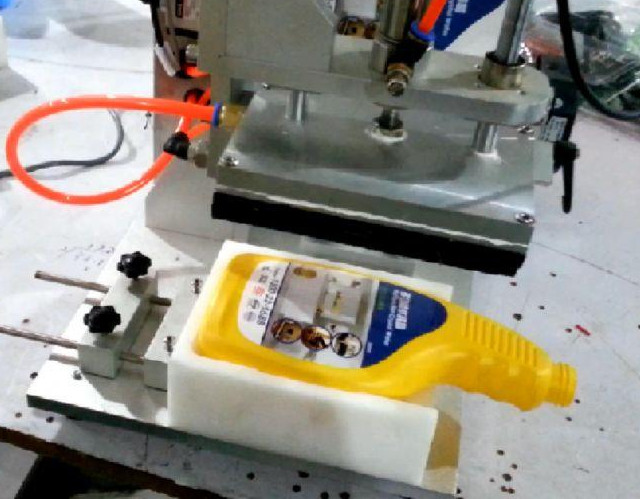

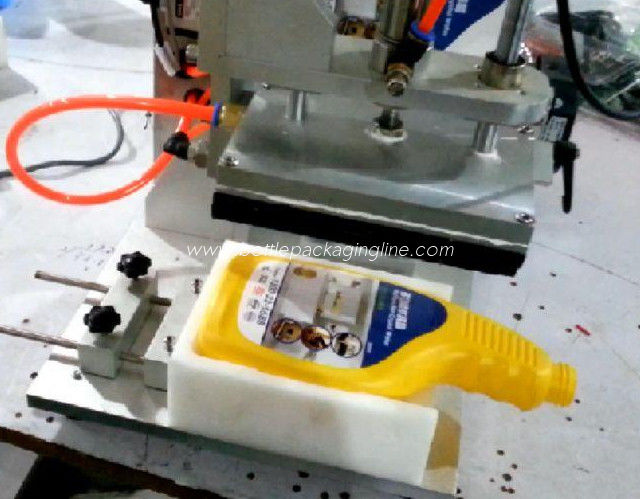

High Accuracy Flat Bottle Labeling Machine Long Service Life

Basic Information
Place of Origin: GUANGZHOU ,CHINA
Brand Name: TZ
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: wooden standard packing
Delivery Time: 7-55 work days.
Payment Terms: L/C, T/T, Western Union
Application: Beverage, Medical, Chemical Type: Flat Surface Labeling Machine
Driven Type: Electric Feature: Convenient Operation
Warranty: 1 Year Packaging Type: Bottles Packaging Material: Glass, Metal, Plastic Condition: New
High Light:

sticker pasting machine


ampoule labeling machine

Flat Surface Labeling Machine


pplicable Products:

Requirements in the plane surface, the arc surface, the circumferential surface, and concave, convex or other surface attached to the label of the product, such as: shampoo flat bottle labeling, packaging labeling, caps, plastic shell labeling and so on.

Product description:


Flat surface Labeling Machine use for different flat bottle, flat barrel etc. flat surface product.


Technical Parameters:

The following is the standard model technical parameters, other special requirements and functions, can be tailored

Applicable label length: 15mm ~ 100mm

Applicable label Bottom paper width: 15mm ~ 150mm

Applicable product size (length × width × height / thickness): Length: 20mm ~ 200mm

Width: 20mm ~ 150mm

Thickness: 0.2mm ~ 120mm

Applicable label outside diameter: φ340mm

Applicable label diameter: φ76mm

Labeling accuracy: ± 0.5mm

Exit speed: 5m / min

Labeling speed: 20 ~ 45pcs / min

Weight: about 48kg

Frequency: 50HZ

Voltage: 220V

Power (W): 145W

Equipment Dimensions (mm) (length × width × height): about 850mm × 410mm × 720mm

Air pressure (Mpa): 0.4 to 0.6 MPa.
