Liquid Negative Pressure Filling Machine For Filling Non - Carbonated Beverages

Basic Information
Place of Origin: guangzhou ,china
Brand Name: tengzhuo
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: wooden standard packing
Delivery Time: 7-55 work days.
Payment Terms: L/C, T/T, Western Union
Product Name: Liquid Negative Pressure Filling Machine Application: Food & Beverage Factory, Construction Works
Packaging Type: Barrel, Bottles Feature: Easy To Operate
Material: 304 Stainless Steel Filling Material: Flowing Liquid
High Light:

volumetric filling equipment

,

volumetric piston filler

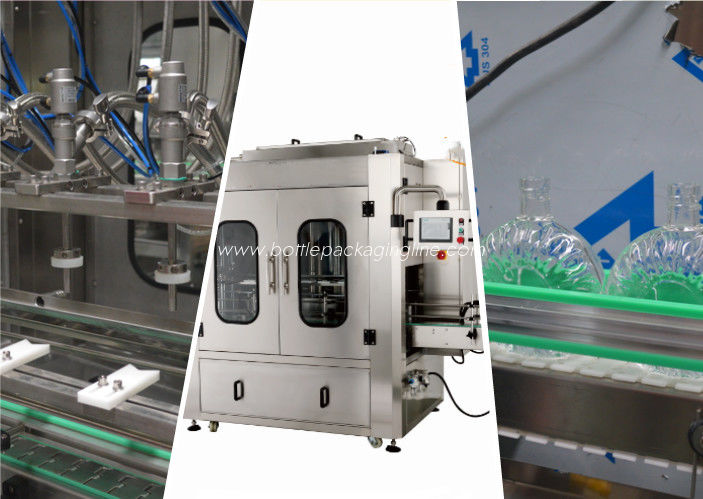

Liquid Negative Pressure Filling Machine



Equipment overview:

Negative pressure filling is also called vacuum filling, which was originally used for filling non-carbonated beverages.

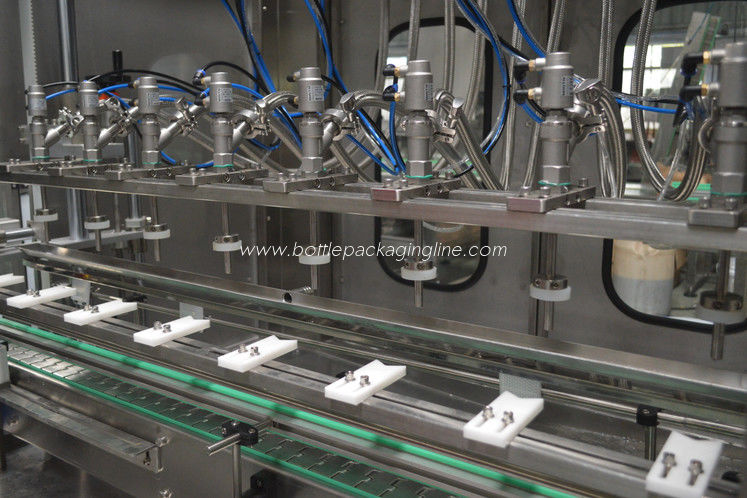

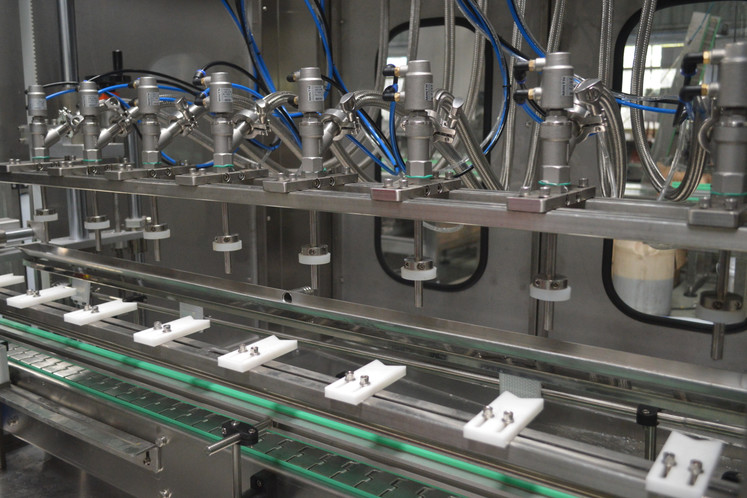

When filling, the spool valve rises first, the vacuum chamber communicates with the beverage bottle, and the air in the bottle is drawn out to form a negative pressure. At the same time, the filling port is opened, the vent hole is opened, and the beverage flows into the bottle under the action of gravity.



The liquid filled in the bottle is raised to the level of the liquid level of the filling machine through the exhaust pipe, and the excess liquid flows into the buffer chamber, and then returns to the liquid storage tank, and the filling is completed. The slide valve then descends and the liquid remaining in the air tube flows into the bottle and the filling port closes.



Liquid Negative Pressure Filling Machine is a product developed by our company. It is deeply loved by customers and widely used in the daily liquid area. It is highly praised by customers in China, USA, Australia, Bangladesh, Thailand, Malaysia, Singapore, Pakistan, Japan and other countries. After using our machine line, the customers’ recognition is high, saying that our mechanical packaging line is in line with the requirements of their local government, and the health department checks more. The customer can say that this is the most satisfactory purchase machine. Specially designed and customized the special department match nicely. The customer expressed satisfaction.



China's best machinery manufacturers, especially packaging machinery, for the packaging machinery production line the customer brings great convenience. Special packaging production machine, all Machinery has special customized according to your packaging requirements, breaking the traditional standard mode, for the packaging machinery production line the customer brings great convenience.



Hot Tags: liquid negative pressure filling machine, China machine, machine suppliers, packing equipment manufacturers, machine customized made in China
