Product Name: | Heating Filling Machine With Mixing | Application: | Food & Beverage Factory, Construction Works |
---|---|---|---|
Packaging Type: | Barrel, Bottles | Feature: | Easy To Operate |
Material: | 304 Stainless Steel | Filling Material: | Flowing Liquid |
High Light: | volumetric filling equipment,volumetric bottle filler |

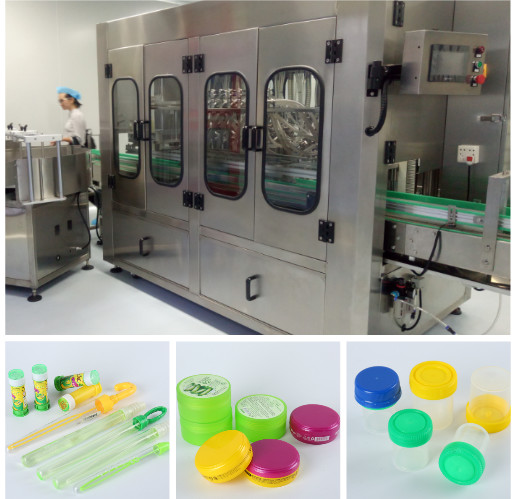

Professional Heating Volumetric Liquid Filling Machine With Mixing Easy To Operate
Heating Filling Machine with Mixing
Double jacket filling machine, filling material preheat before filling, would base on customer require temperature to make it, also would heating and mixing function.
Oily liquid and after filling and sealing with freezing and becomes ghee, double jacket and all pistons, heads and hose with heating.
Filling valve, upper cavity and lower cavity were formed in the negative suction cavity. The lower cavity had a negative pressure, which could automatically suck the residual liquid into the negative suction lower cavity along the valve-core and the slender hole in the middle of the negative suction valve-stem. The filling valve did not drip the liquid after closing, avoiding pollution of the packaging bottles by the residual liquid, and there was no need to install the traditional liquid collecting plate or the complicated negative suction device. Liquid filling valve with negative suction function was successful in solving the problem of filling valve dripping. In addition, the filling valve had compact structure and more cost effective.
Other options for hot filling machine
Valve: We make specially made valves for the hot filling machine;
Heating: Our machines are able to keep the temperature at a constant 85 degrees Celsius;
Temperature: Normally the hopper can't keep every drop of the material at 85 Celsius, but we will make sure that the temperature is equal to or greater than 85 Celsius by equipping extra heating pipes;
Material Feeding: We will equip the feed pump according to the production, which ensures that the filling machine is able to control the feeding of normal input;
1, heating is from normal temperature to 30 to 50 degrees, and the maximum heating temperature is 50 degrees.
2, heating temperature to 80 degrees.
3, heating temperature to your require temperature are welcome.
