| Place of Origin: | GUANGZHOU ，CHINA |
|---|---|
| Brand Name: | TZ |
| Minimum Order Quantity: | one set |
| Price: | Negotiable |
| Packaging Details: | wooden standard packing |
| Delivery Time: | 7-55 work days. |
| Payment Terms: | L/C, T/T, Western Union |
| Application: | Beverage, Medical, Chemical | Type: | Automatic Sticker Labeling Machine. |
|---|---|---|---|
| Driven Type: | Electric | Feature: | Convenient Operation |
| Warranty: 1 Year Packaging Type: Bottles Packaging Material: | Glass, Metal, Plastic | Condition: | New |
| High Light: | sticker pasting machine,ampoule labeling machine |
||

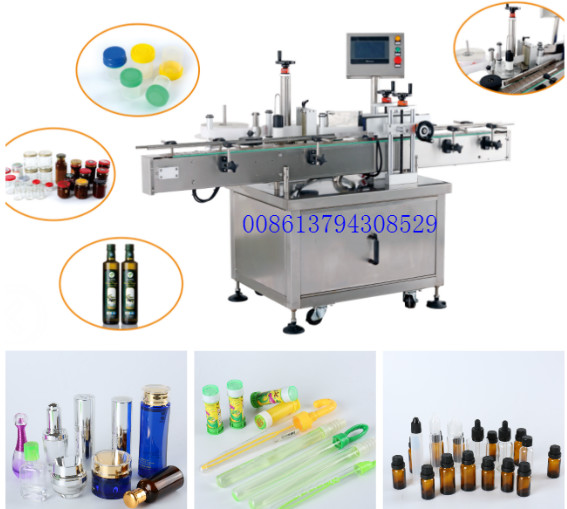

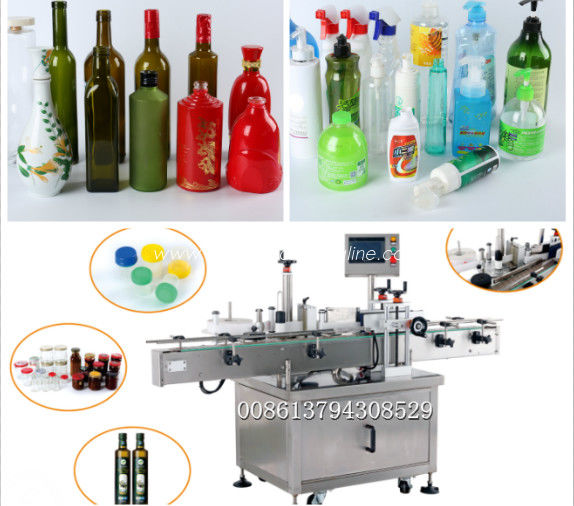

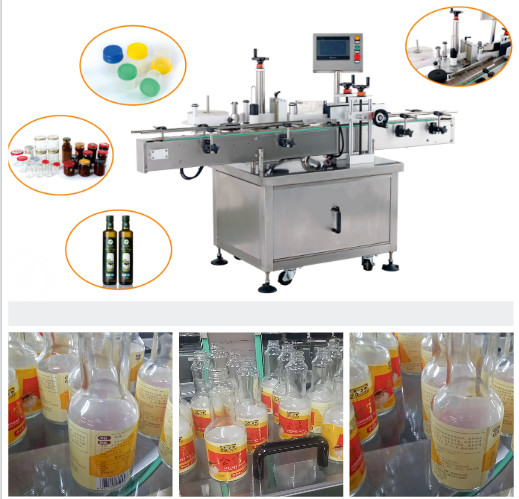

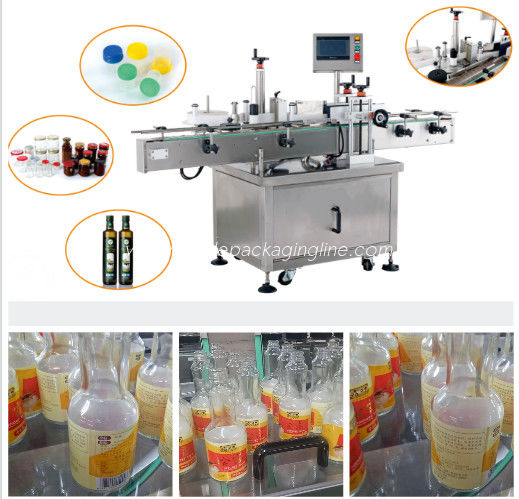

Automatic Sticker Labeling Machine.
Automatic Sticker Labeling Machine, widely used in various specifications of circumferential surface labeling, taper round bottle labeling, such as cosmetics, food, medicine, daily chemicals, toys, hardware, plastics and other industries. For example, beverage bottles, wine bottles, sauce bottles, oil bottles, can achieve full-circumference/half-week labeling, double-label labeling on the front and back of the circumference, and the spacing of the front labels can be adjusted freely.
Parameters of Automatic Sticker Labeling Machine.
| Item | Data |
| Operating direction | Left or Right |
| Labeling Accuracy | ±1.0 mm (subject to the roughness of the plane) |
| Capacity (bottle/min) | 60-100 |
| The application of bottle | Outer diameter 13-90mm |
| The application of label | Height 15-150mm Length 15-290mm |
| The inner diameter of label volume(mm) | 76mm |
| The outer diameter of label volume(mm) | 280mm (max) |
| The power of motor (w) | 1100W |
| Voltage | AC220V 50/60HZ Single phase |
| Weight | 330Kg |
| bottle | plastic bottle / PET bottle / glass bottle / can |
Product introduction of self-adhesive sticker labeling machine
1, Automatic adhesive labeling machine applicable to labeling round bottles of various sizes in food, medicine, daily chemical and other light industries.
2, Features of double side sticker labeling machine
Machine-wide adoption of a mature technology PLC control system, so that the whole stable, high-speed
Operating system using touch-screen control, simple, practical, efficient Upgraded disc label station design, can label conical flask Screw adjustment to suppress body movements accurately Synchronization chain mechanism to ensure smooth and precise calibration Labeling transparent label does not bubble, labeling self-adhesive label does not wrinkle widely used, with one machine and adaptable.
