| Place of Origin: | GUANGZHOU ，CHINA |
|---|---|
| Brand Name: | TZ |
| Minimum Order Quantity: | one set |
| Price: | Negotiable |
| Packaging Details: | wooden standard packing |
| Delivery Time: | 7-55 work days. |
| Payment Terms: | L/C, T/T, Western Union |
| Application: | Beverage, Medical, Chemical | Type: | Flat Surface Labeling Machine |
|---|---|---|---|
| Driven Type: | Electric | Feature: | Convenient Operation |
| Warranty: 1 Year Packaging Type: Bottles Packaging Material: | Glass, Metal, Plastic | Condition: | New |
| High Light: | sticker pasting machine,automatic bottle label applicator |
||

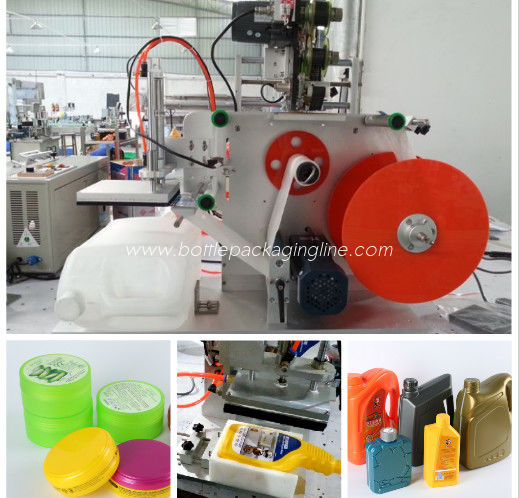

Flat Surface Labeling Machine
pplicable Products:
Requirements in the plane surface, the arc surface, the circumferential surface, and concave, convex or other surface attached to the label of the product, such as: shampoo flat bottle labeling, packaging labeling, caps, plastic shell labeling and so on.
Product description:
Flat surface Labeling Machine use for different flat bottle, flat barrel etc. flat surface product.
Technical Parameters:
The following is the standard model technical parameters, other special requirements and functions, can be tailored
Applicable label length: 15mm ~ 100mm
Applicable label Bottom paper width: 15mm ~ 150mm
Applicable product size (length × width × height / thickness): Length: 20mm ~ 200mm
Width: 20mm ~ 150mm
Thickness: 0.2mm ~ 120mm
Applicable label outside diameter: φ340mm
Applicable label diameter: φ76mm
Labeling accuracy: ± 0.5mm
Exit speed: 5m / min
Labeling speed: 20 ~ 45pcs / min
Weight: about 48kg
Frequency: 50HZ
Voltage: 220V
Power (W): 145W
Equipment Dimensions (mm) (length × width × height): about 850mm × 410mm × 720mm
Air pressure (Mpa): 0.4 to 0.6 MPa.
