| Place of Origin: | guangzhou ，china |
|---|---|
| Brand Name: | tengzhuo |
| Minimum Order Quantity: | one set |
| Price: | Negotiable |
| Packaging Details: | wooden standard packing |
| Delivery Time: | 7-55 work days. |
| Payment Terms: | L/C, T/T, Western Union |
| Product Name: | Automatic Shrink Sleeve Applicator Machine | Application: | Food & Beverage Factory, Construction Works |
|---|---|---|---|
| Packaging Type: | Barrel, Bottles | Feature: | Easy To Operate |
| Material: | 304 Stainless Steel | Filling Material: | Flowing Liquid |
| High Light: | automatic shrink sleeve applicator machine,shrink sleeve printing machine |
||

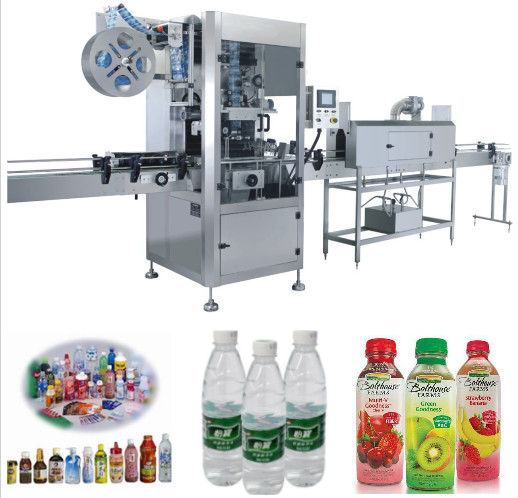

Automatic heat shrink film sleeve labeling machine
* Various bottle type;round, square and so on.
* High precious location;save cost and correct.
* Suitable for adjustment inside film range from 3to 10.
* Man-machine conversation liquid crystal screen;easy operation
* PLC control system
* High- speed sleeve film.(Temperature; from 100 to 600°C suitable for various film material
* Screw transportation located system;Location for various shape bottles.
* No need tool adjustment
Features of automatic heat shrink film sleeve labeling machine:
304 stainless steel main frame: waterproof and rust-proof, stable structure;
Free replacement and debugging tool holder, rotary cutting cutter head: long life, convenient and fast tool change, smooth and beautiful cut surface;
Stand-alone synchronously driven six-point positioning center guide column: stable, accurate and smooth label guide;
Tail-shaped label controls the electric eye frame: the position of the sub-label is convenient to adjust, and the film material cutting accuracy is higher;
Synchronous bottle separator: The bottle is conveyed smoothly and evenly, ensuring efficient and stable work for a long time;
Stand-alone synchronous drive brushing: precise target shooting, no bias, no flying target;
Bottle detection, label control electric eye: imported high-precision photoelectric sensors, accurate label segmentation, no blocking, and no leakage;
Fully automatic heat shrinkable film sleeve labeling machine can be equipped with independent feeders and freely positioned feeders;
Technical parameters of automatic heat shrink film sleeve labeling machine:
Input power: 2KW;
Input voltage: 220VAC;
Production efficiency: 50-150 bottles / min;
Applicable bottle diameter: Φ28mm-Φ125mm;
Applicable label length: 30mm-250mm;
Applicable label thickness: 0.03mm-0.13mm.
