Automatic Linear Capping Machine Bottle Steam Capping Machine

Basic Information
Place of Origin: GUANGZHOU ,CHINA
Brand Name: TZ
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: wooden standard packing
Delivery Time: 7-55 work days.
Payment Terms: L/C, T/T, Western Union
Application: Beverage, Medical, Chemical Type: Automatic Bottle Steam Capping Machine
Driven Type: Electric Feature: Convenient Operation
Warranty: 1 Year Packaging Type: Bottles Packaging Material: Glass, Metal, Plastic Condition: New
High Light:

bottle screw capping machine


automatic bottle capping machine

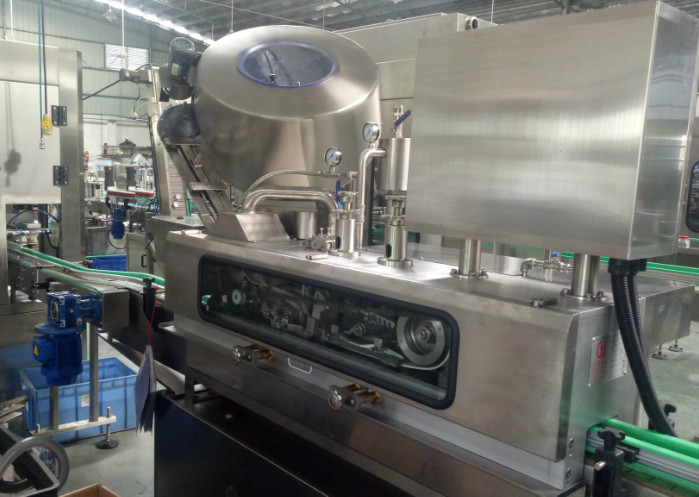

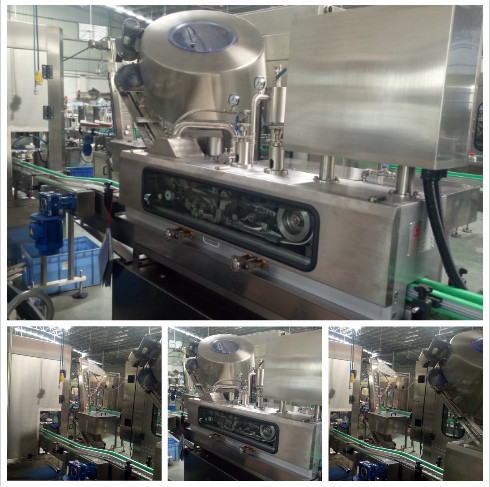

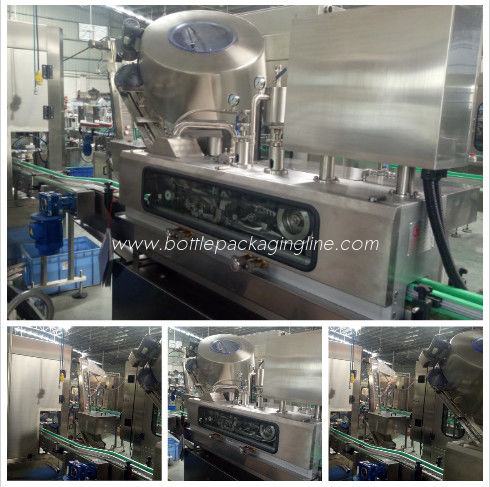

Automatic Bottle steam Capping Machine


Automatic Bottle steam Capping Machine is widely used in automatic vacuum caps for glass bottle iron caps in food and beverage, sauces, Bird’s nest , condiments, medicines, health care products and other industries.


Automatic Bottle steam Capping Machine characteristics

1. The machine integrates automatic cover, upper cover, steam jet and automatic vacuum cap, which has high production speed, high efficiency and stable and reliable operation.

2, photoelectric sensors, close to the beginning, etc. are all advanced sensory components, to ensure that no bottle does not send cover, card bottle, lack of cover automatic shutdown alarm and other functions, thus ensuring the reliability of the automatic cover;

3. Applicable bottle shape has round, square, various shapes, etc., and has strong applicability;

4. Replace bottles and covers of different specifications with simple adjustment and convenient operation;

5, the use of world-renowned brands of electrical and pneumatic components, low failure rate, stable and reliable performance, long service life.

Technical Parameters

Production capacity: 80 ~ 90 bottles / min

Applicable cover type: thread gland

Applicable cover diameter: Ф38-Ф82mm

Applicable bottle diameter: Ф30-Ф90mm

Applicable bottle height: 65-260mm

Motor power: 3.12 kw

Steam consumption: 180~230 kg/h

Steam pressure: ≤0.4 MPa

Maximum vacuum: 34~67 KPa

Dimensions: L3000 × W1100 × H2000mm

Equipment weight: about 1100 kg



The frame is made of carbon steel, surrounded by stainless steel plate, and the casing is made of thick aluminum plate. The movement is made of stainless steel SUS316L.The cap is automatically covered by a cap, and the capper is controlled by a photoelectric switch.

Automatic Linear Capping Machine  Bottle Steam Capping Machine 0
