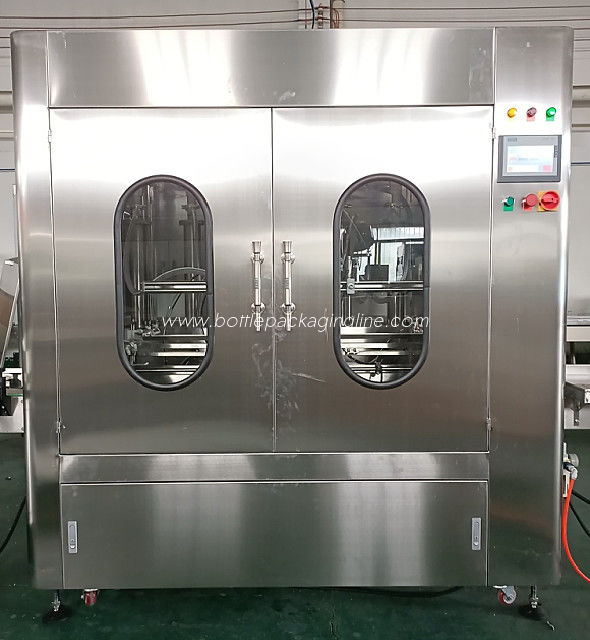

4000BPH Fully Automatic Bottle Packaging Line For Hand Sanitizer Water

Basic Information
Place of Origin: GUANGZHOU ,CHINA
Brand Name: TZ
Certification: CE
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: wooden standard packing
Delivery Time: 7-30 work days.
Payment Terms: T/T, Western Union,
Core Components: PLC, Bearing, Engine Filling Valve: Food Grade Stainless Steel 304
Rinsing Water Consumption: 0.8T/H Bottle Diameter: 50~100mm
Production Capacity: 4000BPH Bottle Height: 150~310mm
Suitable Cap: Plastic Screw Cap Brand Name: Hill Machinery Sdn Bhd
High Light:

Fully Automatic Bottle Packaging Line

,

4000BPH Bottle Packaging Line

,

PLC Bottle Packaging Line

Full Automatic Bottling Line For Hand Sanitizer Water 4000BPH Water Filling Machine​



Hand Sanitizer Filling Machine Line



Due to the impact of the epidemic, all customers who need hand sanitizer / disinfectant / alcohol packaging machinery can place an order first, and we will arrange it as soon as possible.

Hand sanitizer / disinfectant / alcohol packaging machinery
Hand sanitizer filling capping labeling packaging machine line


Hand sanitizer filling machine line


Disinfectant filling packaging machinery
Disinfectant filling capping labeling machine line
Alcohol filling packaging machine line.
Alcohol filling machine line.



Model
Hand Sanitizer Filling Machine Line
Input power supply
AC220 V (one way)
Power
3 (kw)
Processing customization
Yes
Degree of automation
semi automatic
Applicable industries
daily chemical, pharmaceutical and chemical industry
Filling volume
100ml-600ml quantitative (adjustable ml)
Material type
paste and liquid
Filling method
piston type
Number of filling heads
4
Filling accuracy
≤ 0.5
Production capacity
20-40 (PCS / min)
Size
4000 * 1000 * 1500 (assembly line)



Automatic Filling Machine


Automatic Filling Machine are suitable for different area, suck as in daily liquid or paste filling packing.



Technical Parameters


1. Number of filling heads: 1 head, 2 head, 4 head, 6head, 8head, 10head, 12head.
2. Filling capacity: 100ml to 5000 ml
3. Filling form: full servo drive filling
4. Filling speed: about 1800 bottles / minute for 1head.
5. Filling accuracy: ±1%
6. Material: 304 stainless steel for filling frame
7. Program control: PLC + touch screen
8. Filling mouth and trough contact liquid parts material: 304# stainless steel, food grade PVC
9. Air pressure: 0.6-0.8MPa
10. Conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min, height 850mm ± 25mm off the ground
11. Conveying motor: 370W variable frequency speed regulating motor
12. Power: about 4KW/AC220V 50/60HZ
13. Tank capacity: approx. 200 liters (with level switch).


Can be customized according to the actual situation of the customer



Other filling style reference.



Gravity and Pressure Fillers


The Gravity and Pressure/Gravity Fillers are suitable for bottling virtually any water-thin to medium consistent viscosity liquid. Gravity fillers are ideally suited for thin, foamy products where pressure/gravity fillers handle heavier viscosity products.

Pump Fillers


GH offers several different types of pump fillers to accommodate a wide variety of products. They provide an accurate and versatile method for filling low, medium and high viscosity liquids into a wide range of containers. GH MACHINE uses a variety of pumps including progressive cavity pumps, gear pumps, lobe pumps, rotor pumps or whichever is best for the application. We work with each customer to choose the right pumps, valves, and fittings for each application.



Gravity, Pressure & Vacuum Overflow Bottle Fillers
Overflow Fillers provide the same cosmetic fill level, making them ideal for filling transparent containers that must have a consistent fill level. Gravity and pressure overflow fillers are designed to handle thin to medium viscosity products. The GH Vacuum Overflow Filler is used for specialty filling applications and is typically used to fill small volume glass containers with low viscosity liquids.



Piston Filling


Piston fillers are another great option for packaging liquids. They offer fast and accurate fill rates, versatility with the ability to handle many different types of products, and they’re gentle on products. They’re ideal for viscous liquids including batters, sauces, pastes, icing, chunky fillings, and certain aerated products. Generally, these liquid packing machines are used to fill liquids that are squeezed through pastry bags or similar packaging.

Net Weigh Bottle Fillers
Net weigh liquid filling systems are great for making sure that each container you fill contains the same amount of product. They are particularly efficient at packaging bulk quantities of products, along with products that are of high value and require the maximum accuracy when weighing them to avoid lost profits.

4000BPH Fully Automatic Bottle Packaging Line For Hand Sanitizer Water 0

4000BPH Fully Automatic Bottle Packaging Line For Hand Sanitizer Water 14000BPH Fully Automatic Bottle Packaging Line For Hand Sanitizer Water 2
