| Place of Origin: | GUANGZHOU ，CHINA |
|---|---|
| Brand Name: | TZ |
| Minimum Order Quantity: | one set |
| Price: | directly factory price offer |
| Packaging Details: | wooden standard packing |
| Delivery Time: | 45 work days. |
| Payment Terms: | T/T, Western Union, Cash, MoneyGram |
| Product Name: | High Quality Hotspital Use Or Home Using Acohol Filling Machine Packing Line With Explosion Proof | Application: | Food & Beverage Factory, Construction Works |
|---|---|---|---|
| Packaging Type: | Bottles | Feature: | High Quality |
| Material: | 304 Stainless Steel | Filling Material: | Acohol |
| High Light: | SS304 Bottle Packing Line,Explosion Proof Bottle Packing Line |
||

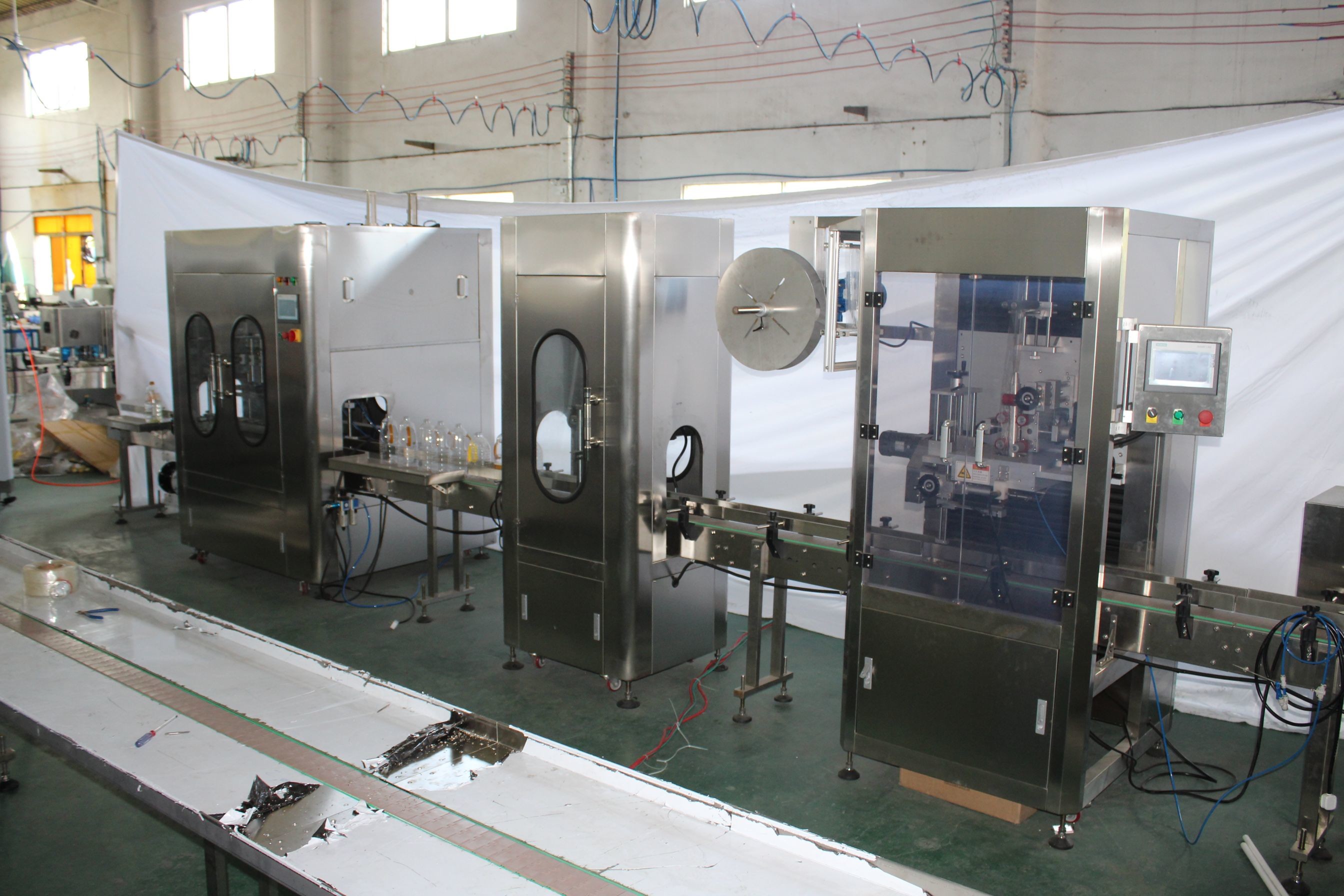

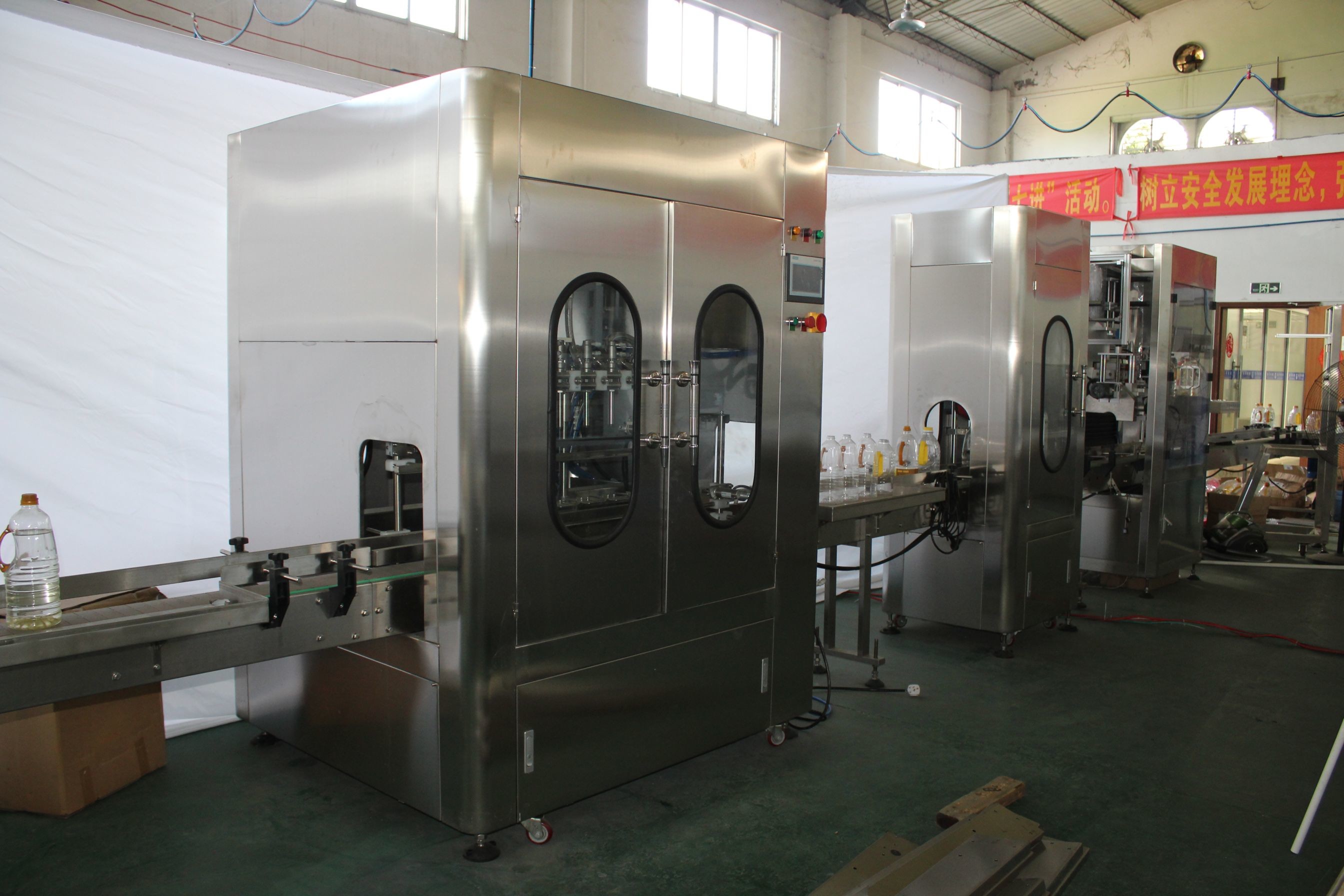

high quality hotspital use or home using acohol filling machine packing Line with Explosion proof
is mainly for filling and packaging machinery lines customized for acohol , would made with EX Proof.
The main mechanical components are:

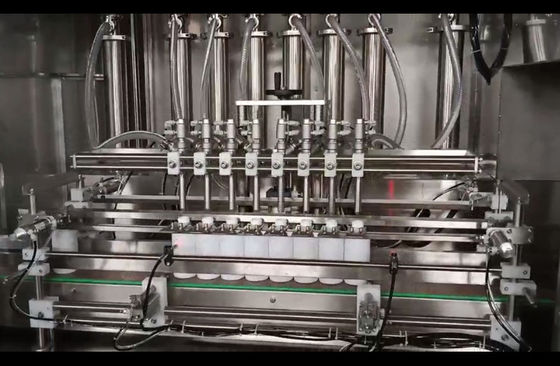

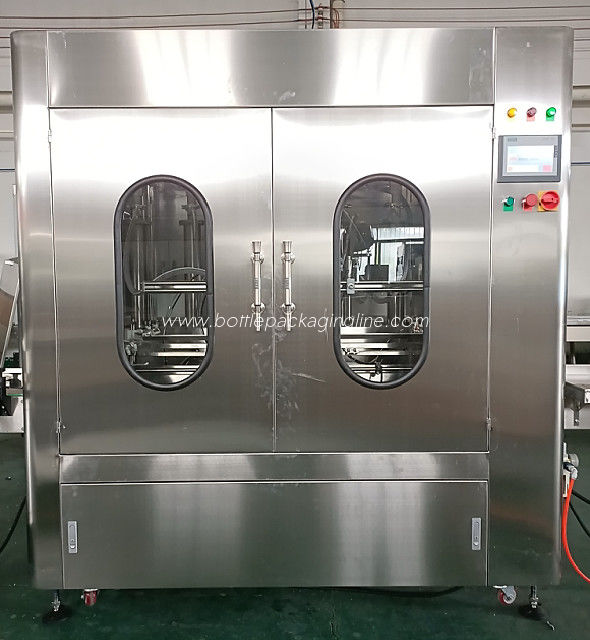

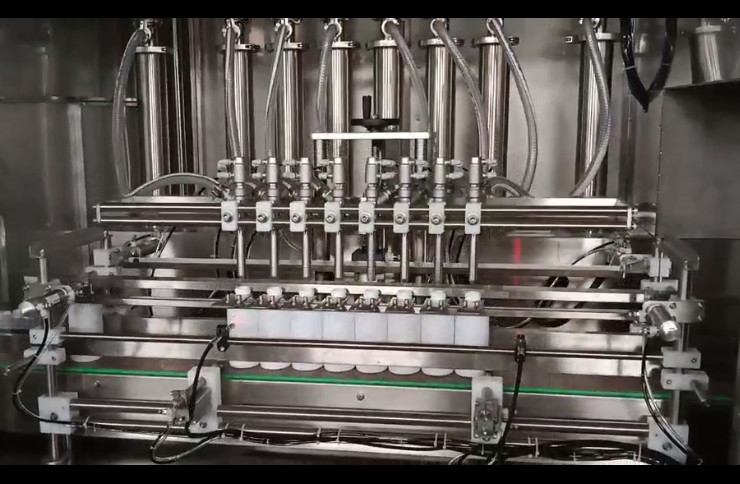

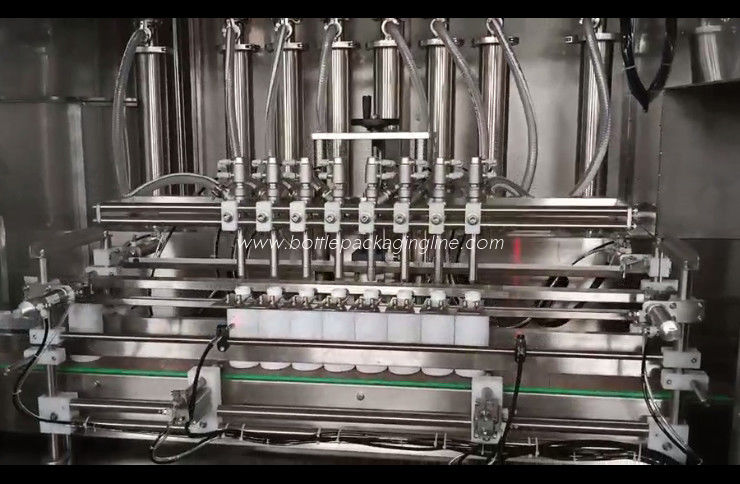

Gravity filling machine
high quality hotspital use or home using acohol filling machine packing Line with Explosion proof technical parameter:
| A |
1. Suitable for bottle type: according to samples provided by customers 2. Number of filling heads: 6 head 3. Filling capacity: 100ml-500ml 4. Filling accuracy: ±1ml 5. Filling form: self-flow quantitative multi-head filling 6. Production speed: 2000 bottles/hour 7. Conveyor belt: 82mm wide POM chain belt, height above ground 750mm±25mm 8. Conveyor motor: frequency conversion motor 9. Machine power: about 3KW/220V, three-phase five-wire 10. Program control: PLC + touch screen man-machine interface 11. The material of the filling frame is stainless steel 12. Filling nozzles and other materials in contact with materials: 304 stainless steel, plastic parts 13. Protection device: alarm for lack of material and shutdown 14. Air pressure: 0.6~0.8MPa |
| B |
Would base on require to make.
|
Belt clamp rotary capping machine
technical parameter:
1. Lid sorting method: manual lid sorting or automatic arrange cap
2. Suitable for bottle specifications: according to the model provided by the customer
3. Lower cover form: manual lower cover
4. The form of screw cap: belt clip screw cap
5. Speed: 2000 bottles/hour
6. Material: stainless steel frame
7. Program control: frequency converter speed regulation
8. The conveyor belt uses 82mm wide POM chains, and the conveyor belt surface is 750±25mm high from the ground.
9. The conveying motor adopts frequency conversion drive motor with a speed of 0~10 meters/minute.
10. Machine power: about 1.2KW
11. Air pressure: 0.6-0.8MPa
Vertical round bottle positioning labeling machine
technical parameter;
1. Applicable bottle range: provide samples according to customers;
2. Applicable label range: provide samples according to customers;
3. Production capacity: 2000 bottles/hour
4. Labeling accuracy: ±1mm
5. The conveyor belt uses 82mm wide POM chains, and the conveyor belt surface is 750±25mm high from the ground.
6. Conveying motor: 140W frequency conversion motor
7.Power supply: 220V/50HZ single phase;
8. Power: about 0.6KW;
9. Program control: PLC and touch screen human-machine;
10. Applicable paper roll: 76mm inner diameter and 300mm outer diameter.
for more details, contact with Cindy 008613794308529, 36226571@qq.com
