1000PCS/H Sanitizer Bottle Filling Line Frequency Conversion Motor

Basic Information
Place of Origin: GUANGZHOU ,CHINA
Brand Name: TZ
Minimum Order Quantity: one set
Price: directly factory price offer
Packaging Details: wooden standard packing
Delivery Time: 7-55 work days.
Payment Terms: T/T, Western Union, MoneyGram
Filling Accuracy: ±1ml Filling Form: Self-flow Quantitative Multi-head Filling
Production Speed: 1000~5000 Bottles/hour Filling Capacity: 30ml 50ml 100ml
Suitable For Bottle Type: According To Samples Provided By Customers Conveyor Belt:: 82mm Wide POM Chain Belt, Height Above Ground 750mm±25mm
Number Of Filling Heads: 2,4,6,8...20head Conveyor Motor: Frequency Conversion Motor
High Light:

Sanitizer Bottle Filling Line


1000PCS/H Bottle Filling Line


Frequency Conversion Bottle Filling Line

1000~5000 Bottles / Hour Sanitizer Bottle Filling Line Frequency Conversion Motor


The hand sanitizer filling production line is mainly for filling and packaging machinery lines customized for hand sanitizer, hand gel, shampoo, shower gel, etc. The main mechanical components are:

Gravity filling machine


technical parameter:

1. Suitable for bottle type: according to samples provided by customers

2. Number of filling heads: 2,4,6,8...20head

3. Filling capacity: 30ml 50ml 100ml

4. Filling accuracy: ±1ml

5. Filling form: self-flow quantitative multi-head filling

6. Production speed: 1000~5000 bottles/hour

7. Conveyor belt: 82mm wide POM chain belt, height above ground 750mm±25mm

8. Conveyor motor: frequency conversion motor

9. Machine power: about 3KW/220V, three-phase five-wire

10. Program control: PLC + touch screen man-machine interface

11. The material of the filling frame is stainless steel

12. Filling nozzles and other materials in contact with materials: 304 stainless steel, plastic parts

13. Protection device: alarm for lack of material and shutdown

14. Air pressure: 0.6~0.8MPa


Function and features

Working process: unscrambler -- filling -- capping -- labeling -- ribbon printing/ink jet printing (optional).
Nice machine appearance, reasonable structure, this is the most advanced new design thick sauce filling machine at present, machine can be customized with 4/6/8/12/14/etc filling heads according to customer's production capacity. Its has advantage of high capacity, good safety performance and high degree of automation.
Plunger pump filling system has features of no adsorbing drugs, good chemical stability, high temperature resistance, corrosion resistance, abrasion resistance, long service life, has unique advantages when fill some corrosive liquid.
Used for various viscosity liquid filling, frequency control, automatic count.
Main electrical elements adopts foreign well-known brand.
Machine body is made of 304 stainless steel, full compliance with GMP standard.

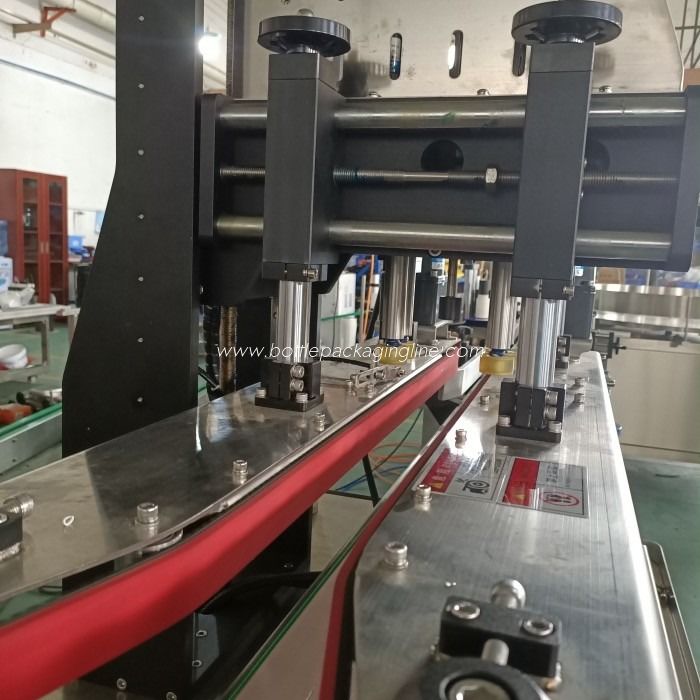

Belt clamp rotary capping machine


technical parameter:

1. Lid sorting method: manual lid sorting

2. Suitable for bottle specifications: according to the model provided by the customer

3. Lower cover form: manual lower cover

4. The form of screw cap: belt clip screw cap

5. Speed: 1000~5000 bottles/hour

6. Material: stainless steel frame

7. Program control: frequency converter speed regulation

8. The conveyor belt uses 82mm wide POM chains, and the conveyor belt surface is 750±25mm high from the ground.

9. The conveying motor adopts frequency conversion drive motor with a speed of 0~10 meters/minute.

10. Machine power: about 1.2KW

11. Air pressure: 0.6-0.8MPa


Vertical round bottle positioning labeling machine


technical parameter;

1. Applicable bottle range: provide samples according to customers;

2. Applicable label range: provide samples according to customers;

3. Production capacity: 1000~5000 bottles/hour

4. Labeling accuracy: ±1mm

5. The conveyor belt uses 82mm wide POM chains, and the conveyor belt surface is 750±25mm high from the ground.

6. Conveying motor: 140W frequency conversion motor

7.Power supply: 220V/50HZ single phase;

8. Power: about 0.6KW;

9. Program control: PLC and touch screen man-machine;

10. Applicable paper roll: 76mm inner diameter and 300mm outer diameter.

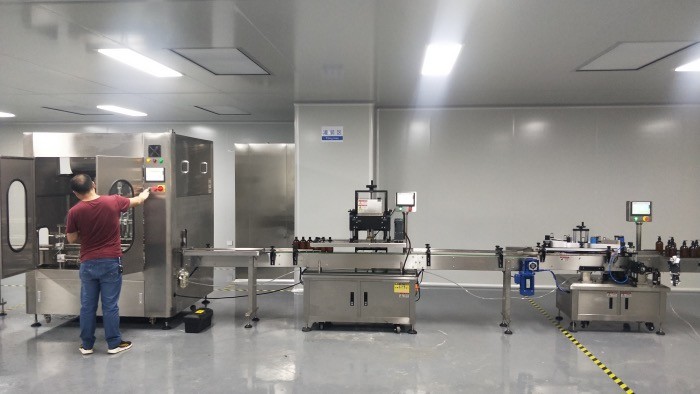

1000PCS/H Sanitizer Bottle Filling Line Frequency Conversion Motor 0

1000PCS/H Sanitizer Bottle Filling Line Frequency Conversion Motor 1
