Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine

Basic Information
Place of Origin: GUANGZHOU ,CHINA
Brand Name: TZ
Minimum Order Quantity: one set
Price: directly factory offer
Packaging Details: export wooden case packing
Delivery Time: 35 work days.
Payment Terms: T/T, Western Union, MoneyGram
Name: Pet Bottle Filling Packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine Suitable For: Plastic Bottle And Glass Bottle
Automatic Grade: Fully Automatic Key Selling Points: Easy To Operate
Materials: 304SS And 316SS Stainless Steel Weight: 1080KG
Feature: Effective Filling And Sealing Capping Speed: 2000-2500 /hour
Putting Cap Way: Automatic Arrange Cap And Downing Cap



Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine 0



Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine

advantage:



1,Efficient filling only one filling heads would reach the high-speed,using infrared sensor to accurately find the bottle, follow-up filling, no pause in the production process, filling about 2000 bottles per minute with a capacity of about 500ml. would save the space when you use this machine.
2,Smart machine The mobile high-speed filling machine can debug the bottles of different shapes, different heights and different capacities in just a few minutes, and enter the next wave of production, completely solving the problems due to the wide variety, the small number of single items and frequent adjustments.
3,Accurate capacity The mobile high-speed filling machine adopts full-automatic servo motor to drive the piston filling, and the filling quantity is accurate and uniform, completely solving the trouble caused by the error of filling capacity.
4,Small footprint Automatic Filling Machine is small and exquisite, and the installation site of the whole machine only needs 4 square meters, which greatly saves production space and effectively improves the utilization rate of the workshop.
5,Automatic cleaning Automatic Filling Machine has an automatic cleaning function, which can reduce the workload of the workshop more effectively and greatly save the time of refueling and replacing the production line.
6,Cost-effective Automatic Filling Machine is beautiful and durable. The whole machine is made of stainless steel 304, and the surface metal wire drawing process is of great value.



Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine

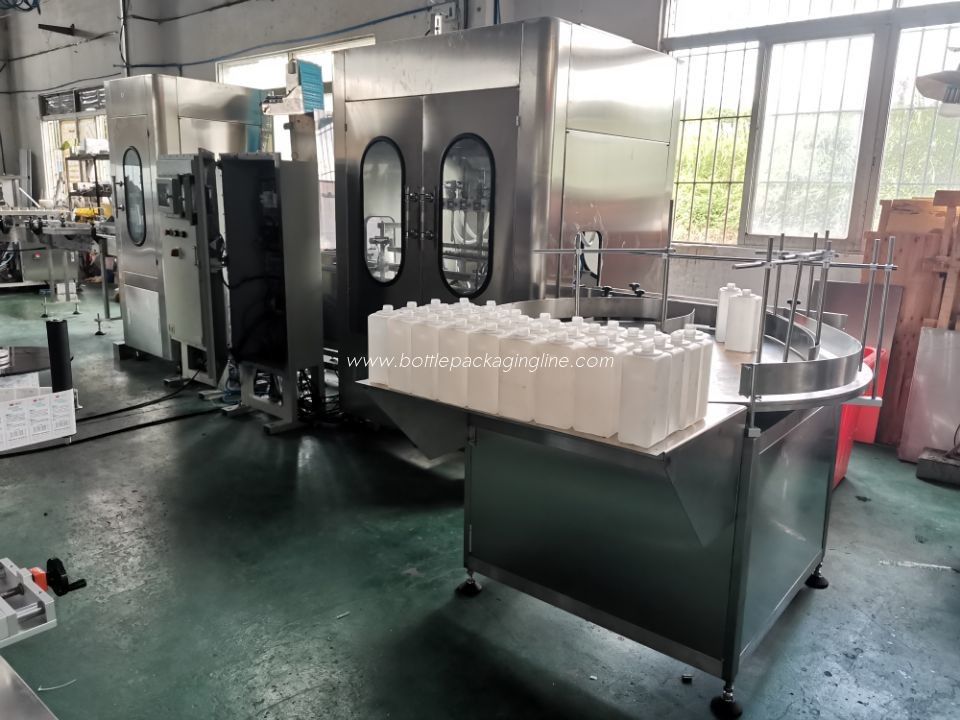

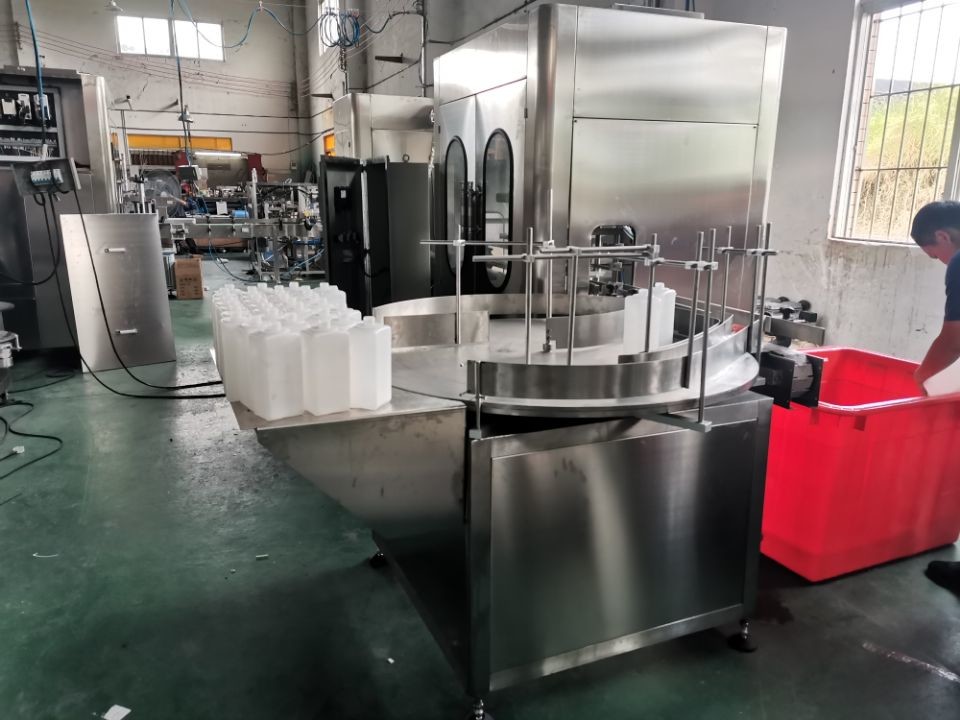

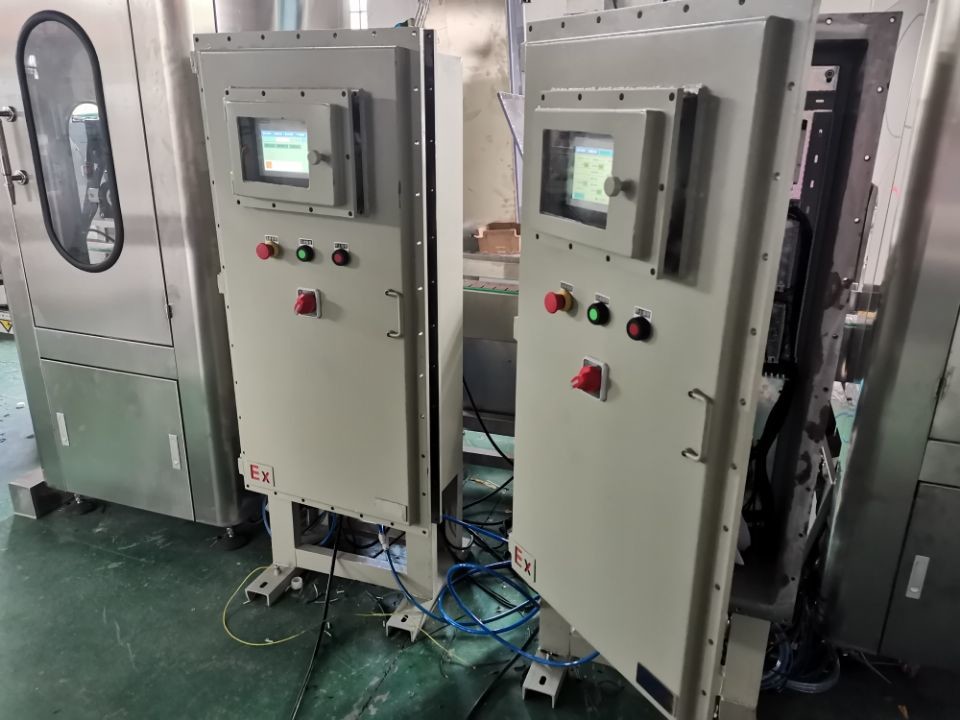

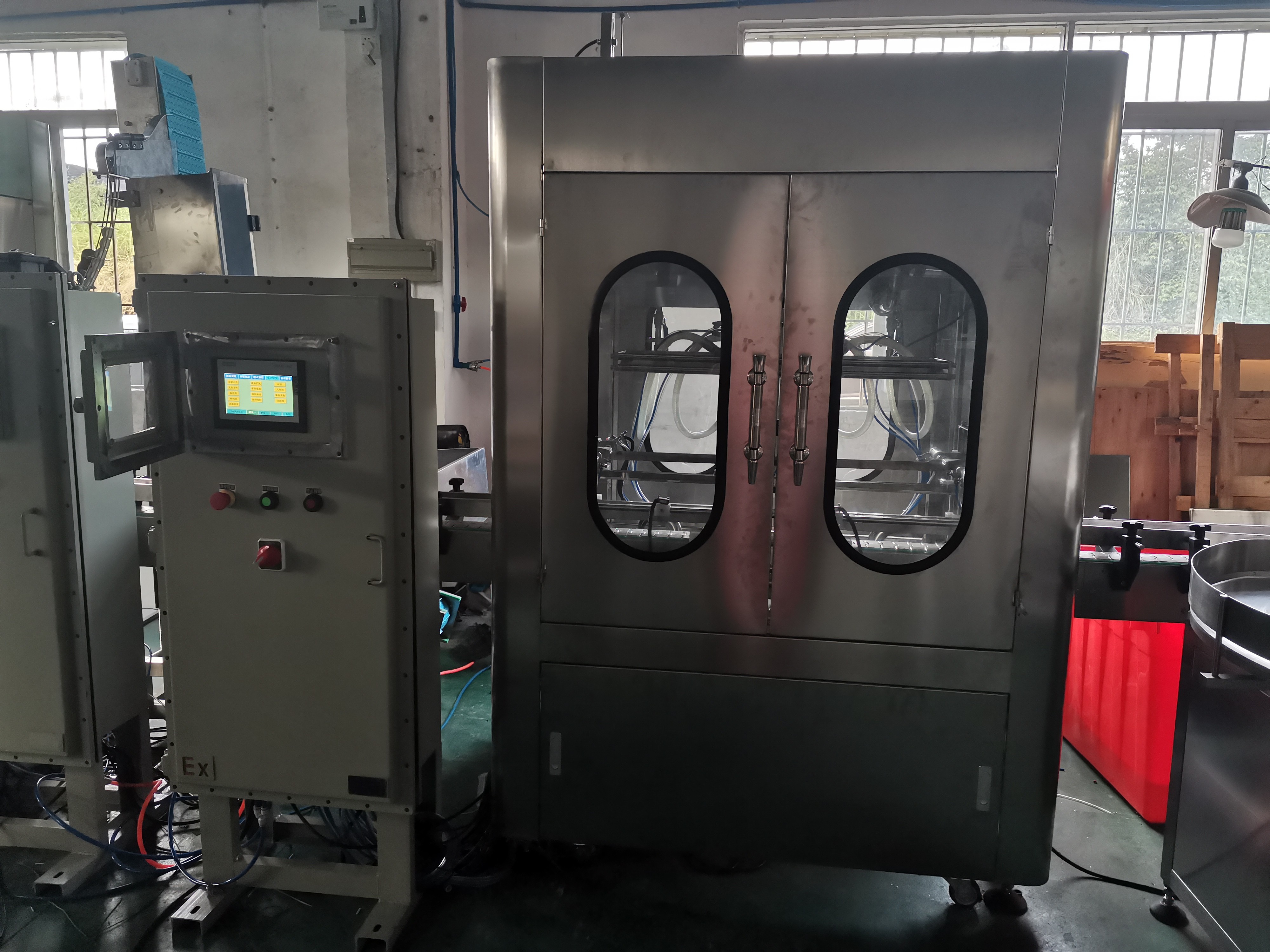

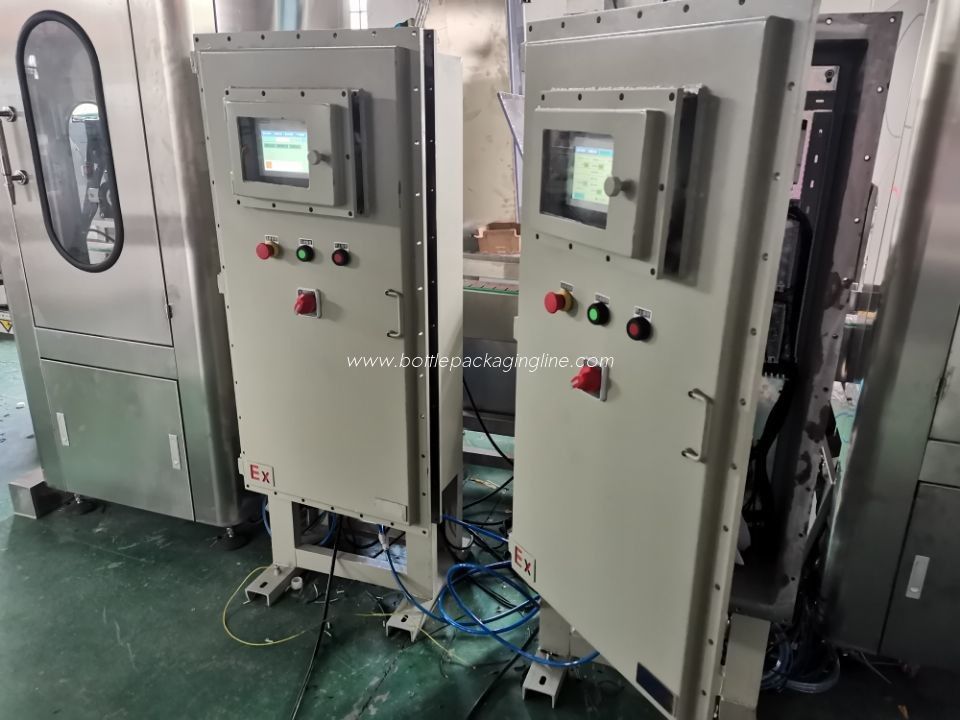

 Photo reference



Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine 1Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine 2Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine 3Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine 4Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine 5

Pet Bottle Filling packing Line With Automatic Medical Alcohol / Chemical Liquid / Acetic Acid Filling Capping Machine

Technical Parameters

1. Number of filling heads:8 head

2. Filling capacity: 50ml to 500ml

3. Filling form: full servo drive filling

4. Filling speed: about 3000 bottles / hour .

5. Filling accuracy: ±99%

6. Material: 304 stainless steel for filling frame

7. Program control: PLC + touch screen

8. Filling mouth and trough contact liquid parts material: 304# stainless steel, food grade PVC

9. Air pressure: 0.6-0.8MPa

10. Conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min, height 750mm  ± 25mm off the ground

11. Conveying motor: 370W variable frequency speed regulating motor

12. Power: about 3.8KW/AC220V 50/60HZ

13. Tank capacity: approx. 150liters (with level switch).

14. cap style: would choose screwing capping and automatic fellowing up screw capping.

15. would match with labeling machine, carton sealing machine and weight checking machine etc machine together use as one full line.

Can be customized according to the actual situation of the client bottle samples



other filling style machine line reference.

Gravity and Pressure Fillers

The Gravity and Pressure/Gravity Fillers are suitable for bottling virtually any water-thin to medium consistent viscosity liquid. Gravity fillers are ideally suited for thin, foamy products where pressure/gravity fillers handle heavier viscosity products.



Pump Fillers

TZ offers several different types of pump fillers to accommodate a wide variety of products. They provide an accurate and versatile method for filling low, medium and high viscosity liquids into a wide range of containers. TZ MACHINE uses a variety of pumps including progressive cavity pumps, gear pumps, lobe pumps, rotor pumps or whichever is best for the application. We work with each customer to choose the right pumps, valves, and fittings for each application.



Gravity, Pressure & Vacuum Overflow Bottle Fillers

Overflow Fillers provide the same cosmetic fill level, making them ideal for filling transparent containers that must have a consistent fill level. Gravity and pressure overflow fillers are designed to handle thin to medium viscosity products. The TZ Vacuum Overflow Filler is used for specialty filling applications and is typically used to fill small volume glass containers with low viscosity liquids.



Piston Filling machine

Piston fillers machine are another great option for packaging liquids. They offer fast and accurate fill rates, versatility with the ability to handle many different types of products, and they’re gentle on products. They’re ideal for viscous liquids including batters, sauces, pastes, icing, chunky fillings, and certain aerated products. Generally, these liquid packing machines are used to fill liquids that are squeezed through pastry bags or similar packaging.



Net Weigh Bottle Fillers equipments

TZ Net weigh liquid filling systems equipments are great for making sure that each container you fill contains the same amount of product. They are particularly efficient at packaging bulk quantities of products, along with products that are of high value and require the maximum accuracy when weighing them to avoid lost profits.





any question, please contact with Cindy freely, 008613794308529,  36226571@qq.com, thanks
