| Place of Origin: | GUANGZHOU ，CHINA |
|---|---|
| Brand Name: | TZ |
| Minimum Order Quantity: | one set |
| Price: | directly factory offer |
| Packaging Details: | export wooden case packing |
| Delivery Time: | 45 work days. |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Key Selling Points: | Easy To Operate | Feature: | Effective Filling And Sealing |
|---|---|---|---|
| Keyword: | Bird's Nest Filling Machine | Filling Capacity: | 20ml |
| Filling Accuracy: | 99% | Air Pressure: | 0.6~0.8MPa |
| Number Of Filling Heads: | 8nozzle | ||
| High Light: | 20ml Bird'S Nest Filling Machine,PLC Bird'S Nest Filling Machine,8 Nozzle Bottle Filling Line |
||

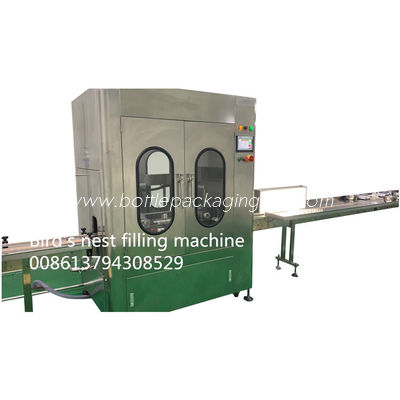

Bird's nest filling machine (would add with 200L heating and mixing tank)
technical parameter:
Bird's nest filling machine (would add with 200L heating and mixing tank), suitable for Bird’s nest food packing machine, we have complete full packing machine line offer.
1. Suitable bottle type: according to the sample provided by the customer
2. Number of filling heads: 8nozzle
3. Filling capacity: 20ml
4. Filling accuracy: 99%
5. Filling form: piston type quantitative multi-head filling
6. Production speed: about 2000 bottles/hour (calculated according to 20ml capacity)
7. Conveyor belt: 82mm wide POM chain belt, ground height 750mm±25mm
8. Conveyor belt motor: frequency conversion motor
9. Power of the whole machine: about 5KW/380V, three-phase five-wire
10. Program control: PLC+touch screen man-machine interface
11. The material of the filling frame is stainless steel
12. Filling nozzle and other parts in contact with materials: 304 stainless steel, plastic parts
13. Protection device: shutdown alarm for lack of material
14. Air pressure: 0.6~0.8MPa
