| Place of Origin: | GUANGZHOU ，CHINA |
|---|---|
| Brand Name: | TZ |
| Minimum Order Quantity: | one set |
| Price: | directly factory offer |
| Packaging Details: | export wooden case packing |
| Delivery Time: | 45 work days. |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Automatic Grade: | Fully Automatic | Key Selling Points: | Easy To Operate |
|---|---|---|---|
| Feature: | Effective Filling And Sealing | Filling Heads Number: | 4nozzle~20nozzle |
| Filling Accuracy: | ± 99% | Pressure: | 0.6-0.8MPa |
| Power: | About 3KW / 380V Three-phase | Protection Device: | Liquid Storage Tank Stop Alarm. |
| High Light: | 3KW Hot Filling Machine,Piston Quantitative Hot Filling Machine |
||

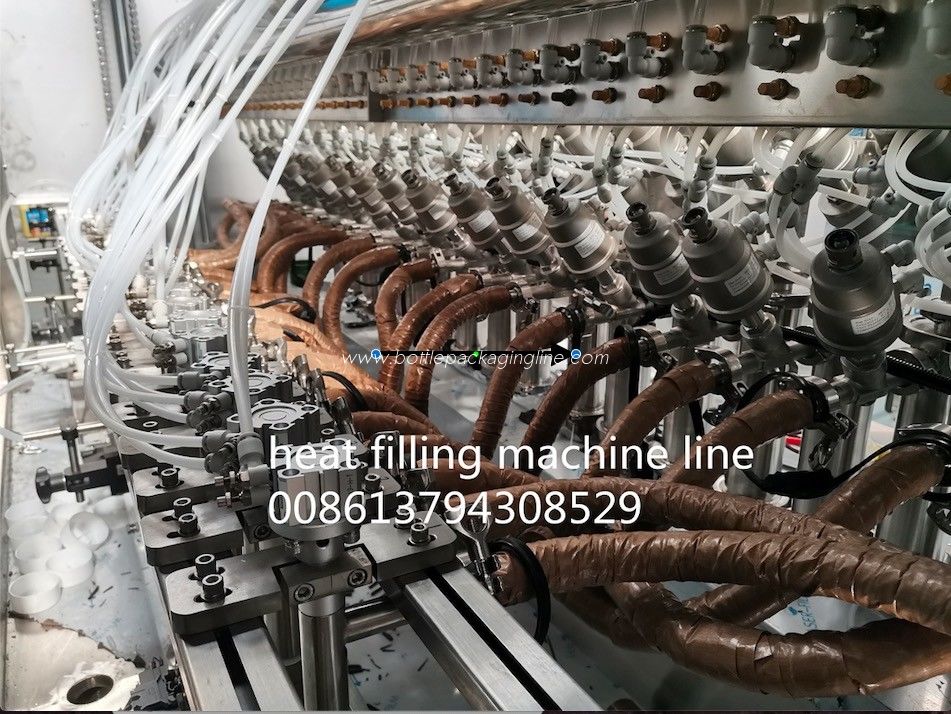

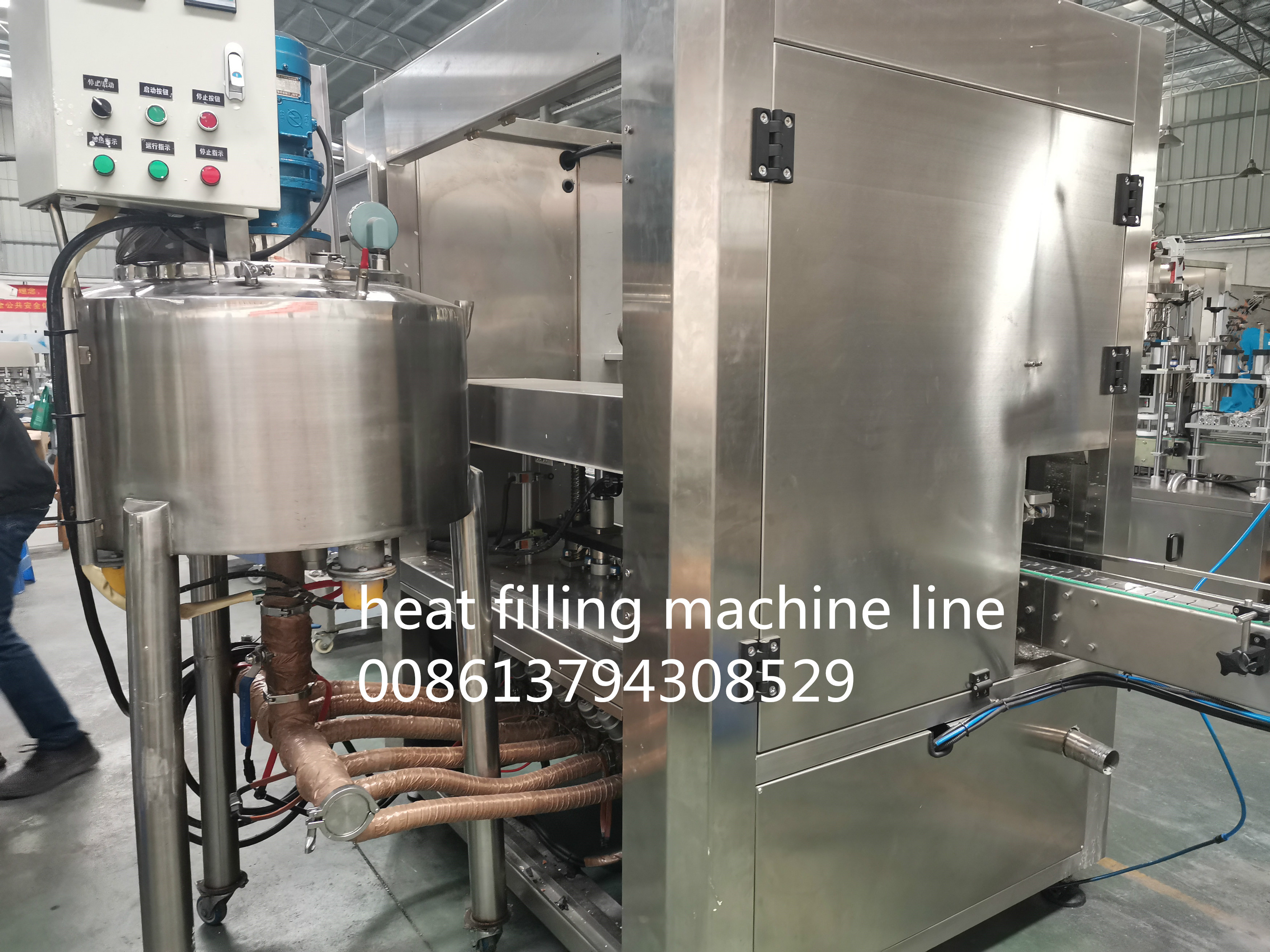

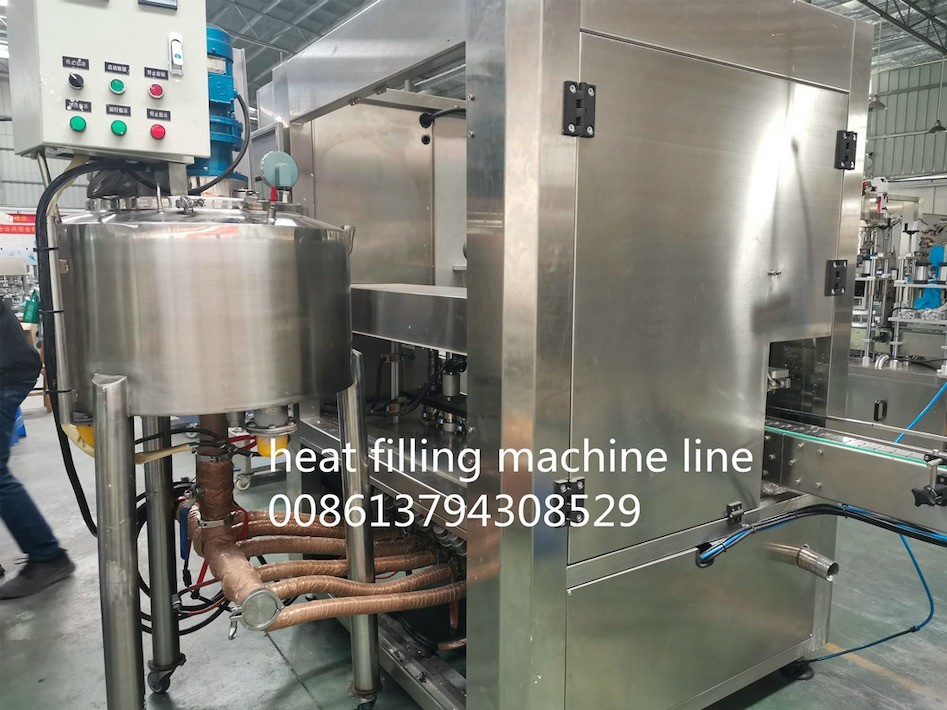

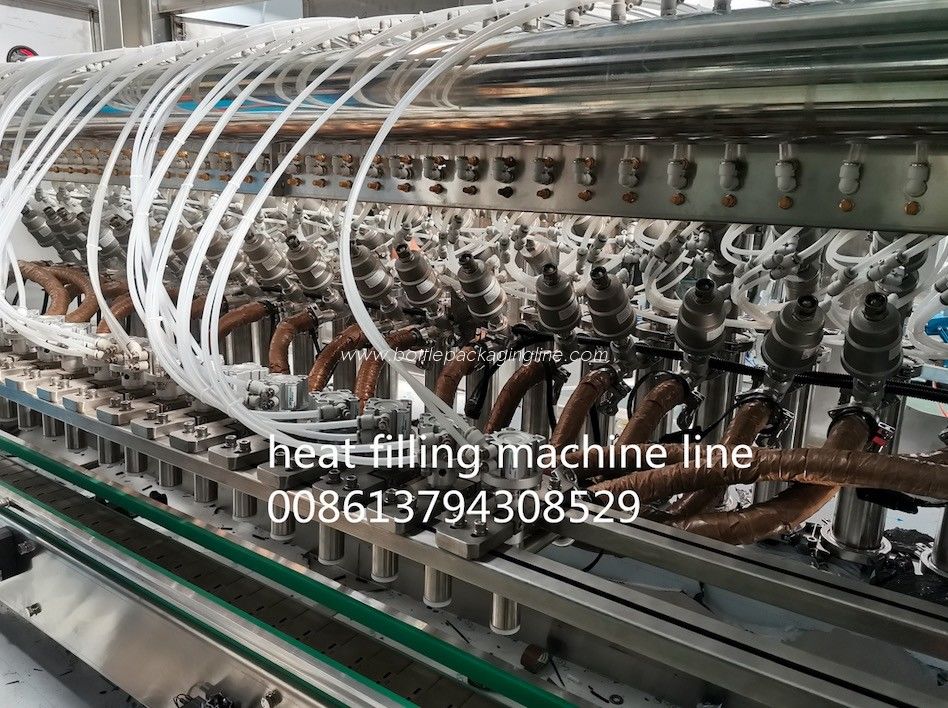

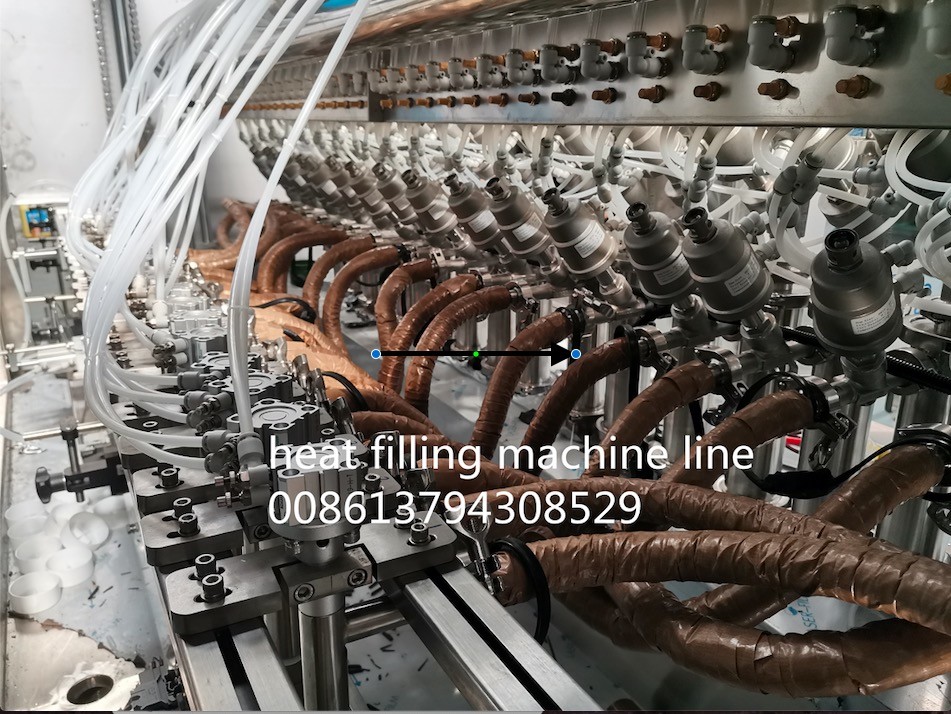

Hair wax hot Filling machine
Technical Parameters:
1. Filling heads number: 4nozzle~20nozzle
2. Filling capacity: 50 grams~500 grams,500grams ~1000grams
3. Filling form: Piston quantitative filling
4. Filling speed: about 1200~5000 bottles / hour
5. Filling accuracy: ± 99%
6. Material: Filling rack with stainless steel
7. Program control: PLC + touch screen
8. Filling mouth and touch liquid parts Material: 304 # stainless steel, PVC
9. Pressure: 0.6-0.8MPa
10. Conveyor: 114mm wide POM chain with a speed of 0-15 m / min
11. Conveying motor: 370W frequency control motor
12. Power: about 3KW / 380V three-phase
13. Tank capacity: about 50~80 liters (with level switch, with heating temperature and stirring).
14. Protection device: Liquid storage tank stop alarm.
