| Place of Origin: | Guangzhou China |
|---|---|
| Brand Name: | TengZhuo |
| Certification: | CE |
| Model Number: | TZ |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiated |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Material: | 304 Stainless Steel | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Core Components: | Motor | Keywords: | Liquid Filling Machine |
| Power: | 0.1KW | Voltage: | 220V/110V, 110V/220V |
| Key Selling Points: | Easy To Operate | Automatic Grade: | Semi-automatic, Automatic |
| High Light: | 1000ml Adjustable Liquid Filling Machine,20 Heads Liquid Filling Machine |
||

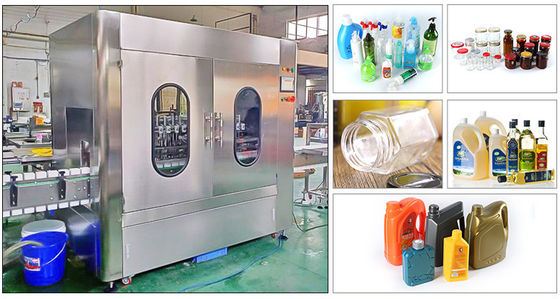

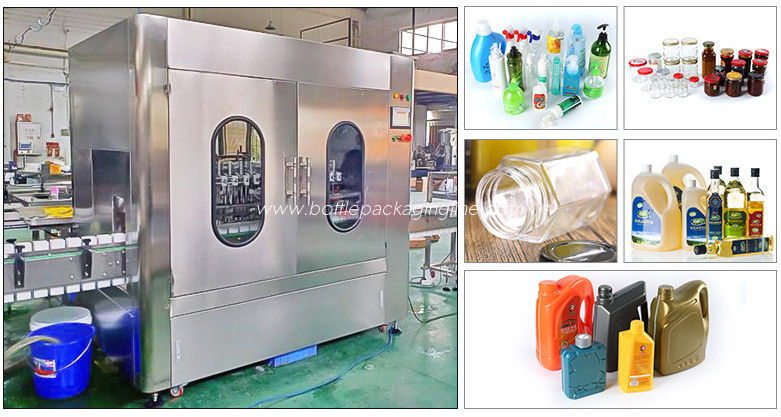

Automatic line type liquid filling machine for filling shampoo /detergent/hand sanitizer/hand rub
The production line combines 3 parts of machines
1.Filling machine
2. Capping machine
3. Labeling machine.
(kindly notes all the machine line Can be customized and applicable according to customer requirements or bottle packaging requirements )
Automatic line type liquid filling machine for filling shampoo /detergent/hand sanitizer/hand rub
the 1st parts is Filling machine
Hand sanitizer /Automatic line type liquid filling machine for filling shampoo /detergent/hand sanitizer/hand rub filling machine with 6 nozzles automatic servo piston.
6 heads filling, press and screw capping production line consists of 6 heads piston filling machine, press and screw capping machine. This machine used for liquid filling and other similar product.
Also would choose
| Filling heads | 1, 2, 4 , 6, 8, 12, 16, 20heads (can be customized) |
| Filling volume | 100-1000ml adjustable (can be customized) |
| Filling type | piston filling |
| Filling speed | 1200-1800 bottles/hour(base on 4 heads) |
| Filling error | ±1% |
| Conveyor speed | 300-900meter/hour |
| Power | 800W / 220V AC single phase |
| Program control | PLC + touch screen |
Automatic line type liquid filling machine for filling shampoo /detergent/hand sanitizer/hand rub
The 2nd part Automatic capping machine
Equipment Overview:
The machine integrates automatic sorting ,arranging, upper cover, automatic screwing cap.It has no bottle to send cover, lack of cover automatic alarm function, high degree of automation. Automatic capping for plastic/ metal round cap, pump caps, and duckbill caps. Applicable to medicine, food, cosmetics, oil, biological, pesticides, chemical, chemical and other industries, play a role in leak proof, anti-theft.
Technical Parameters:
Capping range: Φ10~φ55mm (can be customized according to requirements)
Adapt to bottle height: 50~300mm (can be customized according to requirements)
Capping speed: 10~35 bottles/minute (Increasing the number of caps can increase the speed)
Rated voltage: 220V 50Hz
Power: 1.1KW
Air source: 06~0.8MPa
Bottle cap type: plastic, metal round cap, pump head cap, duckbill cap, etc.
Automatic line type liquid filling machine for filling shampoo /detergent/hand sanitizer/hand rub
The 3rd part Automatic bottle labeling machine
Fully automatic self-adhesive vertical round bottle labeling machine, widely used in various specifications of circumferential surface labeling, taper round bottle labeling, such as cosmetics, food, medicine, daily chemicals, toys, hardware, plastics and other industries. For example, beverage bottles, wine bottles, sauce bottles, oil bottles, can achieve full-circumference/half-week labeling, double-label labeling on the front and back of the circumference, and the spacing of the front labels can be adjusted freely.
Technical Parameters:
Label specifications: length 15mm~290mm; width 15mm~150mm
Product specifications: Φ25mm~90mm;
Product height: 25~300mm
Marked outer diameter: Φ280mm;
Marking inner diameter: Φ76mm
Labeling speed: 10~100 bottles/min
Labeling accuracy: ±1mm
Air pressure: 0.6~0.8Mpa
Power: 850w (step), 1150w (servo)
Voltage: 220V 50Hz
Other hotsale: automatic disinfectant/liquid/hand sanitizer capping labeling filling machine production line,Filling And Sealing Machine, Automatic Filling Capping Labeling Production Line, automatic labeling machine, Bottle Washing Machine, Semi-automatic Magnetic Pump Filling Machine, alcohol filling capping machine etc.
