Two Sides 0.8Mpa Vertical Round Bottle Labeling Machine

Basic Information
Place of Origin: Guangzhou China
Brand Name: TengZhuo
Certification: CE
Model Number: TZ
Minimum Order Quantity: 1SET
Price: Negotiated
Packaging Details: wooden cases
Delivery Time: 30 days
Payment Terms: T/T, Western Union, MoneyGram
Application: Food, Beverage, Grease Key Selling Points: Automatic,High Productivity
Machinery Test Report:: Provided Voltage: 220V/380V ,50/60HZ
Label Inner Diamater: 76.2mm Labeling Width: 0-120mm
Labeling Capacity: 1800-6000bph Label Outer Diamater: 350mm
High Light:

0.8Mpa Round Bottle Labeling Machine


76.2mm Dia Round Bottle Labeling Machine

Automatic vertical round bottle labeling machine


High Productivity Automatic Vertical Round Bottle Labeling Machine


Fully automatic self-adhesive vertical round bottle labeling machine, widely used in various specifications of circumferential surface labeling, taper round bottle labeling, also would add two side or surface labeling head , for two side labeling use ,


wise use in industrial : such as cosmetics, food, medicine, daily chemicals, toys, hardware, plastics and other industries. For example, beverage bottles, wine bottles, sauce bottles, oil bottles, can achieve full-circumference/half-week labeling, double-label labeling on the front and back of the circumference, and the spacing of the front labels can be adjusted freely.


Technical Parameters:

Label specifications: length 15mm~290mm; width 15mm~150mm

Product specifications: Φ25mm~90mm;

Product height: 25~300mm

Marked outer diameter: Φ280mm;

Marking inner diameter: Φ76mm

Labeling speed: 10~100 bottles/min

Labeling accuracy: ±1mm

Air pressure: 0.6~0.8Mpa

Power: 850w (step), 1150w (servo)

Voltage: 220V 50Hz

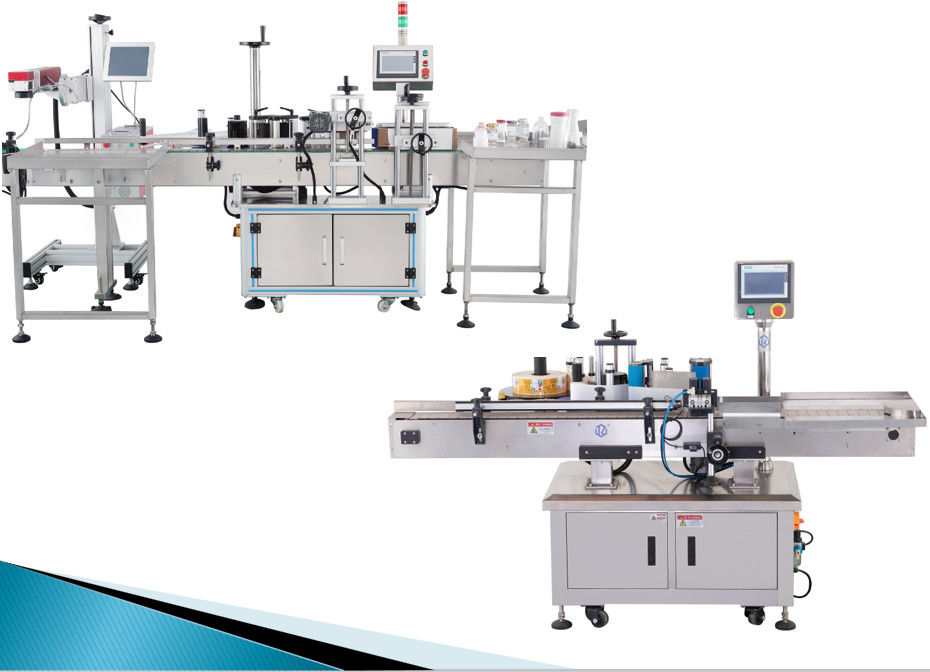

Two Sides  0.8Mpa Vertical Round Bottle Labeling Machine 0

Double sides sticker labeling machine

Front &back Two sides and wrap around labeling machine can apply two labels on round and square bottle. Labeling machine is used to apply labels to various products such as Ampoules, Vials, Bottles, Jars, Container, Canisters, Cartons, Boxes, Caps packages etc.


The labeling machines are also known as labeling systems, labeling equipment, labeling machines, labeler, labeling machinery, labelling machine, labellers, labelling equipment. Many Labelling machines are not only used to dispense or apply labels, but also to print labels. There is a wide range of Labelling machines available in the market, ranging from high–production units that allow for complete automation of the print and apply process to manual devices that provide for simple label dispensing.


Working principles of sticker labeling machine

At the beginning of the working process, the bottles are fed to the labeling machine at a constant speed on the conveyor belt. The mechanical fixing device separates the bottles by a fixed distance, and pushes the bottles along the conveyor belt. The mechanical system of the labeling machine includes a driving wheel, a labeling wheel, and a reel.

The driving wheel drags the label tape intermittently, the label tape is pulled out from the reel, and the labeling wheel will press the label tape on the bottle after passing through the labeling wheel. An open-loop displacement control is used on the reel to maintain the tension of the label tape. Because the labels are closely connected to each other on the label tape, the label tape must constantly start and stop.

The label is attached to the bottle when the labeling wheel moves at the same speed as the bottle. When the conveyor belt reaches a certain position, the label belt drive wheel will accelerate to a speed matching the conveyor belt, and after the label is applied, it will decelerate to a stop.

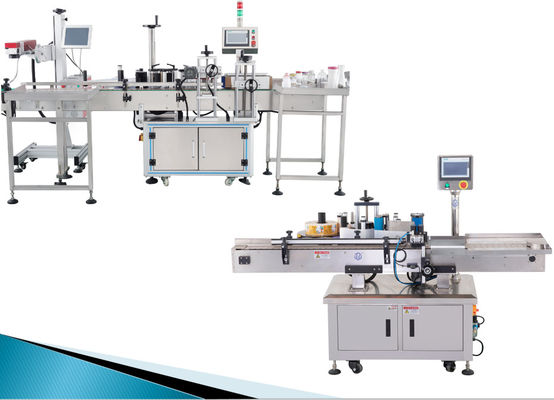

Two Sides  0.8Mpa Vertical Round Bottle Labeling Machine 1
