| Place of Origin: | Guangzhou China |
|---|---|
| Brand Name: | TengZhuo |
| Certification: | CE |
| Model Number: | TZ |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiated |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Material: | 304 Stainless Steel | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Core Components: | Motor | Keywords: | Liquid Filling Machine |
| Power: | 1.5KW | Voltage: | 220V/110V, 110V/220V |
| Key Selling Points: | Easy To Operate | Automatic Grade: | Semi-automatic, Automatic |
| High Light: | Hotels Cosmetics Bottle Filling Line,1.5KW Bottle Filling Line,1000ml Bottle Filling Line |
||

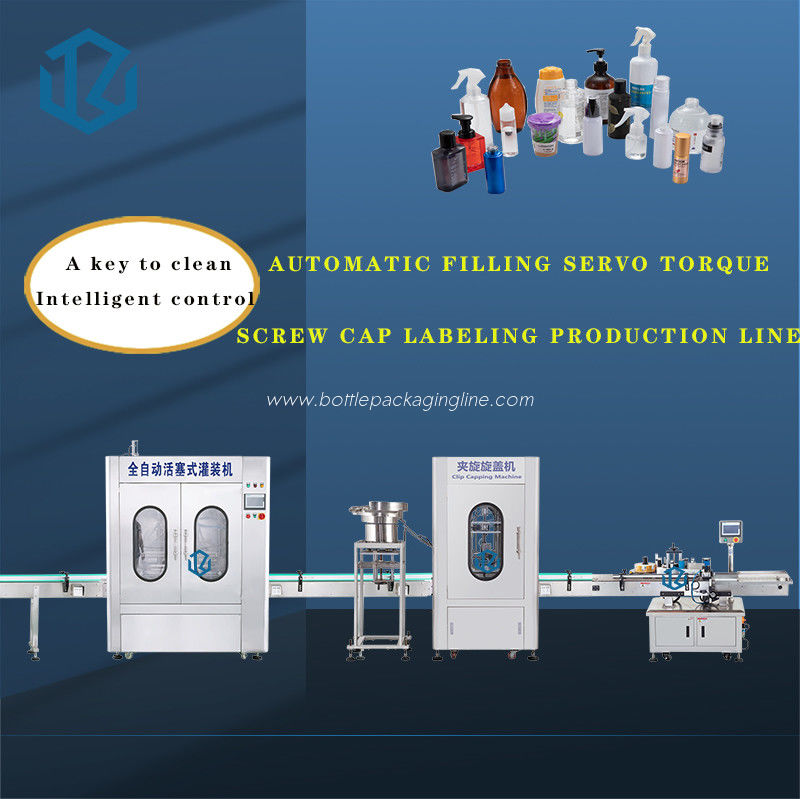

Complete Packaging Hotels Cosmetics Automated Filling machine Line for Shampoos Lotions Body Creams
Includes two main machines: Linear shampoo filling machine and inline screw capping machinery. according to customer requirement.
This machine adopts cylinder transmission, enduring the stability of the equipment, accuracy. All the action of filling, entering, filling, outing , capping and etc automatically, besides the detect, control, have no bottle and filling action.
The filling heads designed for many heads (can be designed depend on the product capacity). The filling parts adopts piston pump, use many measuring pump separately control the filling quantity, the measuring pump can change the quantity according to the request, measuring accuracy, filling steady, high speed, suit for multitudinous product. effectively, high effect, good stability.
basic parameter of shampoo filling machine
Filling range: 5～50ml, 50ml ~500ml, 500ml~5000ml
Filling speed: ＜20-50b/m(for 500-1000ml liquid)
Accuracy ±1% Power/supply power: 0.8kw,220v
Working pressure: 5～6kg/cm3
Air consumption: 0.5-0.7mpa

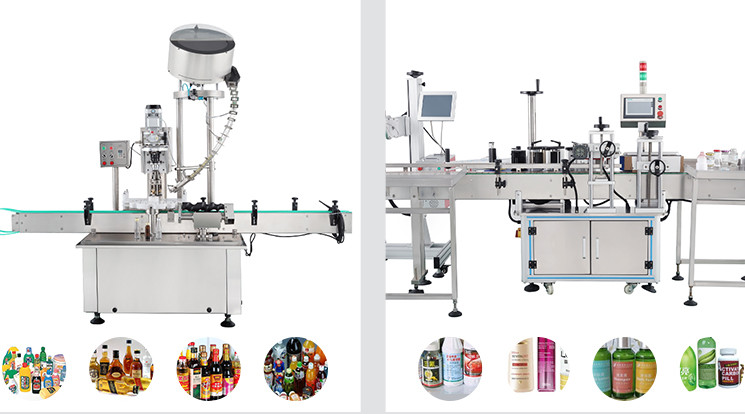

Shampoo capping machine.
capping speed, high pass rate, applied to food, pharmaceutical, cosmetic, pesticides, cosmetics and other industries of different-shaped screw-cap bottle.
|
Number of filling heads
|
2heads ~20heads |
|
Filling capacity
|
5～50ml, 50ml ~500ml, 500ml~5000ml
|
|
Filling form
|
equal liquid level self-flow type/ piston style
|
|
Filling speed
|
20-100 bottles / min
|
|
Filling accuracy
|
±1%
|
|
Material
|
304 stainless steel
|
|
Program control
|
PLC+ touch screen
|
|
Air pressure
|
0.6-0.8 MPa
|
|
Conveyor belt speed
|
0-15 m / min
|
|
Voltage (In China)
|
AC220V 50/60HZ Single phase
(Can customized as client need) |
|
Power(w)
|
1KW
|
|
Weight(kg)
|
1580kg
|
|
Machine size
|
according to requirement
|
Double row laundry detergent filling machine, laundry detergent filling machine, detergent filling machine, hand sanitizer filling machine, shampoo filling machine, quantitative filling machine, automatic filling machine, etc., different speeds, whole strips Filling and packaging line or stand-alone machine can be selected
