Plastic Bottle Cap Making Machine Automatic Bottle Filling And Capping Machine Capper Machine For Closed Mouth Of Bottle

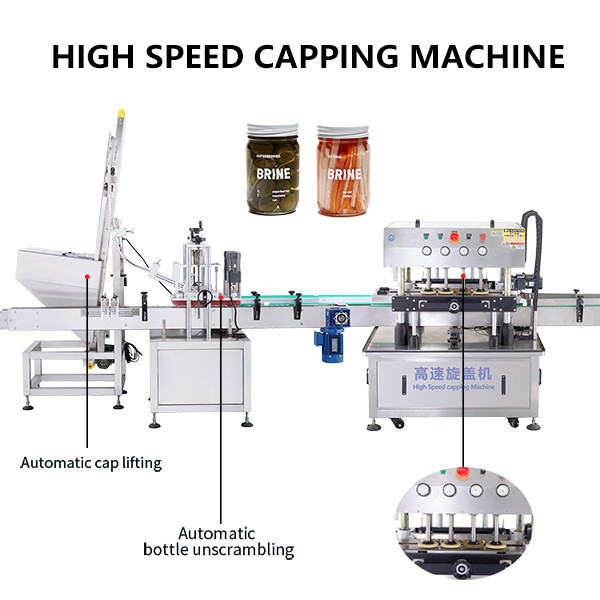

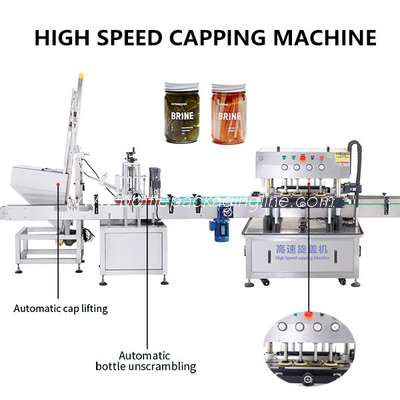

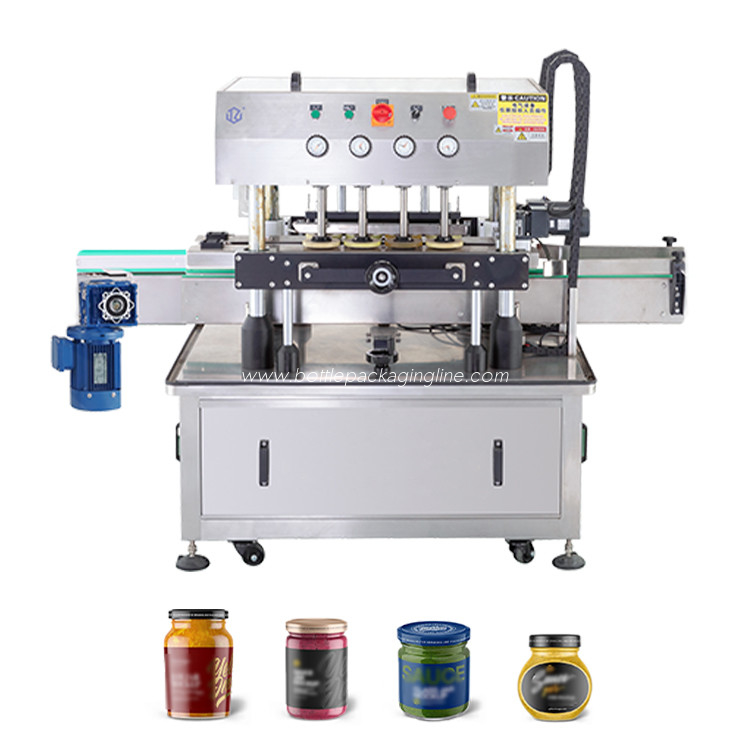

Product name: Linear high-speed capping machine

The linear high-speed capping machine is a general-purpose capping machine developed by our company to adapt to market demand,

introduce foreign technology, and adapt to a variety of specifications.

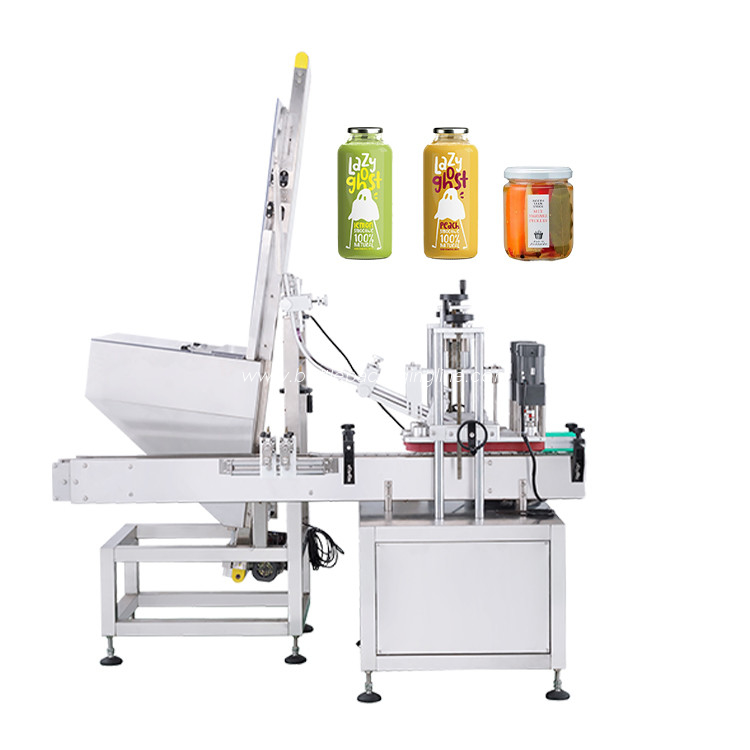

1. Electromagnetic vibration or lifting mechanism cover

2. The combination of two sets of bottle clamping chain belts is suitable for tall bottles or bottles that are unstable.

The capping is divided into two sets of initial rotation and re-rotation. The torque can be adjusted independently, and the tightness of the capping can be adjusted freely.

3. It has the characteristics of easy debugging and no damage to bottles and caps.

4. More practical. The sliding cover track has a large working space and is easy to adjust.

5. Continuous operation to complete automated production, save time and improve efficiency.

Main parameters of linear high-speed capping machine

1. Cap sorting method: vibrating plate or elevator

2. Capping speed: >=50 pieces/minute

3. Capping method: linear mold clamping bottle with 8 wheels and 8 pairs of rubbing type

4. Number of capping heads: 8 rounds

5. Bottle size: various specifications

6. Applicable bottle cap diameter: 9-11mm Applicable bottle height: 53-68mm

7. Production capacity: 60-80 bottles/minute

8. Power: 1.1KW

9. Program control: imported PLC touch screen human-machine interface

10. Capping power: >=99%

Can be customized according to each customer's requirements.
