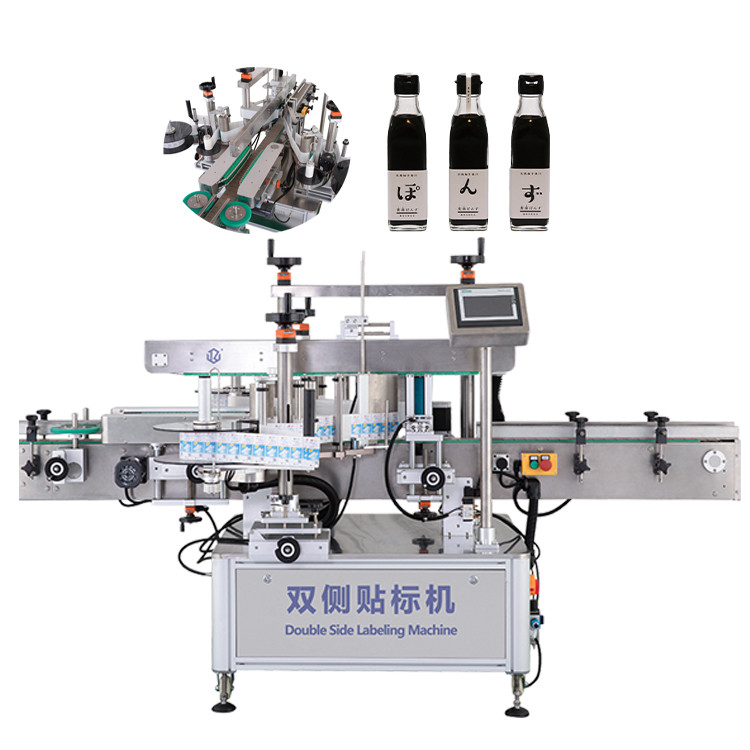

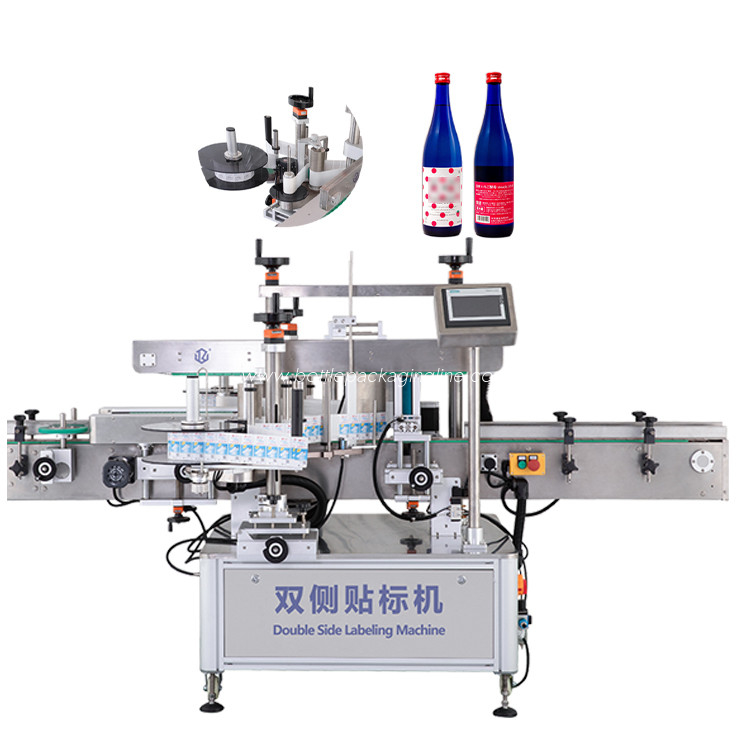

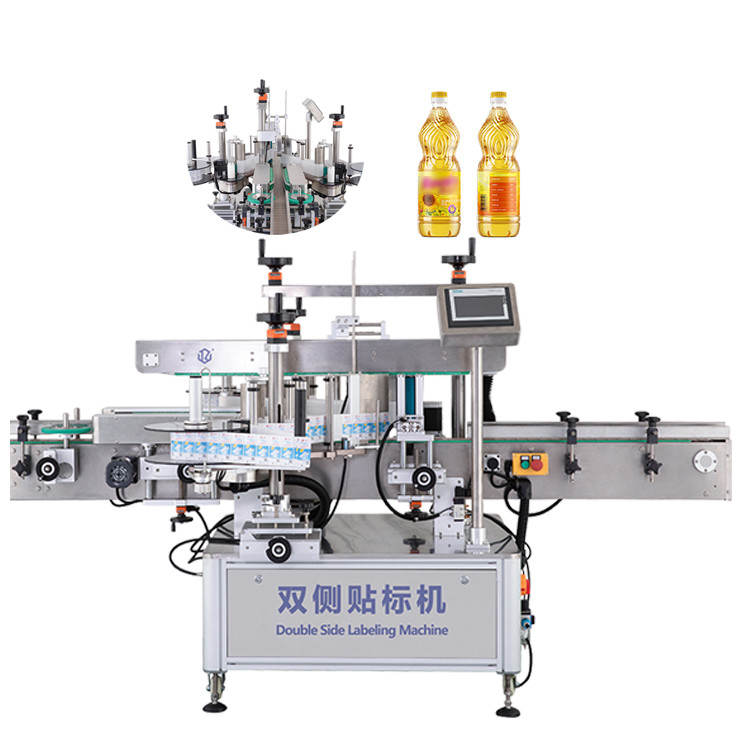

Jar Labeling Machine Auto Label Dispenser Automatic Bottle Labeling Machine

Basic Information
Place of Origin: China
Brand Name: Tengzhuo
Certification: CE Own patent
Model Number: WLM003
Minimum Order Quantity: One set
Packaging Details: film pack with wooden case
Delivery Time: 30-40 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 pcs per month
Automatic Grade: Double Side Automatic Labeling Machine Applicable Product Range: Square Bottles
Thickness: 20~90 (mm) Length: 50~200 Mm
Round Bottle: Diameter 35~90 (mm) Rated Voltage: 220V/50Hz
Machine Power: 2200W Labeling Accuracy: ±1.0 Mm

Double side automatic labeling machine technical parameters

Equipment introduction:

This machine is widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastic, printing and other industries;

such as shampoo flat bottles, pharmaceutical flat bottles, lubricating oil flat bottles, side veneers of boxes, etc.

Jar Labeling Machine Auto Label Dispenser Automatic Bottle Labeling Machine 0


It is controlled by a standard PLC + touch screen + standard sensor electronic control system.

The human-computer interaction interface has Chinese and English annotations and complete fault prompt functions,

operation teaching functions, and troubleshooting instructions; the labeling angle of the machine is adjustable, adapting to bottles with a sloped labeling surface.

It is suitable for labeling both sides of square bottles and the circumferential surface of round bottles,

and is suitable for positioning labeling of round bottles: easy to use and simple to maintain; it has the functions of labeling nothing,

automatic correction and automatic detection without labels; and optional coding and inkjet coding Function.

Jar Labeling Machine Auto Label Dispenser Automatic Bottle Labeling Machine 1

Applicable product range: Square bottles: thickness 20~90 (mm) length 50~200 and height 100~250 (mm)

Round bottle: diameter 35~90 (mm)

Applicable label range: height 20~80 (mm) length 20~200 (mm) non-transparent label

Production capacity: Square bottles: 40-80 bottles/minute Round bottles: 15-30 bottles/minute

Labeling error: square bottle ±1 mm (flat surface, left and right direction)

Round bottle ±1 mm (height direction) (excluding bottle and label errors)

Rated voltage: 220V/50Hz

Machine power: 2200W

Air pressure: 0.5-0.8Mpa

Can be customized according to customer requirements.
