Automatic Horizontal Round Bottle Labeling Machine Top Label Applicator Machine Product Labels For Cosmetic Bottle

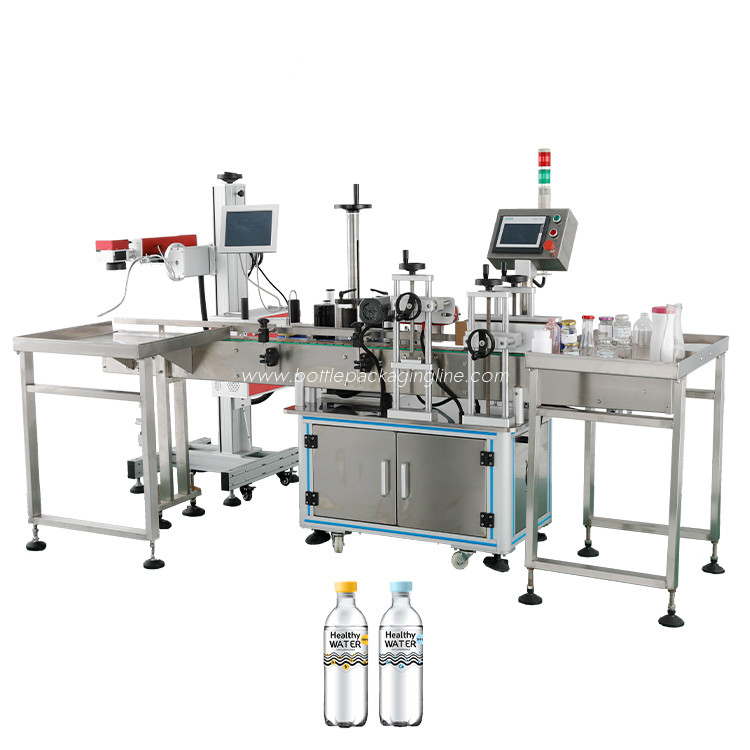

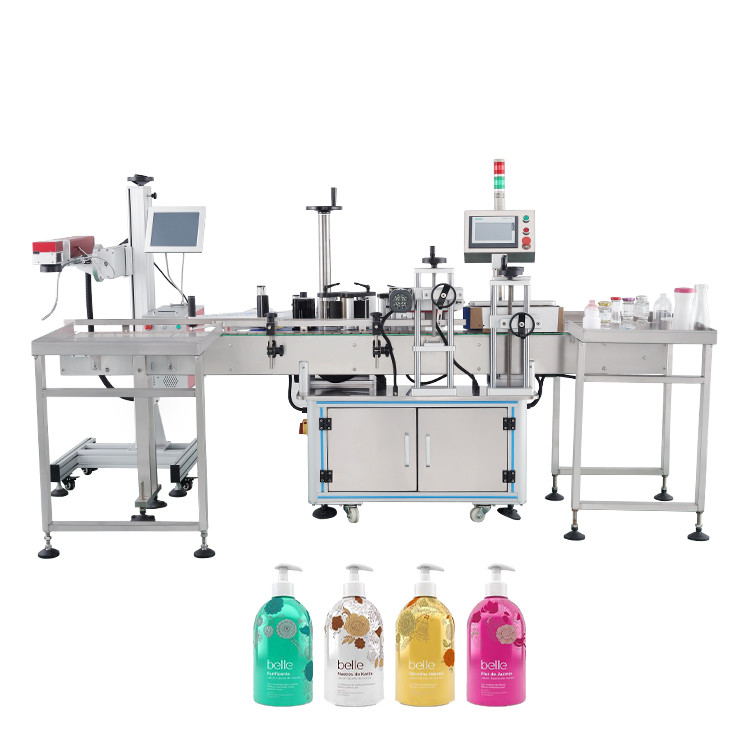

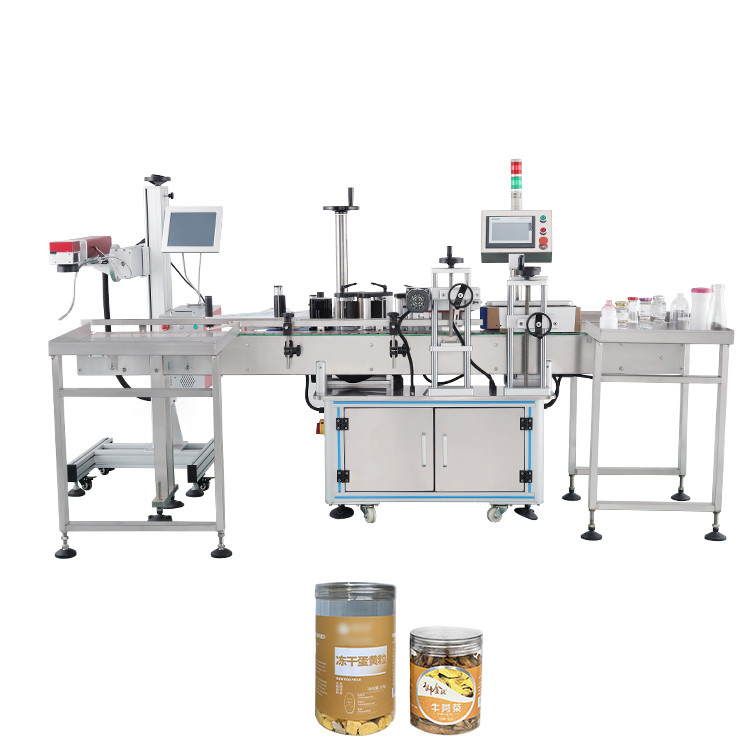

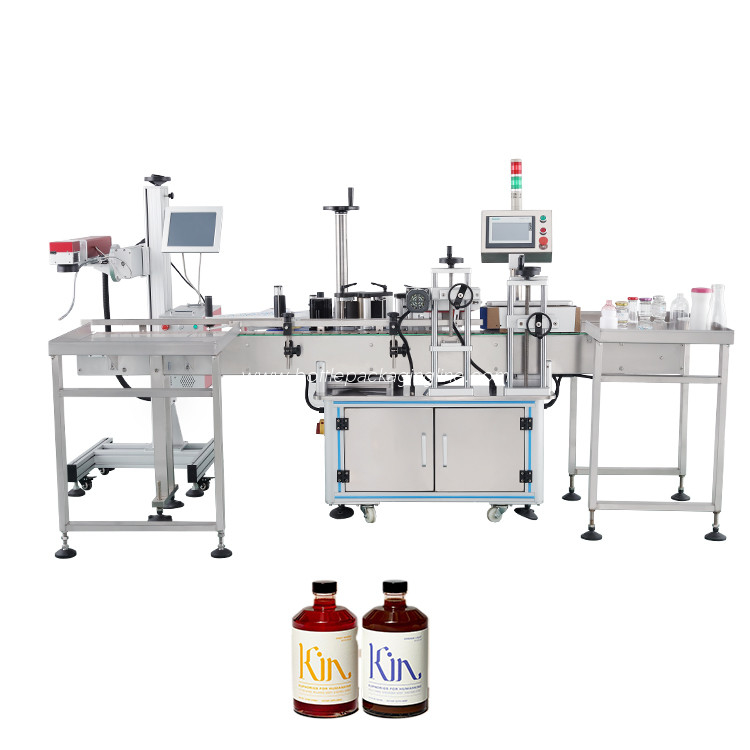

Fully automatic double-label labeling machine for round bottles

The fully automatic double-label labeling machine for round bottles is suitable for labeling the circumferential surface of round bottles.

It can label different parts of the upper and lower parts of the round bottle,

and can be used for two different types of labels.

The optional circumferential positioning detection device can realize labeling on the circumference.

Label the specified location on the surface.

It has powerful functions and can realize labeling of two kinds of labels at the upper and lower positions of round bottles at the same time;

High speed, double labels at different positions can be pasted at the same time, doubling the labeling speed;

Optional circumferential positioning detection device can realize labeling at designated positions on the circumferential surface;

Flexible application, can be produced by a stand-alone machine, or can be connected to a production line to achieve unmanned production;

Equipped with a top pressing device to prevent bottles from falling sideways and jumping, improve bottle labeling stability and labeling accuracy;

Using human-machine dialogue touch screen operation window, parameter modification is intuitive and clear, operation is simple, and various functions are easy to switch;

It has a wide range of applications and can be easily adjusted to label round bottles with a diameter of 40mm to 90mm;

It has the functions of labeling nothing, automatic correction without labels and automatic label detection to prevent label waste and missing labels;

The main materials of the equipment are stainless steel and high-grade aluminum alloy, which meet the needs of GMP production.

The overall structure is solid and beautiful;

It has fault alarm function, production counting function, power saving function (when there is no production within the set time, the equipment automatically switches to power saving standby state),

production number setting prompt function, and parameter setting protection function (parameter setting is managed by authority);

Applicable product diameter (for round bottles): φ15mm～90mm

Labeling accuracy (mm): ±1mm

Labeling speed (pcs/min): 30～65pcs/min

Weight (kg): about 160kg

Frequency (HZ): 50HZ

Voltage (V): 220V

Power (W): 1470W

Equipment dimensions (mm) (length × width × height): 1810 × 1100 × 1250

Air pressure (Mpa): 0.4～0.6Mpa
