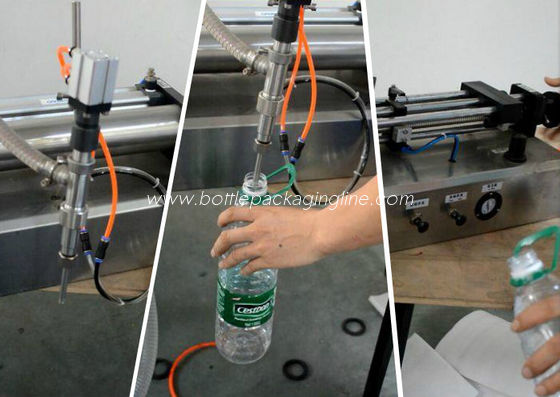

Industrial Semi Automatic Bottling Machine / Semi Automatic Liquid Filling Machine

Basic Information
Place of Origin: GUANGZHOU ,CHINA
Brand Name: TZ
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: wooden standard packing
Delivery Time: 7-55 work days.
Payment Terms: L/C, T/T, Western Union
Product Name: Semi Automatic Liquid Filling Machine Application: Food & Beverage Factory, Construction Works
Packaging Type: Barrel, Bottles Feature: Easy To Operate
Material: 304 Stainless Steel Filling Material: Flowing Liquid
High Light:

semi automatic liquid filling machine

,

semi automatic bottle filler



One Head Filling Machine



Suitable for pharmaceutical, daily chemical, food, pesticide and special industries. It is an ideal equipment for filling high-viscosity fluids. Because the machine works in an uncharged state, it is more secure and the humanized design is more in line with modern enterprises Claim;



Features:

This machine is a semi-automatic double-piston paste filling machine, which works without electricity and is safer to operate;

The design is reasonable, the model is compact, the operation is convenient

The material contact parts are made of 316L stainless steel, which meets GMP requirements;

With a filling volume adjustment handle, the filling speed can be adjusted arbitrarily, and the filling accuracy is high;

The filling bulkhead uses drip-proof, anti-drawing and lifting filling devices.

The filling is not limited by the shape and size of the bottle, and has strong adaptability



Advantages:

1. Adopts high-end gas pressure meter, the operation is more accurate.

2. Machine dynamic structure section adopts Germany FESTO and Taiwan Air TAC etc pneumatic components, material contact parts are made of 304L stainless steel, meet GMP approval request.
3. Precise check valve, long working life, ensure the filling product can run smoothly.
4. Filling accuracy is high, within filling range, the filling volume and filling speed can be set at your option.

5. Filling heads adopt drip-proof and lifting filling device.





Parameters:

Machine model TZ-100F TZ-300F TZ-500F TZ-1000F TZ-2500F TZ-5000F
Filling range 5-100ml 10-300ml 50-500ml 100-1000ml 300-2500ml 1000-5000ml
Filling speed 15-35 bottles/min
Filling error ≤±1%
Voltage AC 220V 50Hz / 110V 60Hz
Air pressure 1.5Hp air compressor ; 0.4-0.6mpa air pressure
Dimension(cm) 86*29*32 86*30*32 89*33*34 92*34*34 94*35*39 95*48*47
Net weight 32kg 33kg 34kg 36kg 43kg 52kg



We use Famous brand electrical parts to keep the machine with high quality.
