| Place of Origin: | GUANGZHOU ，CHINA |
|---|---|
| Brand Name: | TZ |
| Minimum Order Quantity: | one set |
| Price: | Negotiable |
| Packaging Details: | wooden standard packing |
| Delivery Time: | 7-55 work days. |
| Payment Terms: | L/C, T/T, Western Union |
| Product Name: | Semi Automatic Bottling Machine | Application: | Food & Beverage Factory, Construction Works |
|---|---|---|---|
| Packaging Type: | Barrel, Bottles | Feature: | Easy To Operate |
| Material: | 304 Stainless Steel | Filling Material: | Flowing Liquid |
| High Light: | one head filling machine,semi automatic liquid filling machine |
||

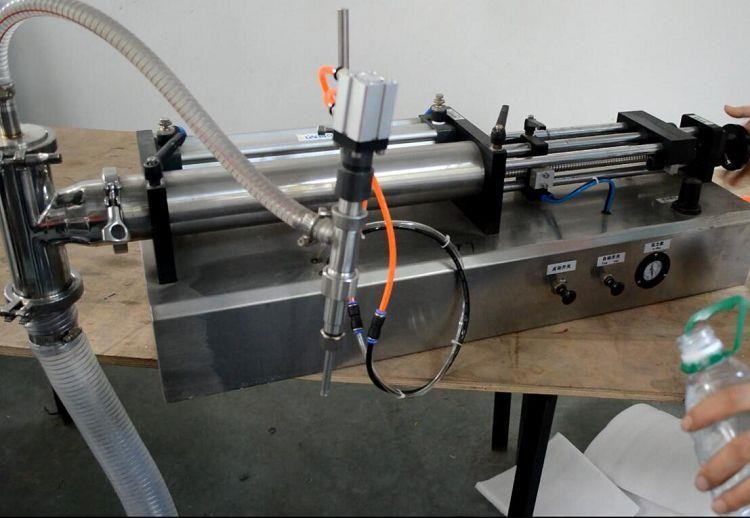

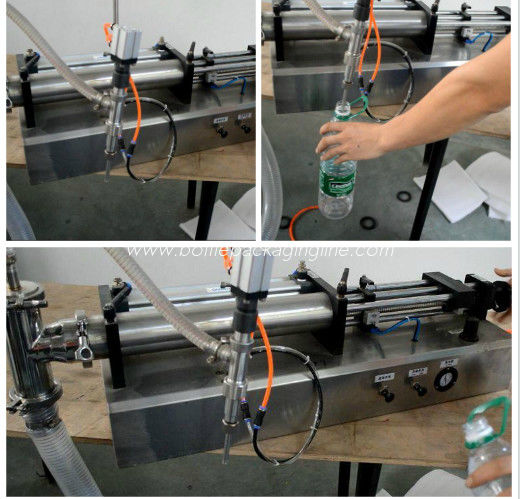

One Head Filling Machine
Advantages:
1. Adopts high-end gas pressure meter, the operation is more accurate.
2. Machine dynamic structure section adopts Germany FESTO and Taiwan Air TAC etc pneumatic components, material contact parts are made of 304L stainless steel, meet GMP approval request.
3. Precise check valve, long working life, ensure the filling product can run smoothly.
4. Filling accuracy is high, within filling range, the filling volume and filling speed can be set at your option.
5. Filling heads adopt drip-proof and lifting filling device.
Features:
1. Adopts high-end gas pressure meter, the operation is more accurate.
2. Machine dynamic structure section adopts Germany FESTO and Taiwan Air TAC etc pneumatic components, material contact parts are made of 304L stainless steel, meet GMP approval request.
3. Precise check valve, long working life, ensure the filling product can run smoothly.
4. Filling accuracy is high, within filling range, the filling volume and filling speed can be set at your option.
5. Filling heads adopt drip-proof and lifting filling device.
Parameters:
| Machine model | TZ-100F | TZ-300F | TZ-500F | TZ-1000F | TZ-2500F | TZ-5000F |
| Filling range | 5-100ml | 10-300ml | 50-500ml | 100-1000ml | 300-2500ml | 1000-5000ml |
| Filling speed | 15-35 bottles/min | |||||
| Filling error | ≤±1% | |||||
| Voltage | AC 220V 50Hz / 110V 60Hz | |||||
| Air pressure | 1.5Hp air compressor ; 0.4-0.6mpa air pressure | |||||
| Dimension(cm) | 86*29*32 | 86*30*32 | 89*33*34 | 92*34*34 | 94*35*39 | 95*48*47 |
| Net weight | 32kg | 33kg | 34kg | 36kg | 43kg | 52kg |
We use Famous brand electrical parts to keep the machine with high quality.
