Stable Performance Liquor Bottle Filling Machine 0.6-0.8 Mpa 380V / 50HZ

Basic Information
Place of Origin: guangzhou ,china
Brand Name: tengzhuo
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: wooden standard packing
Delivery Time: 7-55 work days.
Payment Terms: L/C, T/T, Western Union
Product Name: Wine Packaging Production Line Application: Food & Beverage Factory, Construction Works
Packaging Type: Barrel, Bottles Feature: Easy To Operate
Material: 304 Stainless Steel Filling Material: Flowing Liquid
High Light:

paint filling equipment


shampoo bottle filling machine

Wine Packaging Production Line

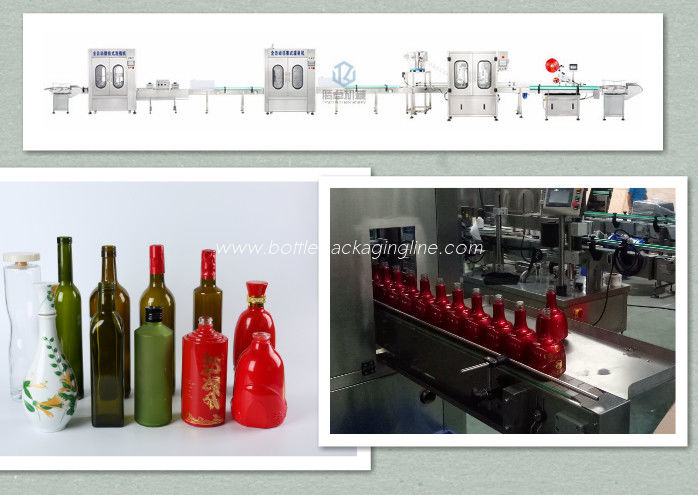

Wine Packaging Production Line also call wine filling machine line, it include Wine bottle washing, drying, filling, capping, labeling and labeling production line.

Features of Fully Automatic Wine Packaging Production Line:

1. Fully automatic production line process: manually put bottles on the bottle feeding turntable-automatic bottle washing-automatic high-temperature drying and sterilization-artificial light inspection-automatic filling-automatic capping and lower cover-automatic capping-automatic coding-automatic Labeling-manual bottle collection


2. This line adopts flip-type bottle washing, high-pressure washing inside the bottle

Filling with servo-driven piston for quantitative filling, no leakage, no pollution, simple maintenance, high filling accuracy and stable filling.

The screw cap uses an oil-free vacuum pump for vacuum capping. The vacuum degree is high and the equipment is easy to adjust.

Laser coding is used for coding, environmental protection, production date will never fade, and easy maintenance


Labeling adopts servo motor and imported electric eye induction, accurate labeling, high labeling accuracy, no wrinkle evenly


3. The whole line is made of food-grade stainless steel, which is easy to clean and disinfect, and meets the national regulations and requirements on food machinery and food hygiene.

The overall organic glass cover design is used to prevent impurities from entering the filling material, which is safe and hygienic.


4. Technical parameters:

(1) Applicable bottle width: customized according to customer products

(2) Applicable bottle height: can be customized according to customer products

(3) Filling capacity: 100-1000ml (the remaining specifications can be customized as required)

(4) Filling heads: customized according to production requirements

(5) Filling accuracy: ± 1% (equal volume filling)

(6) Production speed: customized according to output requirements

(7) Air pressure: 0.6-0.8Mpa

(8) Air consumption: 200 liters / minute

(9) Power supply: 380V / 50HZ, three-phase five-wire system

(10) Whole line power: 23KW

This production line is also suitable for the packaging of sauces, hot sauces, fruit drinks, etc.Stable Performance Liquor Bottle Filling Machine  0.6-0.8 Mpa 380V / 50HZ 0
