High Efficiency Automatic Bottle Washing Machine Easy To Operate

High Efficiency Automatic Bottle Washing Machine Easy To Operate

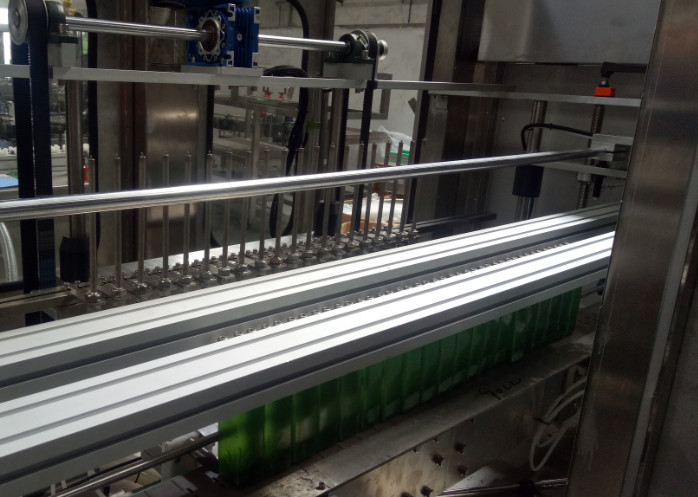

Automatic bottle washing machine.

Automatic bottle washing machine is flushed with high-pressure water for a long time to rinse the inner bottle. After the flushing is completed, the water is shut off. At the same station, the high-pressure clean air source is used to dry the inner wall of water. The equipment is suitable for various bottle shapes such as round neck bottles, flat bottles and square bottles. It is very suitable for many types of bottles.

Automatic bottle washing equipment suitable for food product bottles. The machine has a reasonable design, rigorous structure, and closed production to ensure no pollution during the production process. It is each liquor, wine. Fruit wine factory, sauce factory, instant bird's nest factory, ideal production equipment. Developed on the basis of digesting and assimilating Italian advanced technology.

Compared with other similar products, the advantages are:

1. The bottle rinsing speed is fast. The bottle rinsing speed of the machine reaches 1000-3000 bottles / hour. Save time and labor. Variable frequency speed regulation can be adjusted arbitrarily according to production needs.

2. A flushing channel is set up to reduce water consumption.

3. The water separating valve strictly controls the bottle flushing and bottle control time to ensure that the bottle is flushed clean. There is no water in the bottle after the bottle is controlled.

4. The height can be adjusted electrically and the operation is simple.

5. A wide range of applicable bottles, except for special shaped bottles, most regular bottle types can be applied.

6, advanced jaw processing precision, reliable work and long service life.

7. Each position is equipped with a limit position device, and it will automatically shut down in case of failure to protect the equipment from damage.

Features:

1. For glass bottles, tinplate, plastic bottles, etc.

The bottle washing machine uses a water pump to circulate spray cleaning. The machine turns the bottle upside down and cleans the bottle at high pressure without dead ends.

2. Rinse with water, then blow with air to blow the water from the top down, so that the inner wall of the bottle will have less water droplets.

3. The washing water can flow away or be designed to use a circulating water pump, so that the water in the water tank can be used optimally.

4, made of food-grade stainless steel, stainless steel conveyor chain conveyor speed can be adjusted.

Technical Parameters:

• Production capacity: customized 4, 6, 8, 10, 12, 14, and 16 heads according to demand
• Power source: 380V/220V 50Hz
• Machine power: 2KW
• Gas source: 0.6~0.8Pma clean air source
• Washing medium: filter water, use water once, compress air.
• Program control: PLC + touch screen man-machine interface.
