Four Wheel Pinch Linear Capping Machine Electrically Controlled Movement

Basic Information
Place of Origin: GUANGZHOU ,CHINA
Brand Name: TZ
Minimum Order Quantity: one set
Price: Negotiable
Packaging Details: wooden standard packing
Delivery Time: 7-55 work days.
Payment Terms: L/C, T/T, Western Union
Application: Beverage, Medical, Chemical Type: Four Wheel Pinch Capping Machine.
Driven Type: Electric Feature: Convenient Operation
Warranty: 1 Year Packaging Type: Bottles Packaging Material: Glass, Metal, Plastic Condition: New
High Light:

automatic bottle capping machine


bottle capping equipment

Four Wheel Pinch Capping Machine.


The four-wheel pinch-type capping machine mainly uses pneumatic components to complete the pinning action. It is equipped with a capping (pressing) device that can be used or not. The cap body can be pressed during the capping process to ensure a more stable capping. It is suitable for twisting the screw caps of round bottles and flat bottles (pots) of various materials to complete the capping of bottles.


Four Wheel Pinch Capping Machine structure is simple and easy to adjust. There is no need to change accessories when changing the bottle type, and only the position of individual parts needs to be adjusted. During the capping process, the bottle can be capped without caps.


● digital display, intuitive and clear;


● The control panel is a touch-type button, which is comfortable and sensitive.


● Hand wheel type lifting adjustment, easy to use;


● Electrically controlled movement, bottle positioning mechanism, easy to operate;


● The torque can be adjusted to effectively protect the cap from damage, and the tightness can be adjusted according to different caps


● Small size, full functions, both automatic and manual;


● Suitable for lock caps of various types of bottles, such as food, cosmetics, pharmaceuticals, daily chemicals, etc.




● capping height: 30-300mm


● capping speed: 1000-2500bottle/hour


Have different style: semi-automatic Pinch Capping Machine, automatic pinch capping machine, one track, two track, three track for you choose.

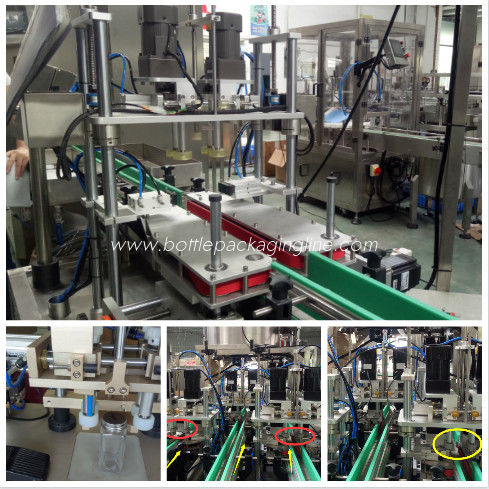

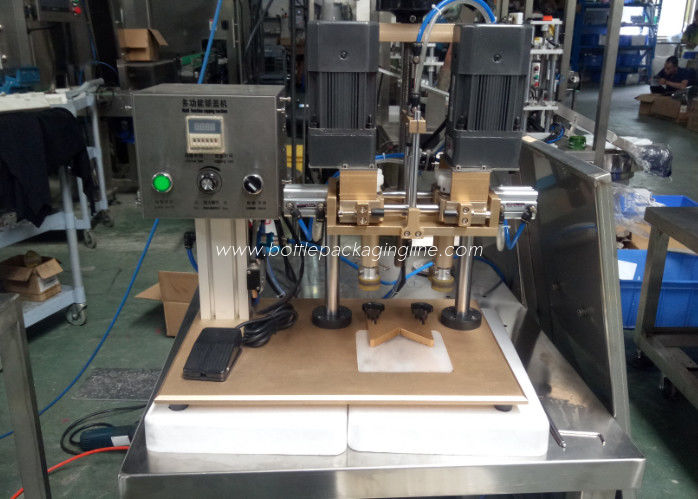

Four Wheel Pinch Linear Capping Machine Electrically Controlled Movement 0
