| Place of Origin: | GUANGZHOU ，CHINA |
|---|---|
| Brand Name: | TZ |
| Minimum Order Quantity: | one set |
| Price: | directly factory offer |
| Packaging Details: | export wooden case packing |
| Delivery Time: | 45 work days. |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Automatic Grade: | Fully Automatic | Key Selling Points: | Easy To Operate |
|---|---|---|---|
| Feature: | Effective Filling And Sealing | Package Weight: | 78kg |
| Packaged Size: | 1060mm*815mm*555mm | Machine Size: | 450mm*450mm*1060mm |
| Machine Weight: | 47kg | Bottle Neck Diameter: | 20mm-120mm |
| High Light: | Induction Aluminum Foil Sealing Machine,Electromagnetic Aluminum Foil Sealing Machine,PLC Conduction Sealing Machine |
||

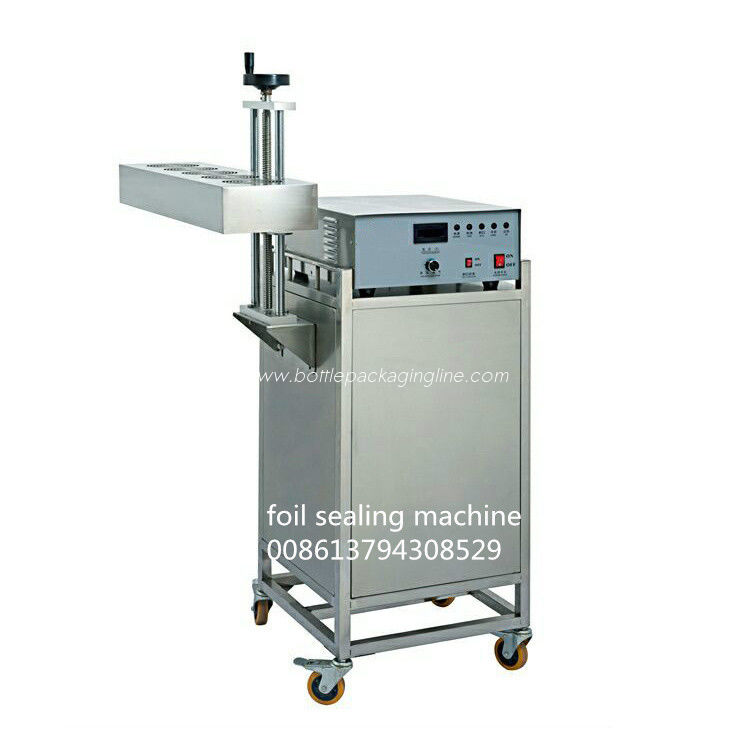

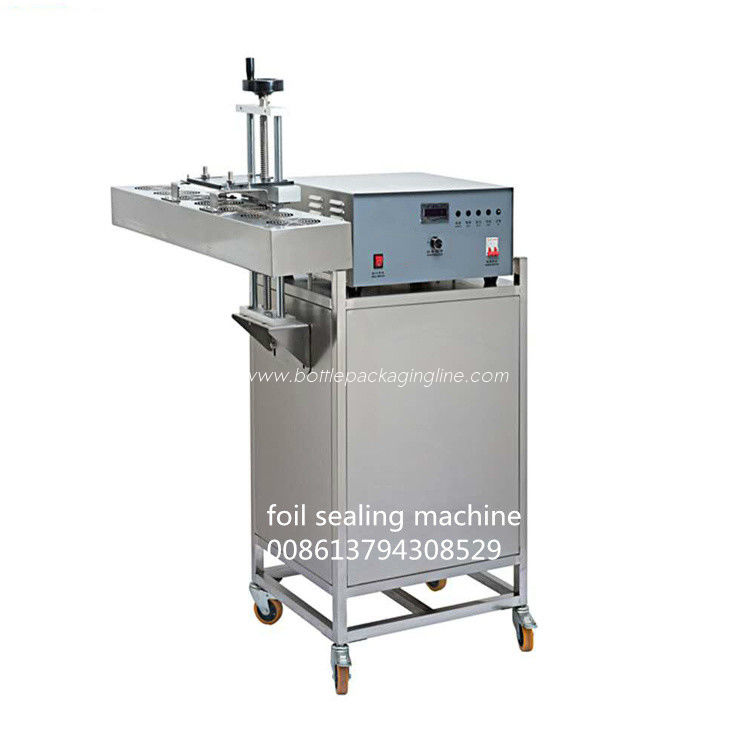

Continuous electromagnetic induction aluminum foil sealing machine
Scope of application:
Suitable for sealing plastic bottles and glass bottles of pesticides, medicines, foods, cosmetics, oils, etc.
Technical Parameters
1. Number of filling heads: 1 head. 2 head, 4 head. 6head
2. Filling capacity: 100ml to 5000ML
3. Filling form: full servo drive filling
4. Filling speed: about 1800-2000 bottles / hour for 1head.
5. Filling accuracy: ±1%
6. Material: 304 stainless steel for filling frame
7. Program control: PLC + touch screen
8. Filling mouth and trough contact liquid parts material: 304# stainless steel, food grade PVC
9. Air pressure: 0.6-0.8MPa
10. Conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min, height 750mm or 850mm ± 25mm off the ground
11. Conveying motor: 370W variable frequency speed regulating motor
12. Power: about 4KW/AC220V 50/60HZ
13. Tank capacity: approx. 150- 200 liters (with level switch).
Technical parameters:
| bottle neck diameter | 20mm-120mm |
| bottle height | 0-490mm |
| flow packing line speed | 0-10m/min |
| max power | 2000W |
| sealing speed | 0-200blts/min |
| electricity power | 220V, 50/60Hz |
| Induction sensor size (L*W*H) | 665mm*170mm *100mm |
| machine size | 450mm*450mm*1060mm |
| machine weight | 47kg |
| packaged size | 1060mm*815mm*555mm |
| package weight | 78kg |
Can be customized according to the actual situation of the customer
any question, please contact with Cindy freely, 008613794308529, 36226571@qq.com, thanks
