1500 Bottles / Hour Vacuum Capping Machine For Filling Sealing

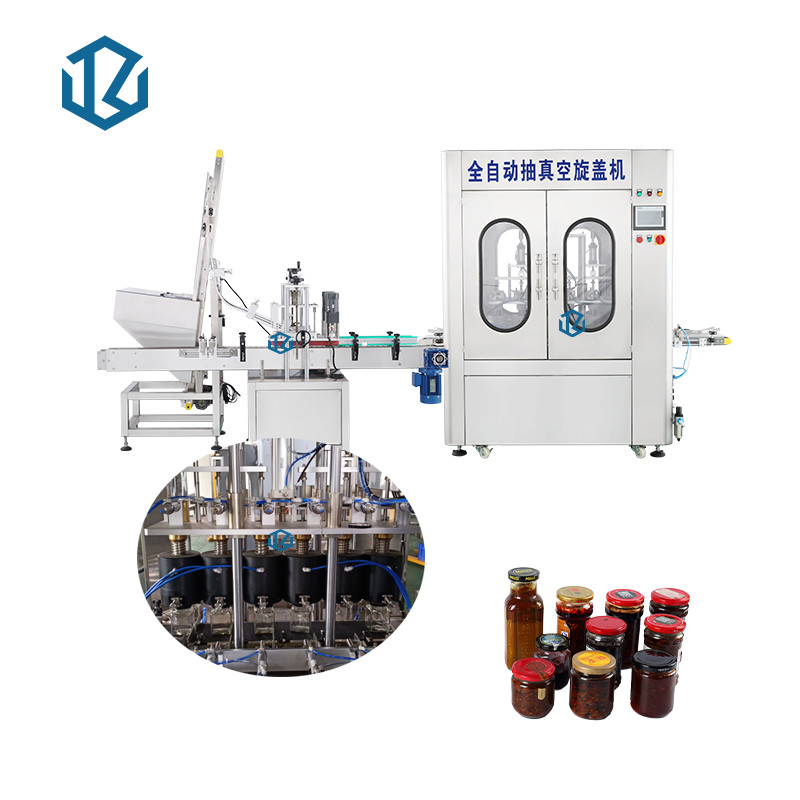

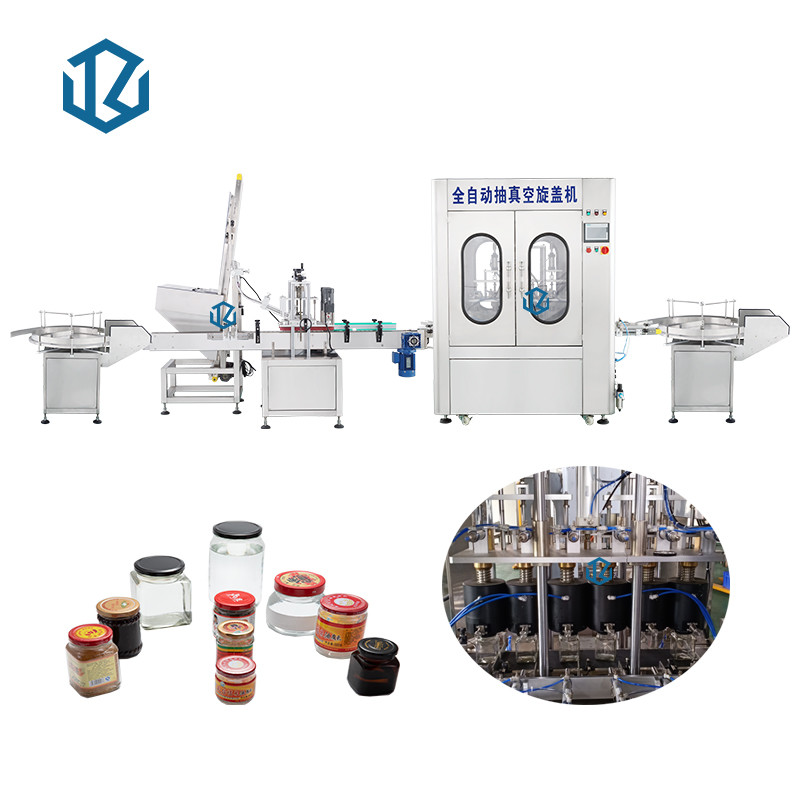

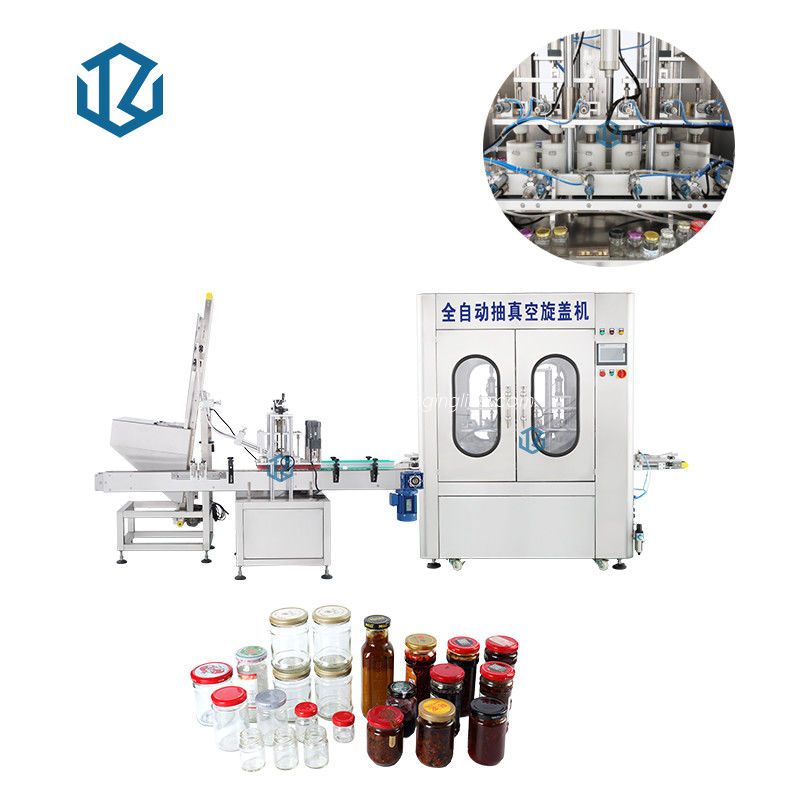

Glass Jar Twist Off Cap Vacuum Capping Machine

Glass Jar Twist Off Cap Vacuum Capping Machine is suitable for automatic sealing of special-shaped glass screwing bottles such as condiments, sauces, jams, etc., and has a vacuum function, suitable for the production of various foods such as fruits, beverages, and sauces; the machine has operation Stability, high vacuum, and sealing quality in line with standards. The key components are processed by high-precision equipment, and the machining accuracy is improved to ensure the stability of the entire machine. It is realized that the air in the bottle is sucked out while the cap is screwed, so that the food can be better stored.

• Principle and characteristics: The automatic capping machine is mainly suitable for screw caps of different glass bottles and metal caps.

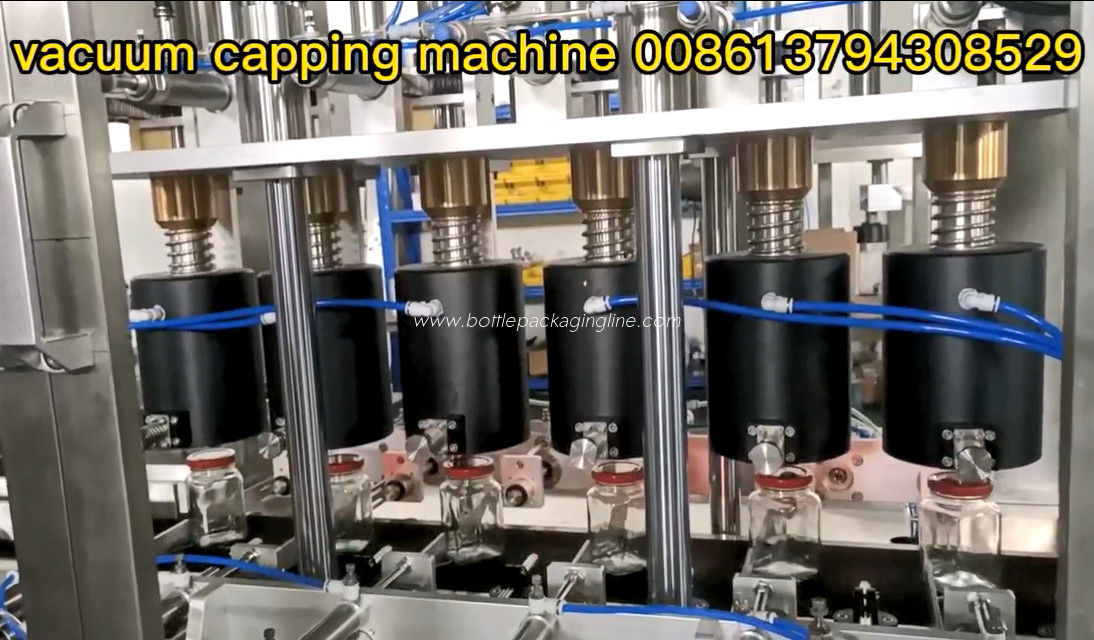

• Equipped with a constant torque capping head, and the vacuum suction can be easily adjusted.
• The structure is compact and reasonable, and it can be easily linked with other equipment into a line. The dust cover can be purchased.
• Machine advantages: linear design, easy and beautiful assembly line.

Glass Jar Twist Off Cap Vacuum Capping Machine main Material: Outer body 304# stainless steel.

Cover arrangement method: ladder belt lifting mechanism cover

Suitable bottle specifications: according to the sample provided by the customer

Lower cover form: mechanical lower cover can be added

Screw cap form: vacuum seal screw cap

Speed: 1500-2000 bottles/hour

Material: stainless steel frame

Program control: frequency converter speed regulation

Conveyor belt: 82mm or 114mm wide stainless steel chain belt, speed 0-15m/min, height above ground 750mm±25mm

Power of the whole machine: about 0.6KW

Air pressure: 0.6-0.8MPa

Glass Jar Twist Off Cap Vacuum Capping Machine for food sauce jam is suitable for the sealing of the tinplate cap after the food is filled in the glass bottle, and the vacuum is good, which is convenient for the better storage and maintenance of the food.
