| Place of Origin: | guangzhou ，china |
|---|---|
| Brand Name: | tengzhuo |
| Model Number: | TZ-p50 |
| Minimum Order Quantity: | one set |
| Price: | directly factory price offer |
| Packaging Details: | wooden standard packing |
| Delivery Time: | 20 work days. |
| Payment Terms: | L/C, T/T, Western Union |
| Key Selling PointsEasy To Operate: | Easy To Operate | Packaging Type: | Cartons, Case |
|---|---|---|---|
| Automatic Grade: | Semi-automatic | Power Consumption: | 240W |
| Machine Weight: | 120kg | Model: | TZ-p50 |
| Type: | SEALING MACHINE, Top & Bottom Drive Belt | Condition: | New |
| High Light: | 240W Box Sealing Machine,20m/min Box Sealing Machine |
||
Semi-automatic top and bottom box sealing machine
Introduction:
Manual adjustment of width and height according to carton specifications,
Drive both sides of the belt, top and bottom box sealing, economic, fast, smooth,
Equipped with blade protection device, to avoid accidental stab wounds during operation,
Can be operated separately, can also be used with automated packaging lines.
|
Model |
TZ-p50 |
|
Conveyor speed |
0-20m/min |
|
Max size |
L600～W500×H500mm |
|
Min size |
L150×W150×H120mm |
|
Power consumption |
240W |
|
Power supply |
110v,220-240v/50-60Hz,1Phase |
|
Tape width |
W48mm,60mm,75mm(Select one to use) |
|
Outer packaging Dimensions |
L1020×W850×H1350mm(Does not include front and rear drum rack) |
|
Machine weight |
120kg |
Semi-automatic top and bottom box sealing machine

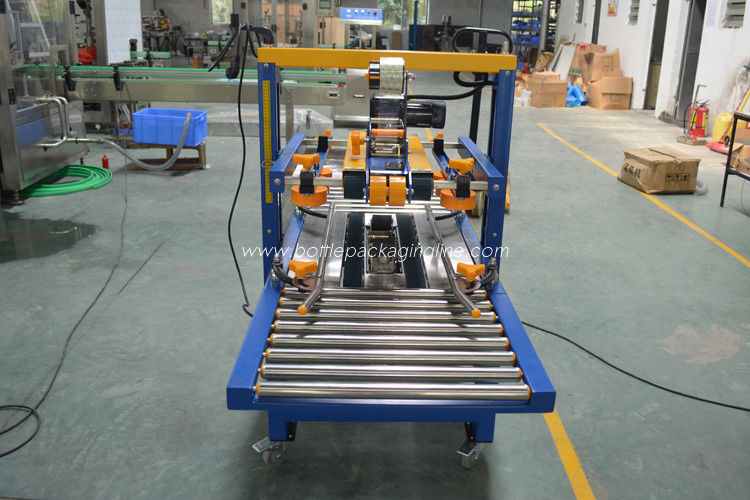

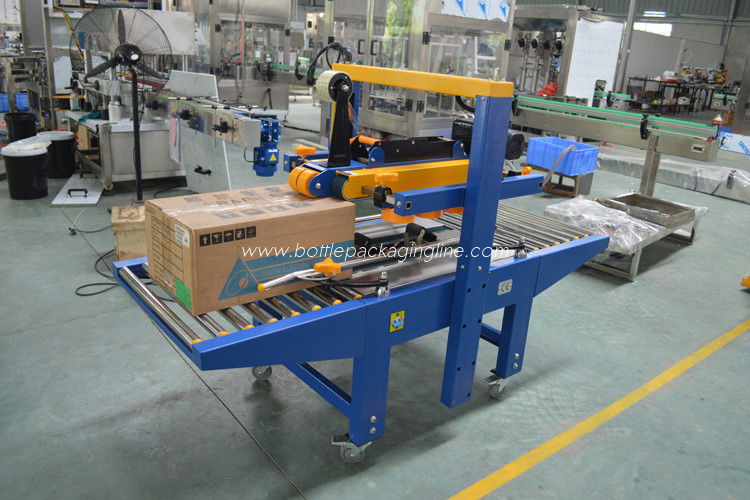

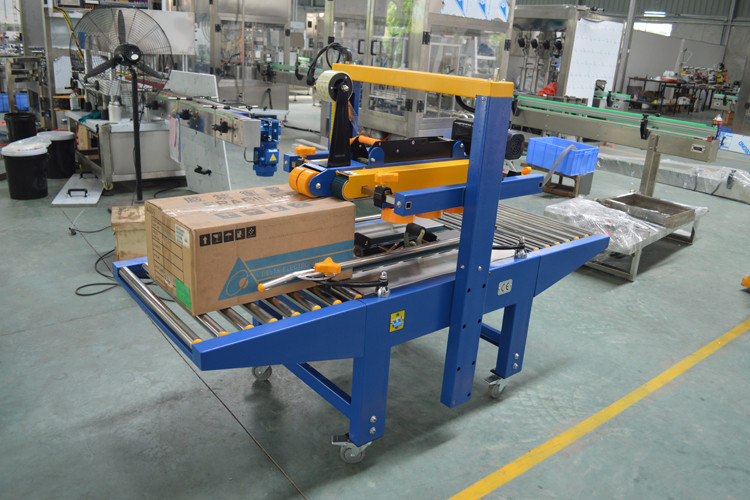

photo reference
Semi-automatic top and bottom box sealing machine
suitable for carton automatic folding and sealing machine, which automatically folds the lid and automatically sticks the tape up and down; the carton is sealed with instant tape, and the sealing effect is smooth and beautiful. The sealing tape is reserved for 5cm, up to 20 boxes per minute, which can meet the storage requirements. Outbound transportation and packaging requirements. At the same time, it can be used with labeling machine, weighing machine, strapping machine and winding machine.
(Above is the standard model technical parameters, other special requirements and functions, can be customized!)
any question for Semi-automatic top and bottom box sealing machine, please contact with Cindy freely, 008613794308529, 36226571@qq.com, thanks
