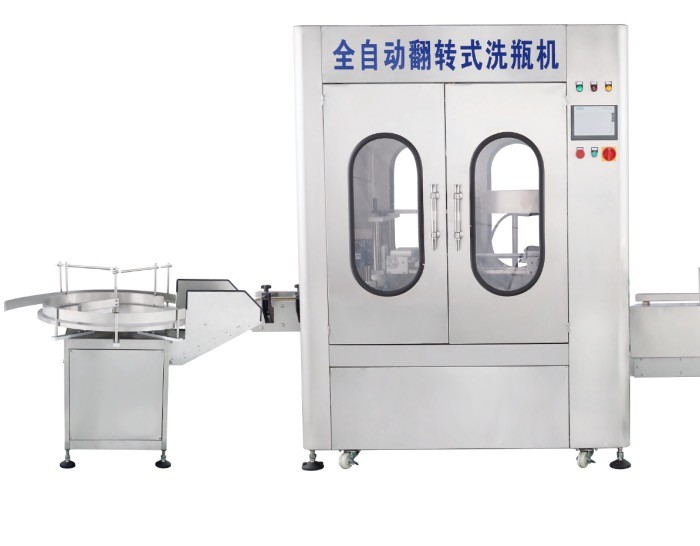

PLC Touch Screen Muti Heads Flip Bottle Washer Machine

PLC Touch Screen Muti Heads Flip Bottle Washer Machine 304 Stainless Steel

Food filling machine line are wisely use in food packing industry and it is mainly composed of glass bottle cleaning bottle, filling, locking cap and labeling.

muti Heads Flip Bottle Washer Machine

1. Number of bottle washing heads: 4-10 nozzles
2. Suitable specifications: according to the sample provided by the customer
3. Washing bottle form: the bottle is inverted, first blowing water and then blowing air
4. Washing speed: about 1000-3000 bottles / hour (the speed will be different depending on the set blowing time)
5. Program control: PLC + touch screen
6. Air pressure: 0.6-0.8MPa
7. Conveyor belt: 82mm wide stainless steel chain belt, speed 0-15 m / min
8. Power: about 2.3KW/AC220V/380V 50/60HZ
9. The washing chamber is sprayed with a fixed nozzle, the pneumatic nozzle is used to blow the water nozzle, and the lower chamber is a water discharge tank.
Outside the waste water removal tank, the cleaning chamber is equipped with a plexiglass shield.
10. Washing medium: filter water, use water once, sterile compressed air.

Piston Filling Machine(with add Heating and warming and stirring function)

BKCC03 Automatic high speed rotary detergent bottle Filling capping packing Machine line Price

1) This machine has compact structure, flawless control system, and is convenient To operate with high grade automatism
2) All the parts contacting the media are made of high quality stainless steel, Able to bear corrosion and easily rinsed
3) Adopts high precision and high speed ration filling valve so that the oil level is exact with loss, ensuring high quality filling
4) The capping head has constant twisting movement, which ensures capping Quality, without damaging caps
5) Adopts high efficiency cap tidying system, with flawless equipment for feeding caps and protecting
6) Needs only to change the pinwheel, bottle entering screw and arched board when changing bottle models, with simple and convenient operation
7) There is flawless equipment for overload protecting, which can protect effectively machine and operator safety

Function Declaration

Washing Part

Function : washing bottle inside and outside dust .
<1> All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2> 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

Filling Part

Fucntion : filling water into bottle .
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

technical parameter:

1. Number of filling heads: 2~16heads
2. Filling capacity: base on customer bottles and caps
3. Filling accuracy: ±1%
4. Program control: PLC + touch screen
5. Filling mouth and trough contact liquid parts Material: 304# stainless steel, food grade PVC
6. Air pressure: 0.6-0.8MPa
7. Power: about 3KW/AC220V/380V 50/60HZ

Vibration disk lower cover lock machine
1. Covering method: electromagnetic vibration plate cover (different specifications need to replace the vibration plate)
2. Suitable specifications: according to customer's model
3. Form of lower cover: automatically cover the lower cover
4. Lock cover form: double electric lock cover
5. Machine power: about 2KW
6. Pressure: 0.6-0.8MPa
