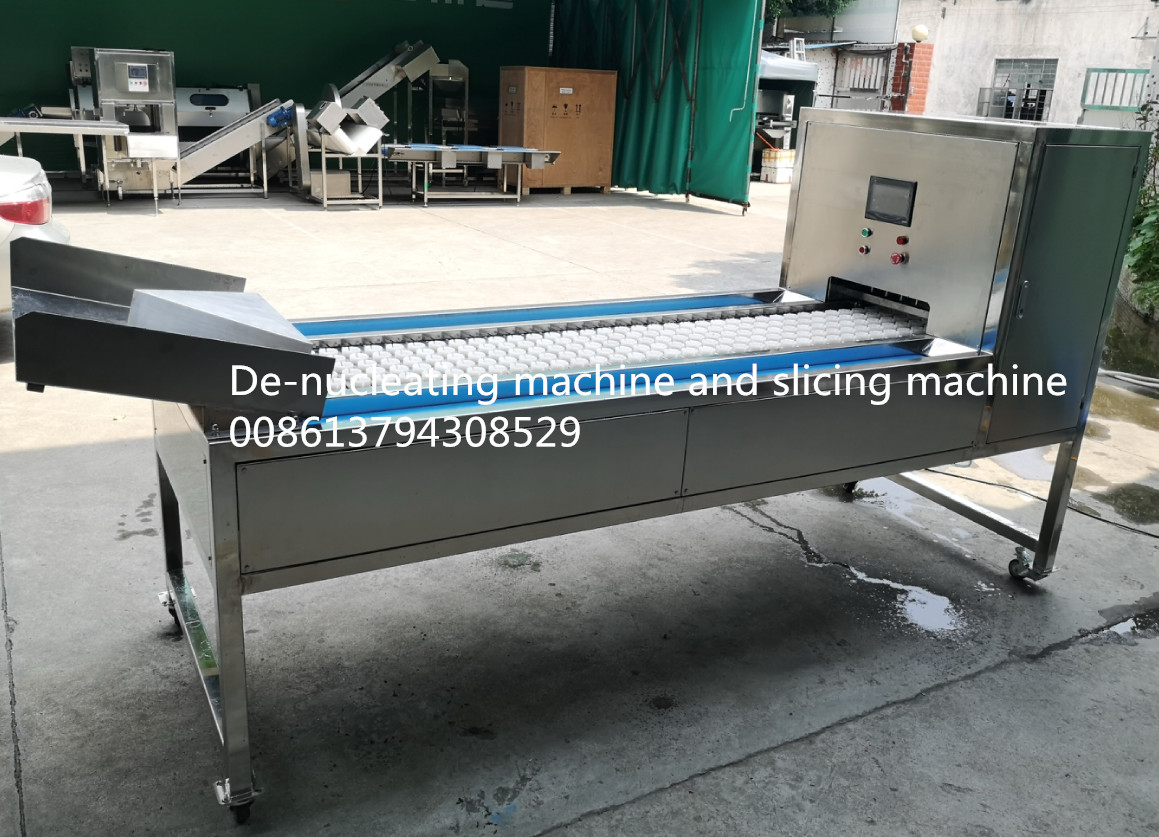

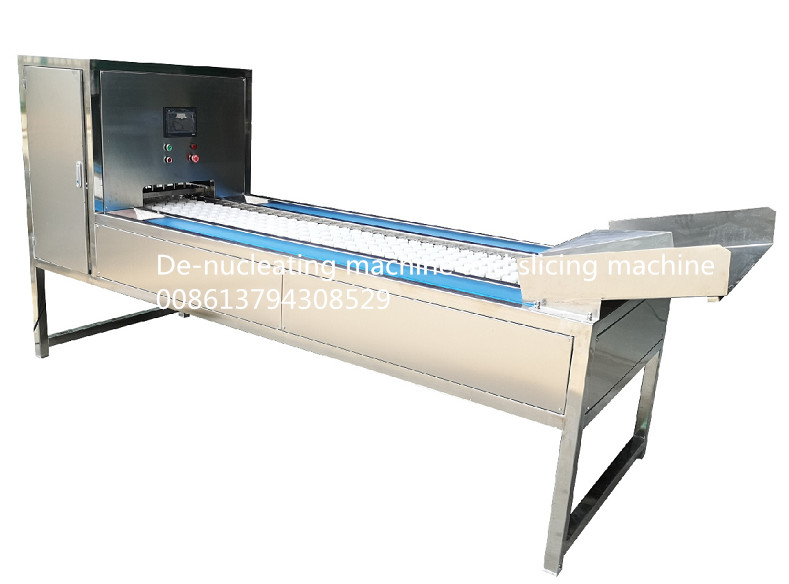

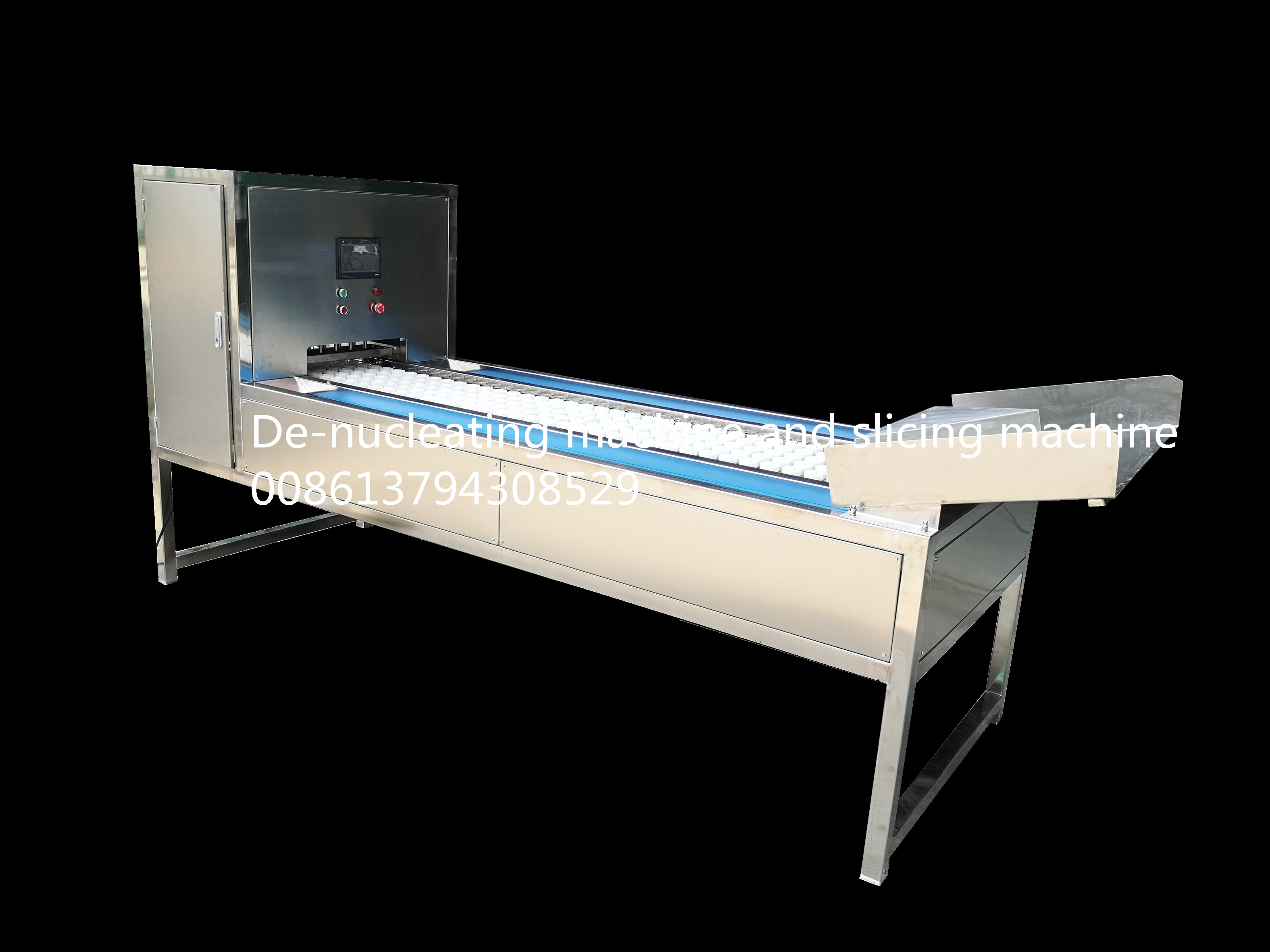

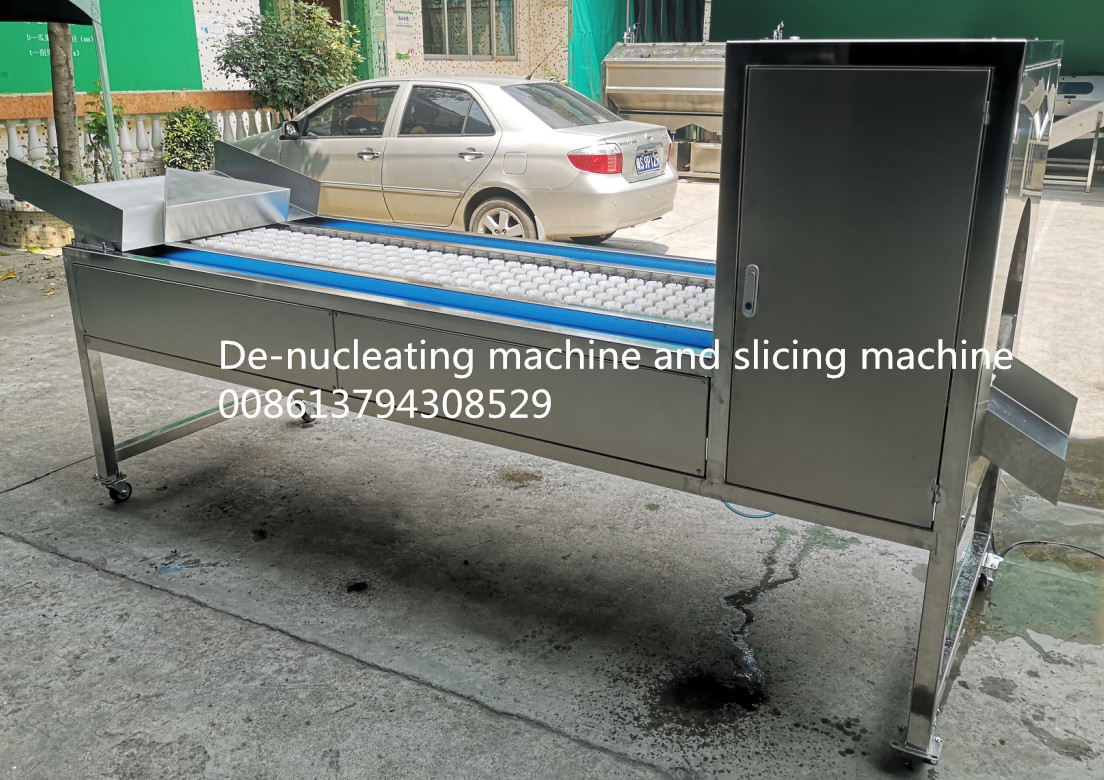

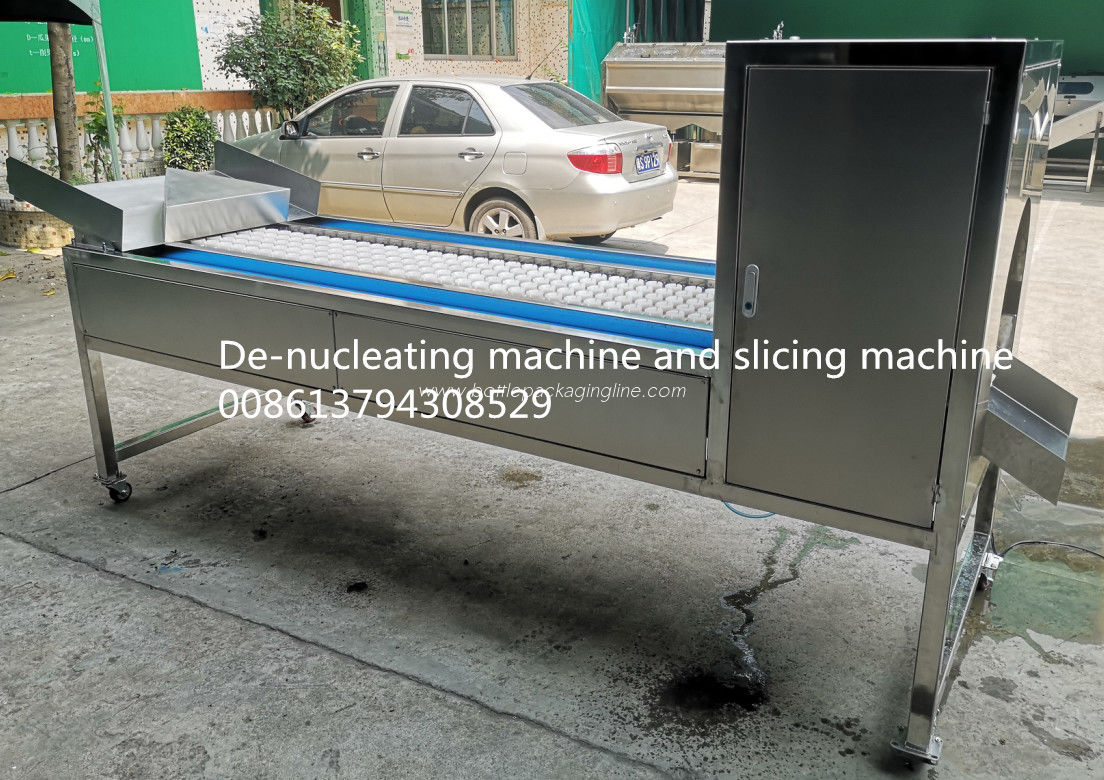

600Pcs/Min 50mm Diameter Fruit Off Core Cutting Machine

Fruit off core and cutting machine

Applicable labeling position:

      There are more than 30 kinds of fruits with a diameter of 10-40mm, such as Yuganzi, Begonia, Sha Guo, Plum, Bayberry, and Strawberry. This machine is composed of a profiling fruit holder conveyor chain, a computer, pitting-cutting petals, etc., manually put the small fruit into the fruit holder, set the speed, the machine can automatically complete the pitting, cutting, and separating operations. Action or linkage. It is the key equipment for the production of dried fruit, canned fruit and diced fruit.

Device parameters:

1. Processing capacity:10-12 pcs/sec

2. thickness:1-3mm adjustable

3. Adapt to fruit species:

   More than 30 kinds of small fruits such as Yuganzi, Begonia, Sha Guo, Plum, Bayberry, Strawberry Hawthorn, etc. 10-40mmPoke nucleus cutting flap linkage/single action

4. Adapt to the fruit diameter: Action: Cut the number of fruit petals

5. Power :1.5kW/220V-50H2 420kg

6. weight3400 × 1000 × 1000mm

7. Processing capacity: 600 pcs/min

8. Fruit diameter range: 20-50mm

9. Fruit height range: 20-50mm

10. Power: 1.5kW

11. Weight: 420kg

12. Shape: 3400×1000×1500

13. Packing: 3000×1100×1650

​     Exposed motors and other electrical appliances adopt positive pressure explosion-proof measures (cover up the box where there may be sparks or high temperature parts and blow compressed air into the cover to dilute the volatile combustible gas concentration to achieve explosion-proof function)

    Can be customized according to the actual situation of the customer.

any question, please contact with Cindy freely, 008613794308529,  36226571@qq.com, thanks
