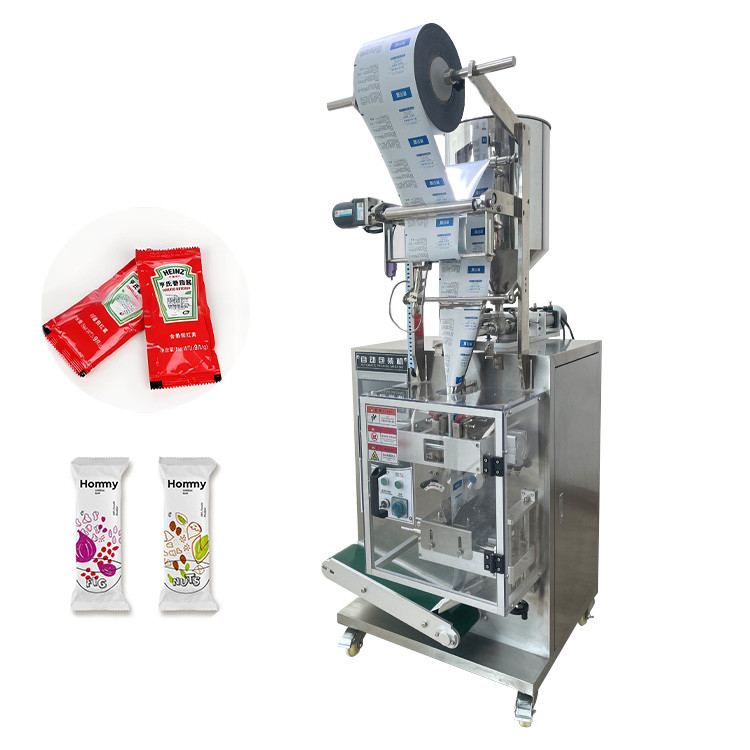

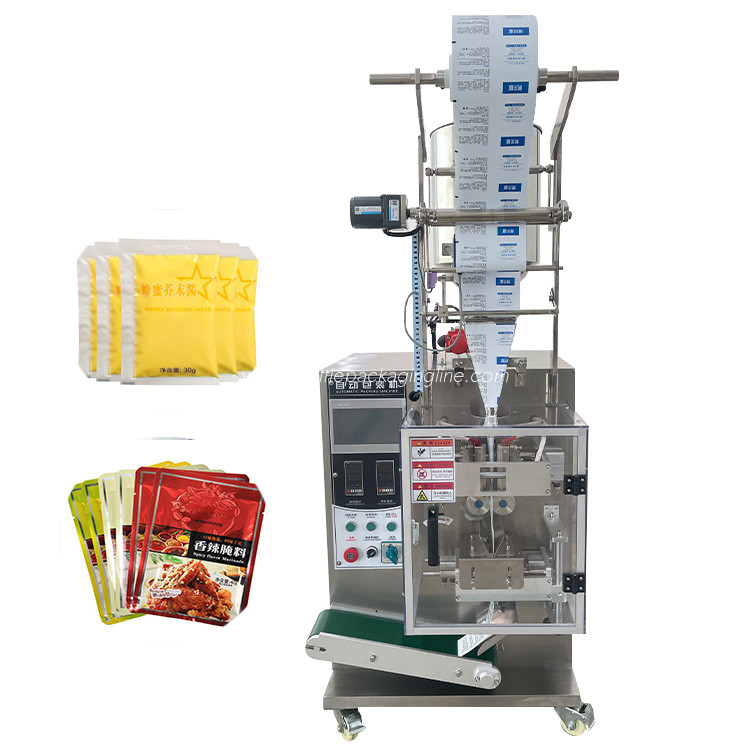

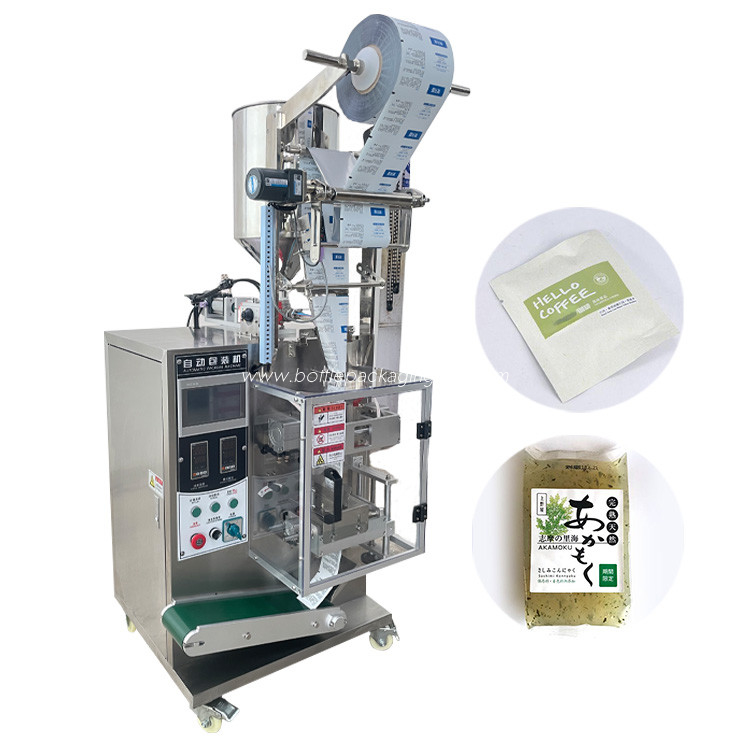

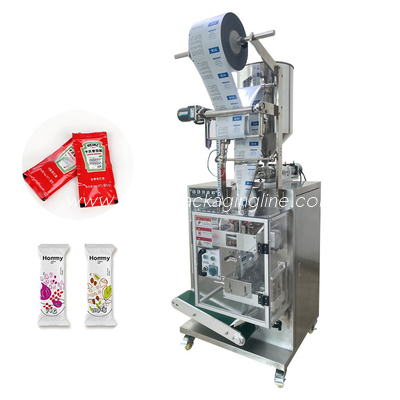

Vertical Packing Machine

A vertical packaging machine is a type of packaging equipment used in various industries to efficiently package products in bags or pouches. As the name suggests, these machines operate vertically,

with the product fed into the top of the machine and the packaging material forming around it as it moves downward through the process.

These machines typically consist of several components, including a product feeder, a film roll holder, a forming tube, a sealing mechanism, and a cutting device.

The product feeder delivers the items to be packaged into the machine, where they are measured and placed into individual pouches formed from a continuous roll of packaging material.

The forming tube shapes the pouches, while the sealing mechanism seals the edges of the pouches to enclose the product securely.

Finally, the cutting device separates the filled pouches from the roll, creating individual packages ready for distribution.

Vertical packaging machines are versatile and can be used to package a wide range of products, including food items, pharmaceuticals, hardware, and more.

They offer advantages such as high-speed packaging, precise portion control, and efficient use of packaging materials, making them essential equipment for many manufacturing and packaging operations.

Features

1. The fully automatic liquid packaging machine can automatically complete a series of automated procedures such as bag loading, bag making, filling, metering, sealing, bag cutting, counting, coding, output, etc.

2. Stainless steel body, beautiful and simple design.

3. Chinese and English touch screen control system, easy to operate.

4. Imported electrical components, efficient and stable performance.

5. The high-performance precision process sealing mold is matched with the high-quality heating tube for heating and sealing.

6. The sealing pattern is firm and clear, and the sealing pattern can be designed according to customer requirements to improve the overall image of the product.

7. Equipment can be selected according to material characteristics: vacuum suction machine,

coder, inkjet printer, finished product conveyor belt, weight detector, etc.

Packaging film width ≤220mm (can be customized according to actual size)

Bag size: length 40-150mm, width 40-110mm

Sealing type: four-sided sealing (can be customized: back sealing, three-sided sealing, special-shaped bags, etc.)

Sealing texture mesh (can be customized: straight grain, pattern, etc.)

Power supply 220V/380V/50Hz/60Hz/1350W

Machine weight: about 140KG

Packaging materials: composite film/composite paper/polyethylene, nylon/polyethylene, polyester/aluminum foil/polyethylene, tea filter paper, etc.

Machine size length, width and height: 1100*804*1890 MM

Besides the vertical packaging machine, there are also filling machine, capping machine and labeling machine of our factory.

Contact us to get more information.

Cutting knife type: flat knife (rounded knife, toothed knife can be customized)

Air consumption 0.8Mpa 0.4m3/min
