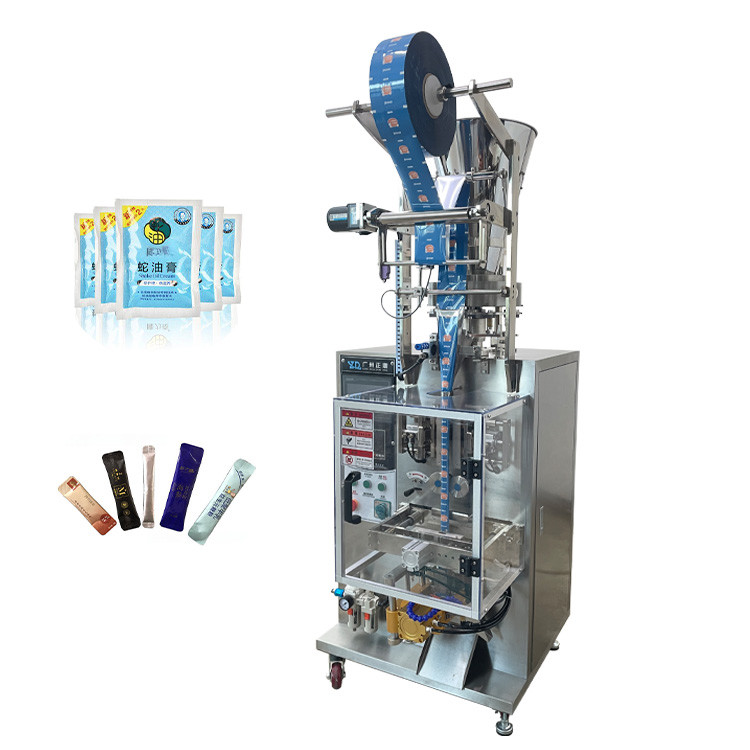

Granule Automatic Packing Machine 4 Side Sealing Granule Bag Packing Machine Candy Packing Machine

Basic Information
Place of Origin: China
Brand Name: Tengzhuo
Certification: CE Rohs
Model Number: VE001
Minimum Order Quantity: 1 pirce
Packaging Details: film+Wooden packing
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 pcs one month
Production Capacity: 30-120 Bottles/min Given Bag: Open Mouth
Bag Weight: 25 Kg & 50kg Standard Function: Given Bag Packing
Compatible Package: Open-mouth Bag Accuracy: +/- 0.2%
Pass Rate: 98% Main Function: Weighing & Packing
Sealing Method: Pneumatic / Mechanical Material Type: Granular & Powdery Materials
Packing Rate: 30-80 Bags/min Bottel Diameter: 18-100mm
Packing Speed: 40-80 Bags/min Main Performance: New Design And Bright Appearance
Small Bag: Pouches

Automatic granule packing machine

An automatic granule packing machine is a specialized industrial equipment designed to efficiently package granular materials such as grains, seeds, nuts, fertilizers, sugar, salt, and various other small particles.

These machines are commonly used in food processing plants, agricultural facilities, pharmaceutical industries, and chemical manufacturing plants.

The machine typically consists of several components, including a hopper or feeder for loading the granules, a weighing or dosing system to measure the precise amount of product for each package,

a packaging material dispenser, a sealing mechanism, and a control system to regulate the packaging process.

Here's a breakdown of the main features and functionalities of an automatic granule packing machine:

Granule Automatic Packing Machine 4 Side Sealing Granule Bag Packing Machine Candy Packing Machine 0

  1. Feeding System: Granules are fed into the machine through a hopper or feeder system, which ensures a consistent supply of material for packaging.

  2. Weighing or Dosing System: This system accurately measures the desired quantity of granules for each package. It ensures consistency in the weight or volume of product in every bag or pouch.

  3. Packaging Material Dispenser: The machine dispenses packaging materials such as pre-formed bags, pouches, or rolls of film. These materials are used to contain and seal the granules.

  4. Sealing Mechanism: Once the granules are filled into the packaging, the machine seals the bags or pouches to prevent spillage and maintain product freshness. Various sealing methods may be employed, including heat sealing, ultrasonic sealing, or mechanical sealing.

  5. Control System: The machine is equipped with a control panel or interface that allows operators to set parameters such as fill weight, packaging speed, and sealing temperature. Advanced models may feature programmable logic controllers (PLCs) for automated operation and monitoring.

  6. Safety Features: Automatic granule packing machines are equipped with safety features to prevent accidents and ensure operator protection. These may include emergency stop buttons, safety guards, and sensors to detect anomalies in the packaging process.

  7. Flexibility and Customization: Many modern granule packing machines offer flexibility in packaging formats and sizes. They can be adjusted to accommodate different types of granular products and packaging requirements, making them versatile for various industries.

  8. Granule Automatic Packing Machine 4 Side Sealing Granule Bag Packing Machine Candy Packing Machine 1
  9. Features

1. The fully automatic liquid packaging machine can automatically complete a series of automated procedures such as bag loading, bag making, filling, metering, sealing, bag cutting, counting, coding, output, etc.

2. Stainless steel body, beautiful and simple design.

3. Chinese and English touch screen control system, easy to operate.

4. Imported electrical components, efficient and stable performance.

5. The high-performance precision process sealing mold is matched with the high-quality heating tube for heating and sealing.

6. The sealing pattern is firm and clear, and the sealing pattern can be designed according to customer requirements to improve the overall image of the product.

7. Equipment can be selected according to material characteristics: vacuum suction machine,

coder, inkjet printer, finished product conveyor belt, weight detector, etc.

Packaging film width ≤220mm (can be customized according to actual size)

Bag size: length 40-150mm, width 40-110mm

Sealing type: four-sided sealing (can be customized: back sealing, three-sided sealing, special-shaped bags, etc.)

Sealing texture mesh (can be customized: straight grain, pattern, etc.)

Power supply 220V/380V/50Hz/60Hz/1350W

Machine weight: about 140KG

Packaging materials: composite film/composite paper/polyethylene, nylon/polyethylene, polyester/aluminum foil/polyethylene, tea filter paper, etc.

Machine size length, width and height: 1100*804*1890 MM

Overall, automatic granule packing machines streamline the packaging process, increase productivity, and ensure accuracy and consistency in product packaging,

contributing to improved efficiency and reduced labor costs for manufacturers.


Cutting knife type: flat knife (rounded knife, toothed knife can be customized)

Air consumption 0.8Mpa 0.4m3/min
