| Place of Origin: | China |
|---|---|
| Brand Name: | Tengzhuo |
| Certification: | CE, RoHS |
| Model Number: | SE001 |
| Minimum Order Quantity: | one piece |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Packaging Form: | Honey Spoon | Customization: | Logo / Size / Parts Brand/ Material |
|---|---|---|---|
| Packaging Type: | Plastic Cup, Paper Cup, Aluminum And Plastic Cup Box Products | Operation: | Easy Operation |
| Feature: | Automatic,PLC,Touch Screen | Size: | 1200*1200*1700 Mm |
| Sealing Speed: | About 20-25 Spoons/min | Sealing Type: | Thermal Sealing Cut |
| Automatic Grade: | Automatic | Machine Weight: | 380 Kg |
| Shrink Film: | Foil Film | Motor Power: | 2kw (380V/220V 50Hz) |
| Lead Time: | 30 Working Days | Market: | Brazil,Ecuador,France,USA |

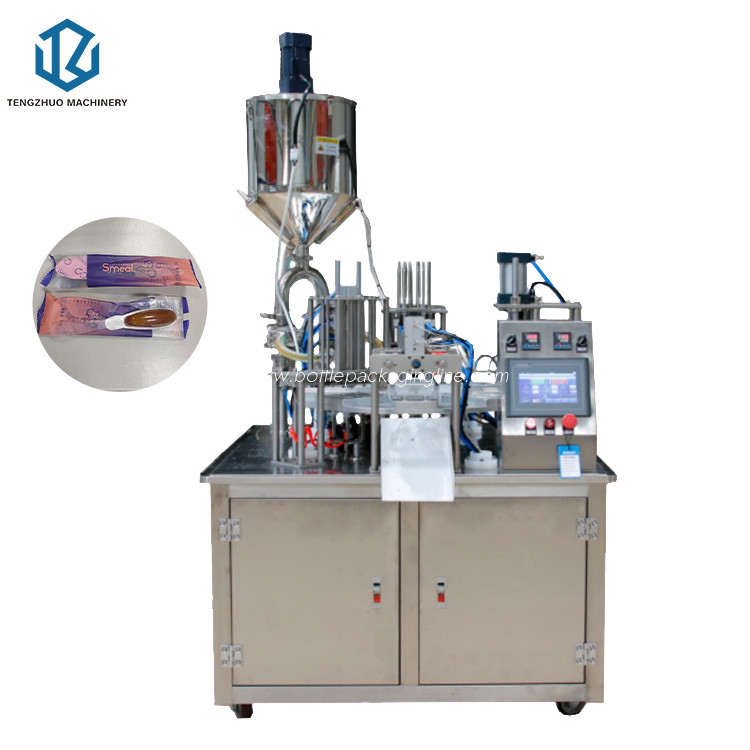

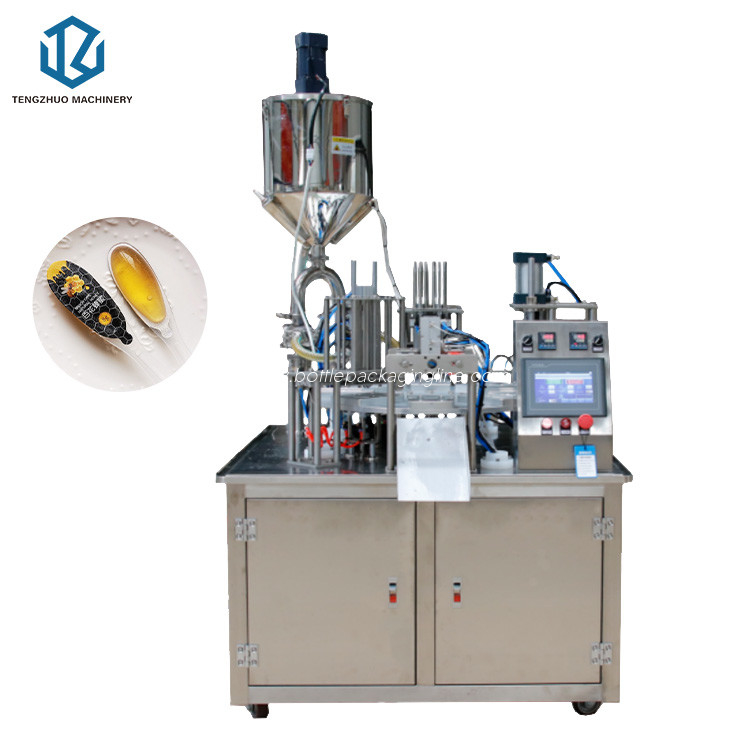

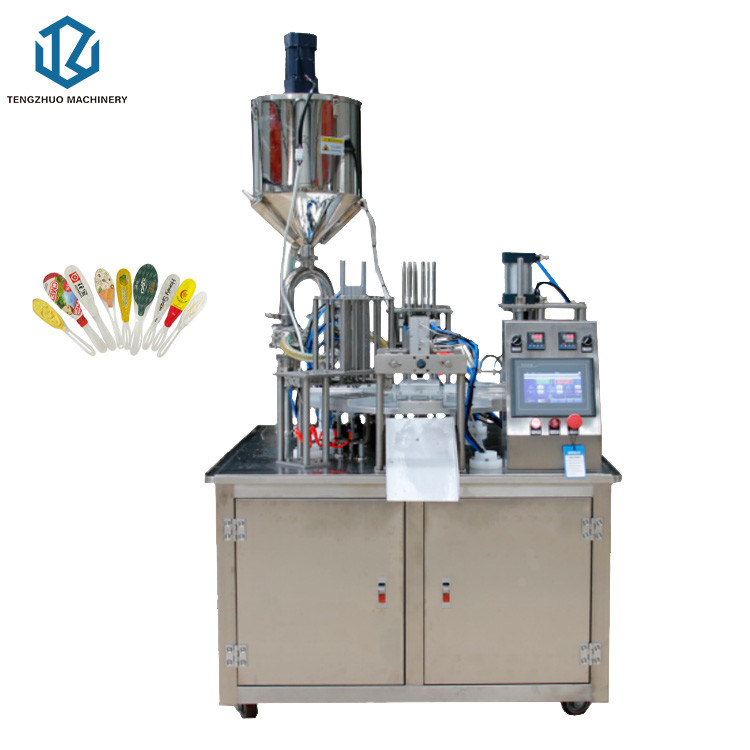

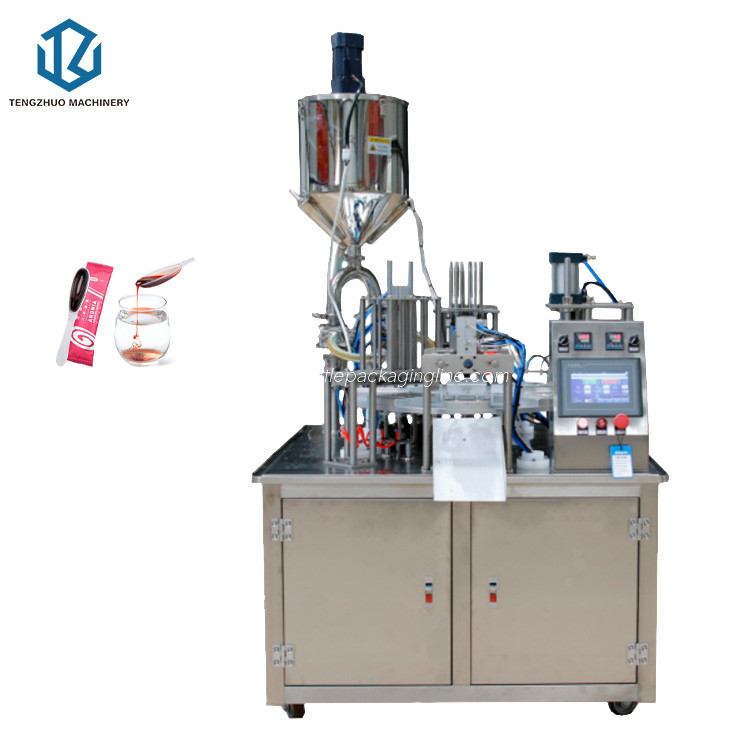

Automatic Rotary Honey Spoon Liquid filling heat sealing machine(2 spoons)(For premade foil)
Technical parameters:
| Model | HH-LFBJ-1PR |
| Packing speed |
About 20-25 spoons/min,1200-1500 spoons/hour (1 mold comes out 1 spoon) |
| Power supply | 220V/380V,50/60Hz |
| Power | 2.5kW |
| Air source | 0.5MPa-0.75 MPa |
| Air consumption | 0.45m3/min |
| Machine size | 1200*1200*1700 mm |
Machine profile:
Automatic Rotary Honey Spoon Liquid filling heat sealing machine is produced by our company, is an automatic packaging production line integrating automatic spoon/cup feeding, liquid filling, sealing and finished products discharging.The machine is made of stainless steel, which meets the sanitary requirements and is convenient for cleaning.
It is suitable for the sealing of paste, particle, powder and other products. It is also suitable for the sealing of plastic cup, paper cup, aluminum and plastic cup box products.Our series products have more than ten years of production experience.It has the advanced technology in the industry and adopts the well-known brand control system and pneumatic components from Japan, Taiwan and China. It has the characteristics of low failure rate, stable operation and long service life.
Main Functional structure of the equipment:
1.Rotary star wheel moving & positioning system : including drive motor, reducer,rotary star wheel moving & positioning device. The Aluminum star wheel support the smooth operation of the spoons/cups;
2.Automatic spoons/cups dropping system : It is mainly completed by pneumatic devices, and the system is composed of pneumatic components,the cup holder, positioning and dividing cup device and other components;Synchronously controlled by sending signals when the template stops action complete.Stable and efficient.
3. Automatic filling system: Adopt step motor driven piston filling system, high filling accuracy, filling quantity can be adjusted;
4. Automatic film release system : It adopts the starting device to automatically drop the film and release the film accurately.
5. Aluminum/PE film Sealing system : It includes heating and constant temperature control parts, temperature sensor, sealing device, heat sealing plate and heat sealing head, and pneumatic sealing motion execution parts.
6. Automatic spoons/cups discharge system : The spoons/cups are sucked out by the suction cup,& sent out automatically.
7.Electrical control system: Control circuit, power supply circuit, electrical protection, safety
Emergency stop device and other components.
8.Pneumatic system: Pneumatic triplet, electric control reversing valve, air path protection, air path and joint and other components;
9.Equipment material: The frame adopts stainless steel structure, and the external plate of the equipment is stainless steel plate.
The template is made of high quality aluminum.
