| Place of Origin: | China |
|---|---|
| Brand Name: | Tengzhuo |
| Certification: | CE, RoHS |
| Model Number: | SE003 |
| Minimum Order Quantity: | one piece |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Packaging Form: | Cup Box | Customization: | Logo / Size / Parts Brand/ Material |
|---|---|---|---|
| Packaging Type: | Plastic Cup, Paper Cup, Aluminum And Plastic Cup Box Products | Operation: | Easy Operation |
| Feature: | Automatic,PLC,Touch Screen | Size: | 2200*1030*2030 Mm |
| Sealing Speed: | 25～30 Bottles/min | Sealing Type: | Thermal Sealing Cut |
| Automatic Grade: | Automatic | Machine Weight: | 430 Kg |
| Shrink Film: | Foil Film | Motor Power: | 1.4 KW |
| Lead Time: | 30 Working Days | Market: | Brazil,Ecuador,France,USA |

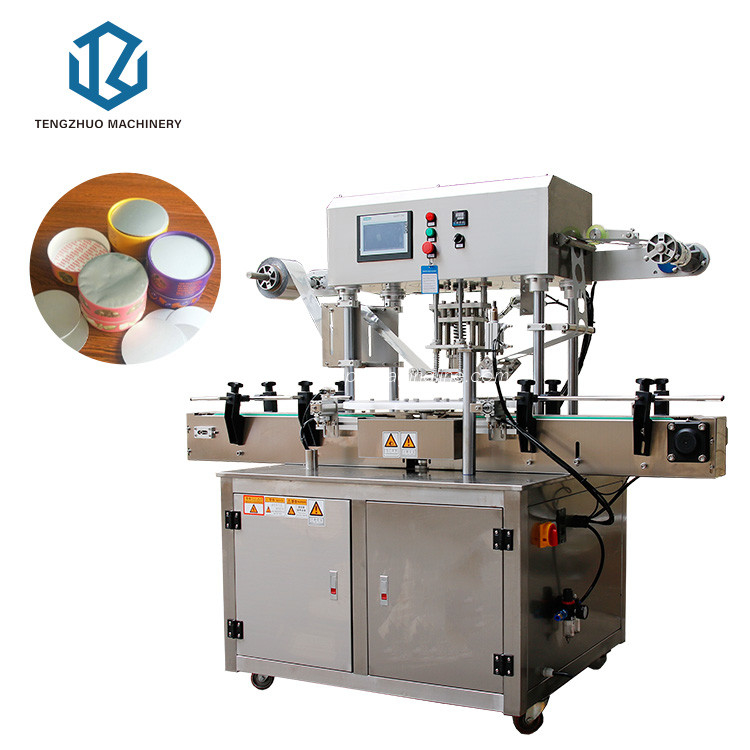

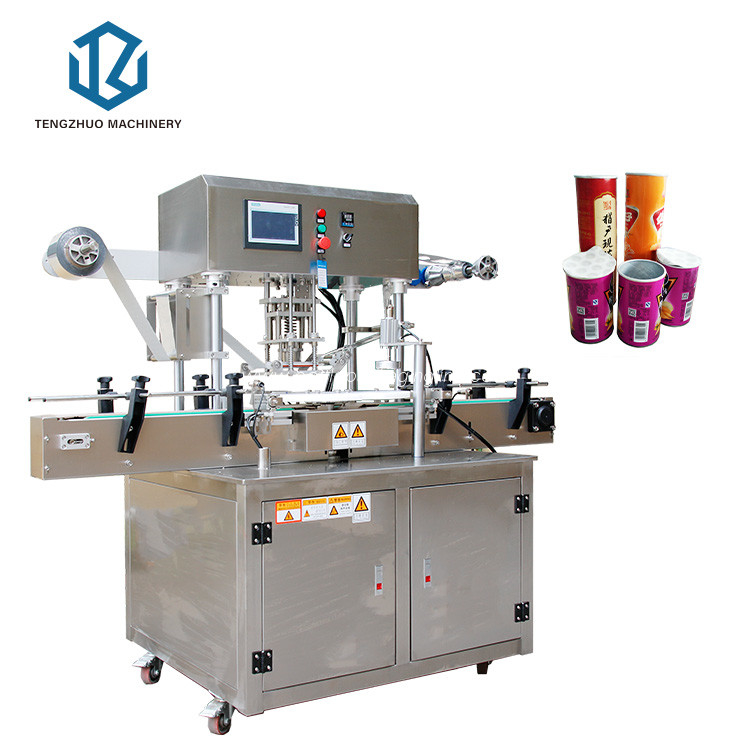

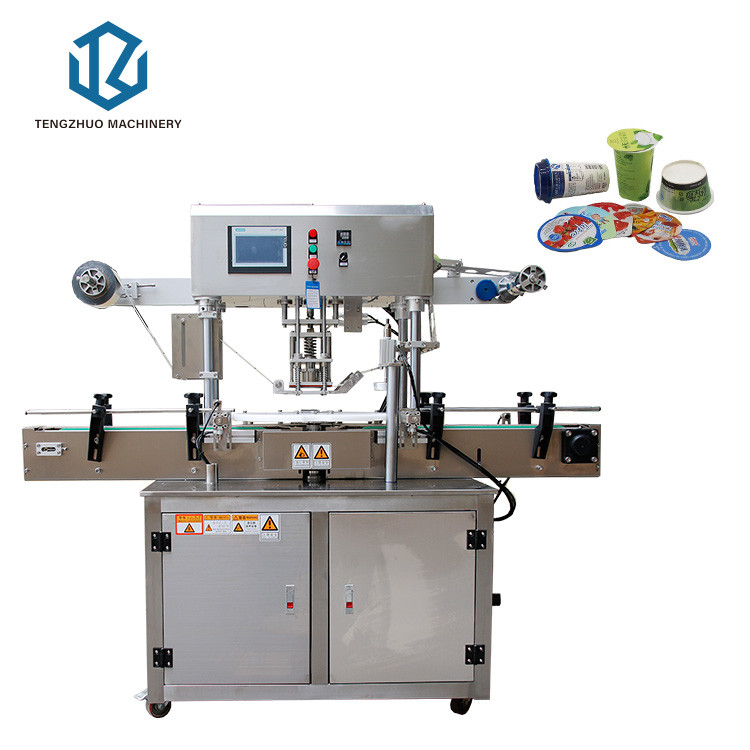

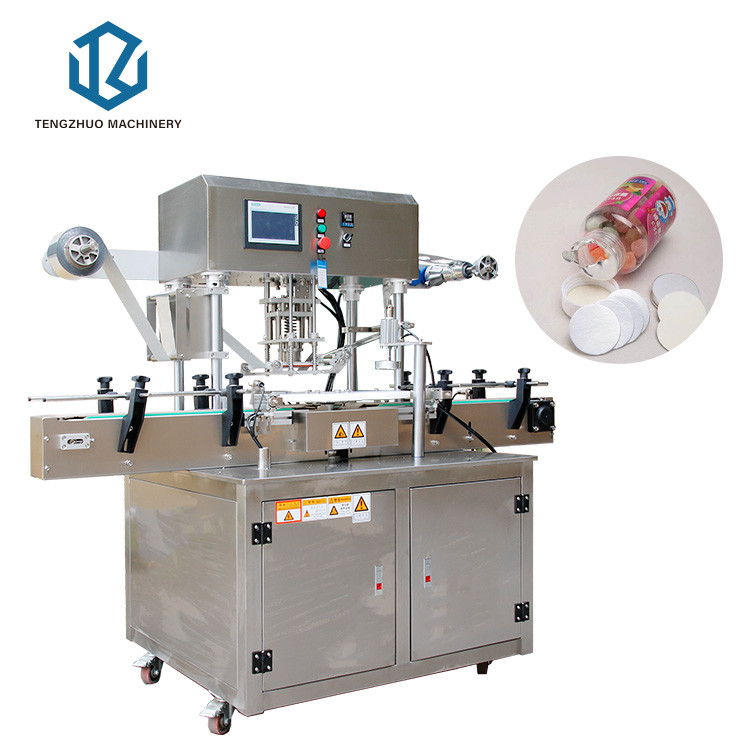

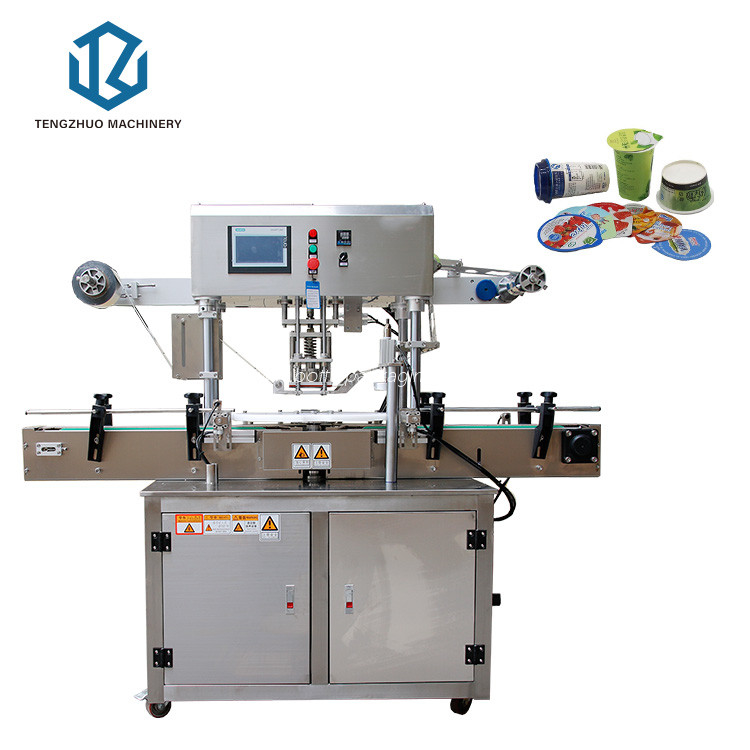

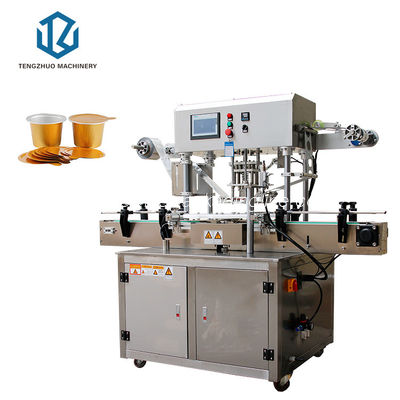

Automatic Rotary Single Head Roll Film Heat Sealing Machine (Contain filling nitrogen function )
1. Main machine appearance main materials are SUS304 stainless steel and T6 hard aluminum alloy;
2. Bottle diameter:50-100mm(only limit at one bottle diameter, need to replace sealing head mold for different bottle diameter,replace time is around 30 mins);
3. Bottle height: 60-200mm adjustable(can customize for special height);
4. Suitable for bottle and cup: plastic bottle or cup, tin can, aluminum can, paper can, paper cup, glass bottle or cup
5.Bottle requirements: hard bottle body, bottle mouth is smooth;
6. Sealing speed: about 20~25 cans/min(Speed will be different according to different bottles size & roll film type);
7. Aluminum foil requirement: Aluminum foil materials should be corresponding to the can materials(For example: PET material can use the PET film, PE material can use PE film), aluminum foil thickness: 0.1-0.4mm.
8. Rated voltage: Single phase AC220V 50Hz, Conveyor motor power 200W, film retrieve motor power 25W,2 pcs heating head power 400W, star wheel power 450W,total power 1475W;
9. Machine size:2200*1030*2030mm(with 2.2 meter conveyor), Polywood case packing size: 190x120x214cm 4.88cbm
10. Net weight:350KG, Gross weight :430KG;
11. Seal time 1.2-2s, temperature set at 180-210℃;
12. Height of conveyor distant to ground is 900mm(+50mm), conveyor belt width:114mm;
13. This machine need additionally configure air compressor, the minimum air source pressure required 0.6MPa.
14.Contain filling nitrogen function.
