| Place of Origin: | China |
|---|---|
| Brand Name: | Tengzhuo |
| Certification: | CE, RoHS |
| Model Number: | SE006 |
| Minimum Order Quantity: | one piece |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Packaging Form: | Cup Box | Customization: | Logo / Size / Parts Brand/ Material |
|---|---|---|---|
| Packaging Type: | Plastic Cup, Paper Cup, Aluminum And Plastic Cup Box Products | Operation: | Easy Operation |
| Feature: | Automatic,PLC,Touch Screen | Size: | 2800*1030*1700 Mm |
| Sealing Speed: | About 30~35 Cans/min | Suitable For Cup Height: | 40-200 Mm(can Be Customized） |
| Bottle Height: | 50-200 Mm Adjustable | Machine Weight: | 480 Kg |
| Shrink Film: | Foil Film | Motor Power: | 2.3 KW |
| Lead Time: | 30 Working Days | Market: | Brazil,Ecuador,France,USA |

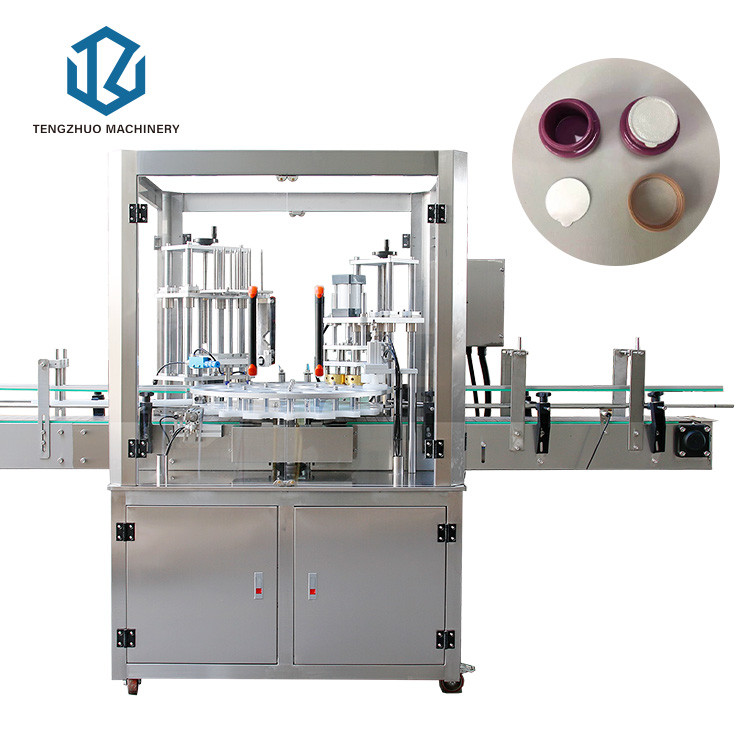

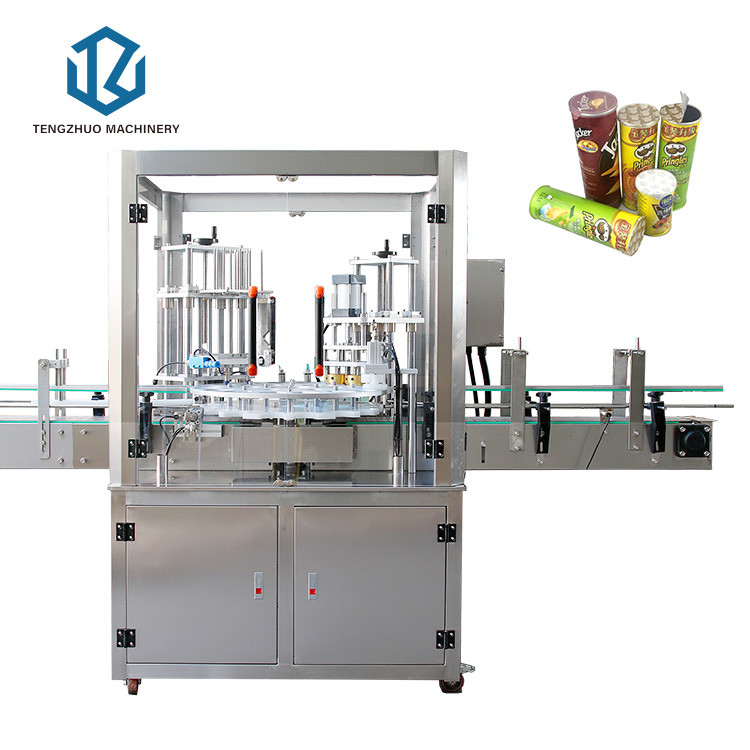

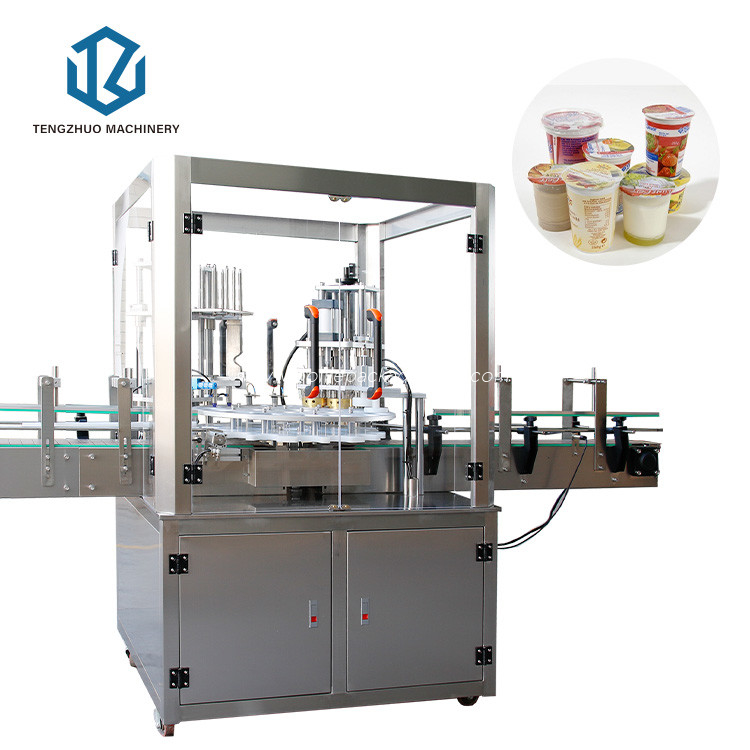

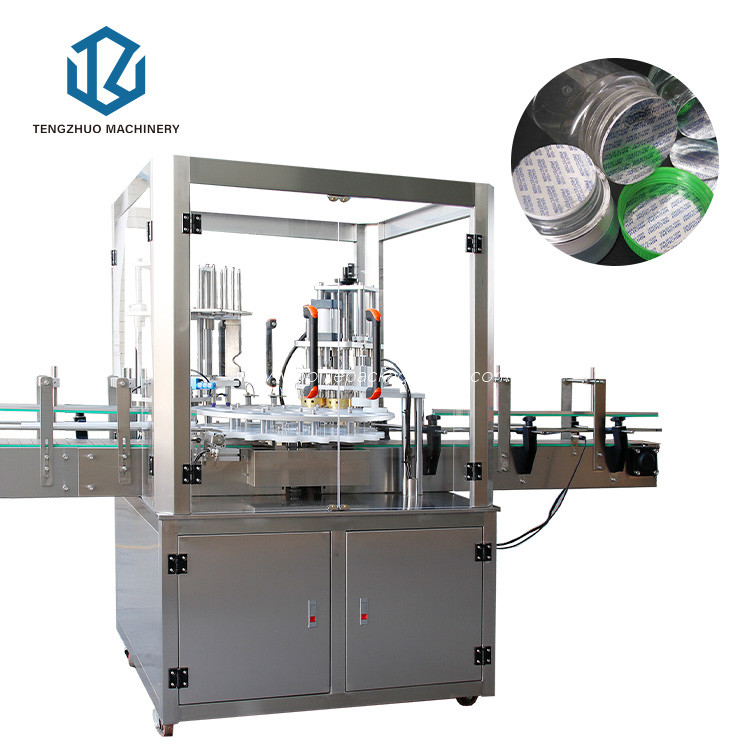

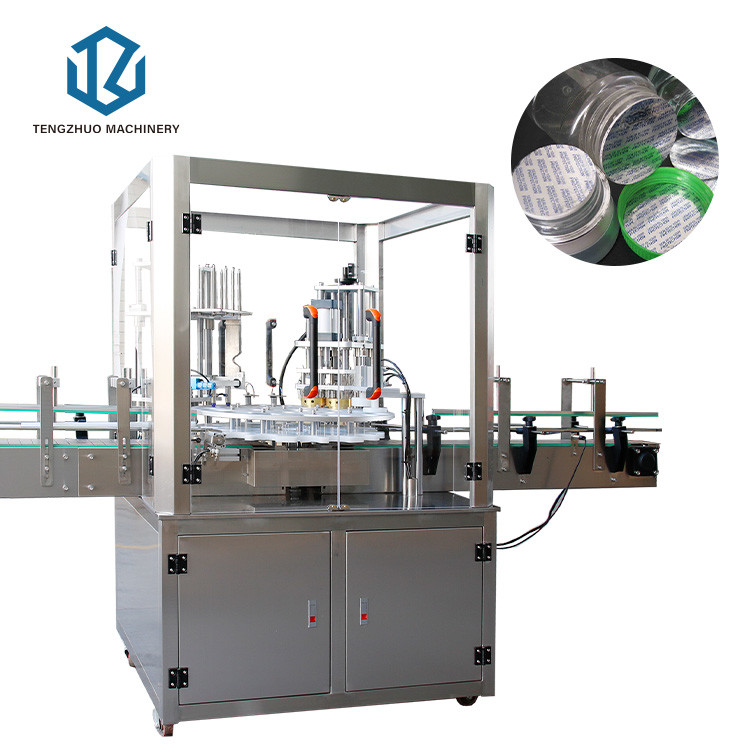

Automatic rotary double heads premade film heat sealing machine
1. Main machine appearance main materials are SUS304 stainless steel and T6 hard aluminum alloy;
2.Cup/Bottle diameter:50-100mm(only limit at one bottle diameter, need to replace star wheel & sealing head mold for different bottle diameter,replace time is around 30 mins);
3. Bottle height: 50-200mm adjustable(can customize for special height);
4. Suitable for bottle and cup: plastic bottle or cup, tin can, aluminum can, paper can, paper cup, glass bottle or cup
5. Bottle requirements: hard bottle body, bottle mouth is smooth;
6. Sealing head:2 heads
7.Sealing speed: about 30~35 cans/min(Speed will be different according to different bottles size & premade film type);
8. Aluminum foil requirement: Aluminum foil materials should be corresponding to the can materials(For example: PET material can use the PET film, PE material can use PE film),
aluminum foil thickness: 0.1-0.4mm.
9. Automatic film release system: It adopts the starting device to automatically drop the film and release the film accurately.
10. Aluminum/PE film Sealing system: It includes heating and constant temperature control parts, temperature sensor, sealing device, heat sealing plate and heat sealing head,
and pneumatic sealing motion execution parts.
11. Rated voltage: Single phase AC220V 50Hz, Conveyor motor power 200W, heating head power 800W, star wheel power 1300W,Total power:about 2300W;
12. Machine size:2800*1030*1700mm, Poly wood case packing size: 2250*1200*1940mm;
13. Net weight:380KG, Gross weight :480KG;
14. Seal time 1.2-2s, temperature set at 180-210℃;
15. Height of conveyor distant to ground is 900mm(+50mm), conveyor belt width:114mm;
16. This machine need additionally configure air compressor, the minimum air source pressure required 0.6MPa.
