Industrial Sealing Machine Form Fill Seal Machine Sealing And Packing Production Line Machine

Basic Information
Place of Origin: China
Brand Name: Tengzhuo
Certification: CE, RoHS
Model Number: SE004
Minimum Order Quantity: one piece
Delivery Time: 35 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Form: Cup Box Customization: Logo / Size / Parts Brand/ Material
Packaging Type: Plastic Cup, Paper Cup, Aluminum And Plastic Cup Box Products Operation: Easy Operation
Feature: Automatic,PLC,Touch Screen Size: 1900*1000*1700 Mm
Sealing Speed: About 20 Cups/min(1200 Cups/hour) Suitable For Cup Height: 40-200 Mm(can Be Customized)
Automatic Grade: Automatic Machine Weight: 400 Kg
Shrink Film: Foil Film Motor Power: 2 KW
Lead Time: 30 Working Days Market: Brazil,Ecuador,France,USA
Sealing Speed: About 30~35 Cans/min

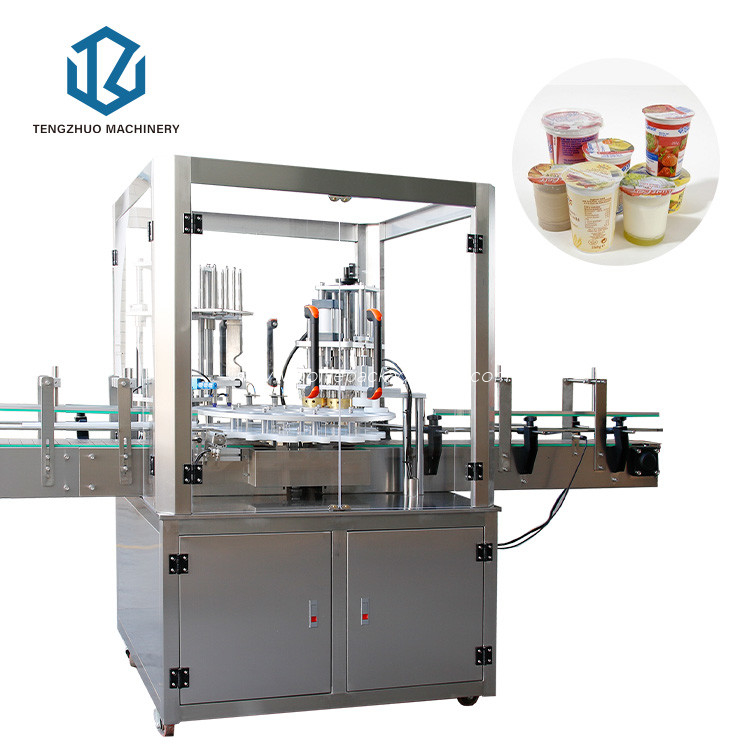

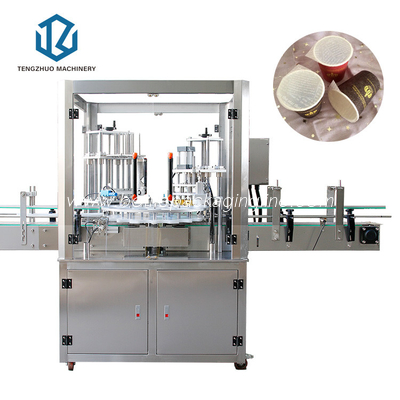

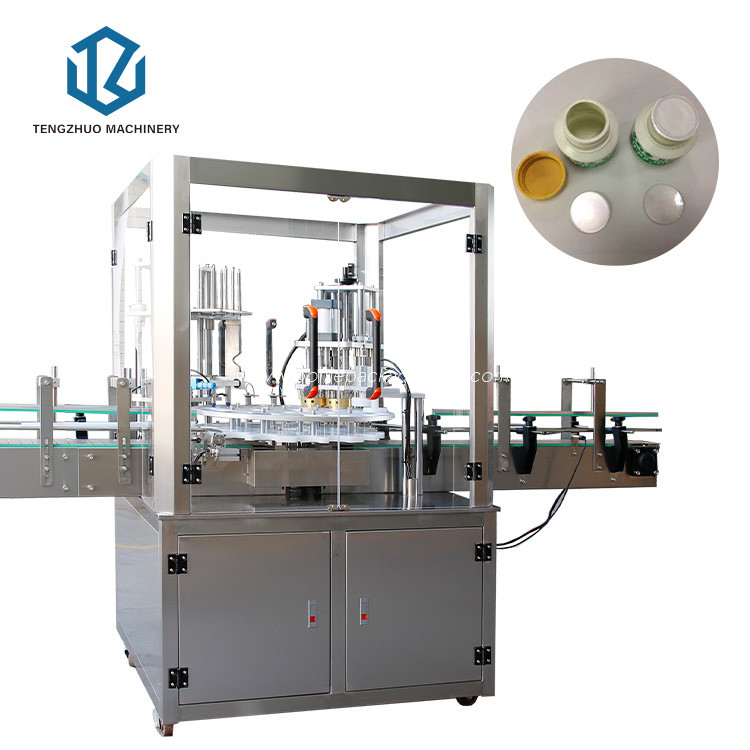

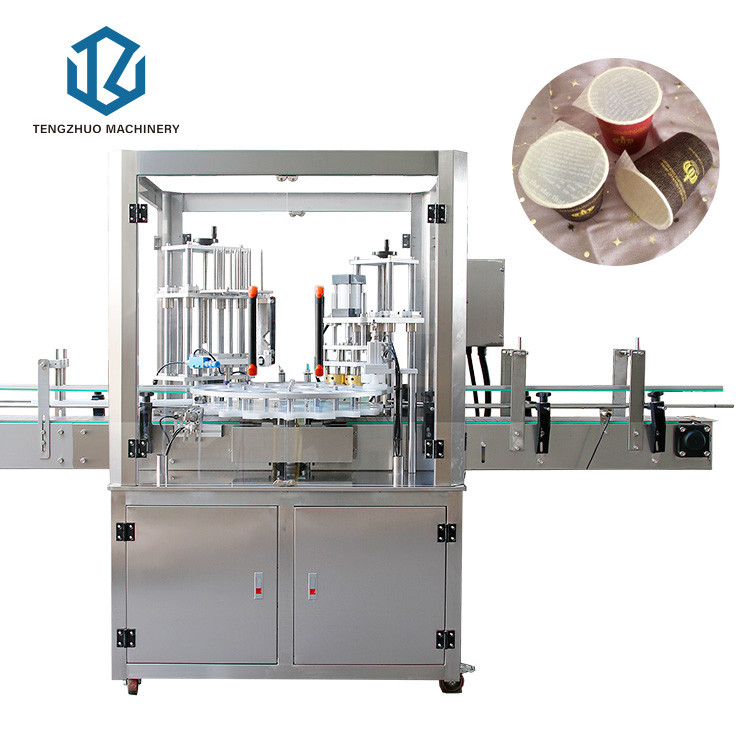

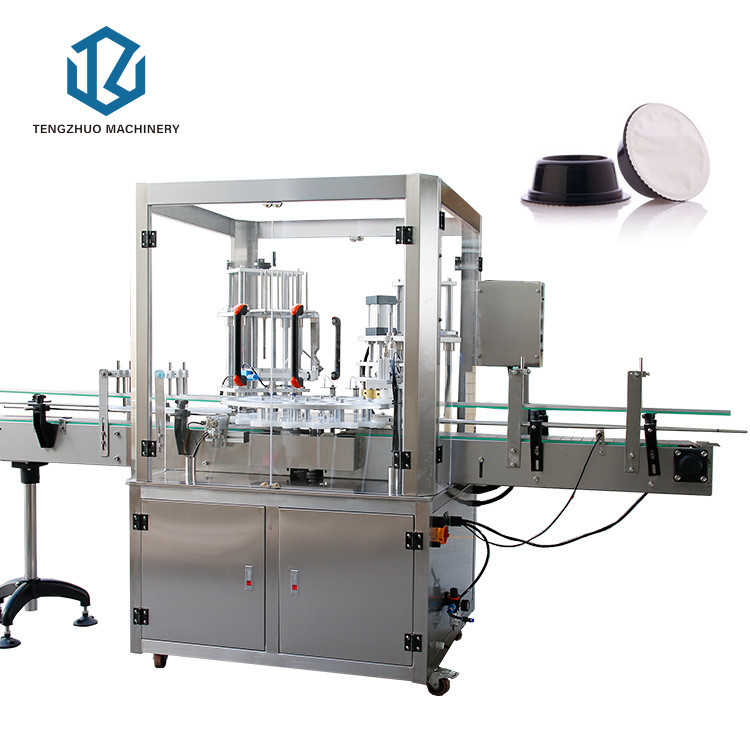

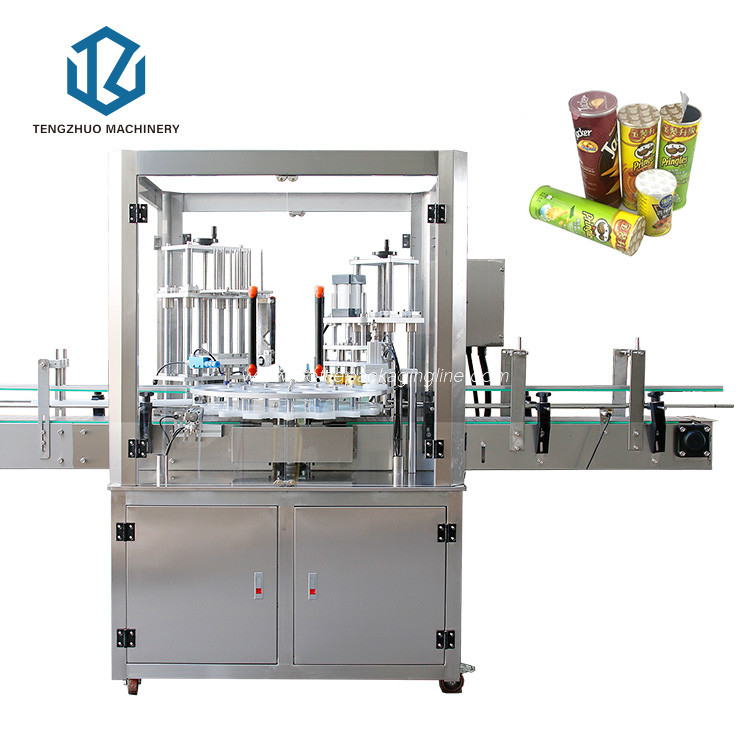

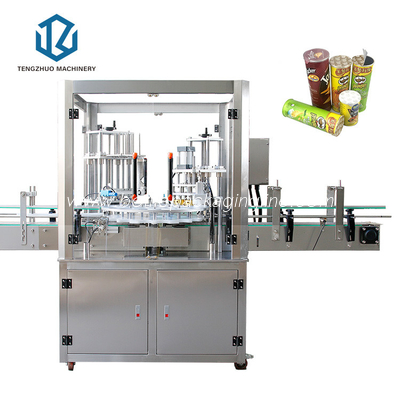

Rotary Premade foil heat sealing machine(single head)



The Rotary Premade Foil Heat Sealing Machine is produced by our company, is an automatic packaging production line integrating automatic cup feeding, foil heat sealing and cup discharging.


The machine is made of stainless steel, which meets the sanitary requirements and is convenient for cleaning.

It is suitable for the sealing of paste, particle, powder and other products. It is also suitable for the sealing of plastic cup, paper cup,

aluminum and plastic cup box products.

Our series products have more than ten years of production experience.It has the advanced technology in the industry and adopts the well-known

brand control system and pneumatic components from Japan, Taiwan and China.


It has the characteristics of low failure rate, stable operation and long service life.


Industrial Sealing Machine Form Fill Seal Machine Sealing And Packing Production Line Machine 0

1.Rotary star wheel moving & positioning system : including drive motor, reducer,rotary star wheel moving & positioning device.

The Aluminum star wheel support the smooth operation of the cups;

2.Automatic cup dropping system : It is mainly completed by pneumatic devices, and the system is composed of pneumatic components,the cup holder, positioning and dividing cup device and other components;

Synchronously controlled by sending signals when the template stops action complete.Stable and efficient.

3. Automatic film release system : It adopts the starting device to automatically drop the film and release the film accurately.

4. Aluminum/PE film Sealing system : It includes heating and constant temperature control parts, temperature sensor, sealing device, heat sealing plate and heat sealing head, and pneumatic sealing motion execution parts.

5. Electrical control system: Control circuit, power supply circuit, electrical protection, safety emergency stop device and other components.

6.Pneumatic system: Pneumatic triplet, electric control reversing valve, air path protection, air path and joint and other components;

7.Equipment material: The frame adopts stainless steel structure, and the external plate of the equipment is stainless steel plate.

The template is made of high quality aluminum.


Industrial Sealing Machine Form Fill Seal Machine Sealing And Packing Production Line Machine 1



Packing speed

About 20 cups/min(1200 cups/hour)

(1 mold comes out 1 cup)

Suitable for cup Diameter

Dia 50-130mm(can be customized)

(Need to change Star wheel+heat sealing+premade foil storage shelf mold if Diameter is different)

Suitable for cup Height

40-200mm(can be customized)

Power supply




Air source

0.5MPa-0.75 MPa

Air consumption


Machine size

1900*1000*1700 mm

Machine weight

About 400KGS
